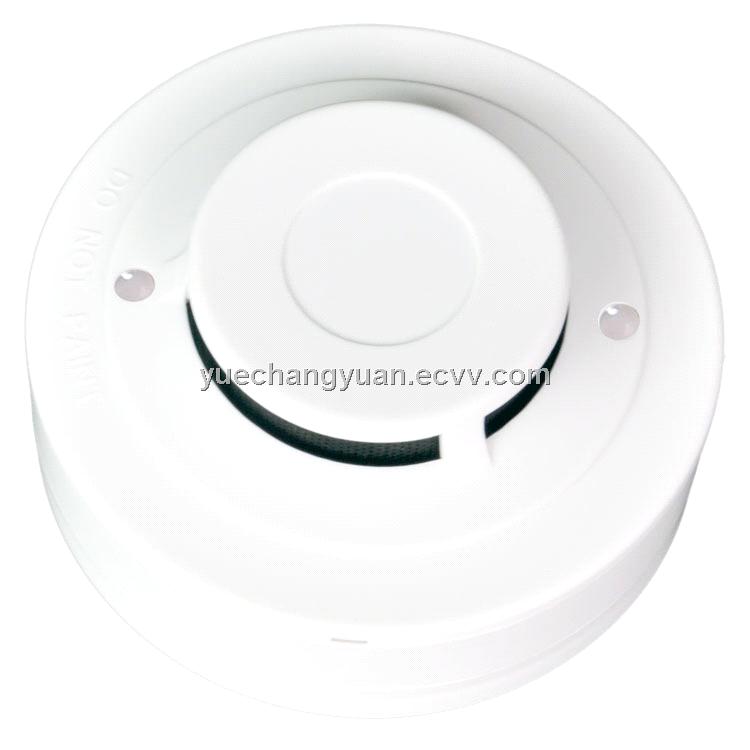

2-Wire Conventional Photoelectric Smoke Detector Smoke Sensor Alarm for Fire Fighting System
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 585*350*255mm |
Quick Details
- Brand Name: zoanco
- Sensor: photoelectric
- Size: 99x48mm
- ITEM: conventional smoke detector
- power: 9 to 28 VDC Volts Non-polarized
- Model Number: 102c
- Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
- Standby Current: <60uA@24VDC
- Maximum Alarm Current (LED on: <30mA@24VDC
- Smoke Alarm Sensitivity: 0.15-0.3dB/m
Specifications
Skype firealarm87 /wechat 15220176087
1. GENERAL DESCRIPTION
1. GENERAL DESCRIPTION
the detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. this detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
Two LEDs on each detector provide local 360 visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
the detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
2. SPECIFICATIONS
Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
Standby Current: 60A@24VDC
Maximum Alarm Current (LED on): 30mA@24VDC
(1K Ohm current-limiting resistance)
Operating Humidity Range: 95%RH(40C2C) Relative Humidity, Non-condensing
Operating Temperature Range: -10C to 50C (14F to 122F)
Smoke Alarm Sensitivity: 0.15-0.3dB/m
Temperature Alarm Sensitivity: 57C (135F) A1R (only for with heat sensor)
Height: 48 mm installed in Base
Diameter: 99 mm
WARNING
to PREVENT DETECTOR CONTAMINATION and SUBSEQUENT WARRANTY CANCELLATION, the DETECTOR MUST REMAIN COVERED UNTIL the AREA IS CLEAN and DUST FREE.
3. INSTALLATION
NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.

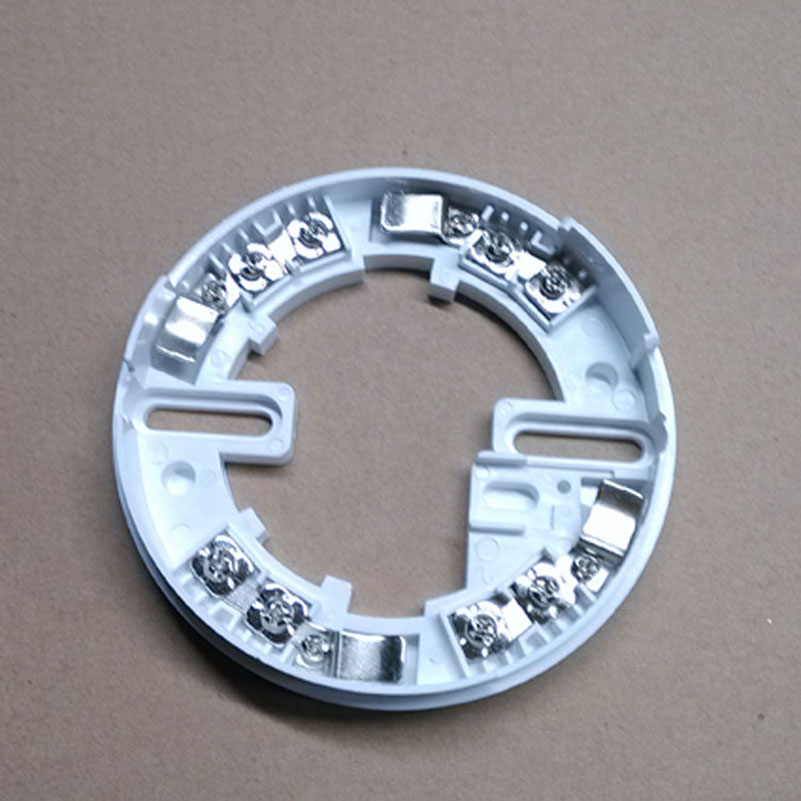

INSTALL the DETECTOR BASE
1. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance with the fire standard in your country.
2. Attach mounting base to ceiling or wall. the base of the detector can be mounted directly onto an electrical junction box such as an octagonal (75mm, 90mm or 100mm), a round (75mm), or a square (100mm) box without using any type of mechanical adapter.
3. Position all wires flat against terminals, and fasten the wires on the terminals, See Figure 1.
4. Terminals functions description:
Terminal 2: IN+( Zone Input+)
Terminal 5: IN- (Zone Input- )
Terminal 6: IN+( Zone Output+)
Terminal 5: IN- (Zone Output- )
Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-2-wire, Conventional Smoke Detector;Fire Alarm System

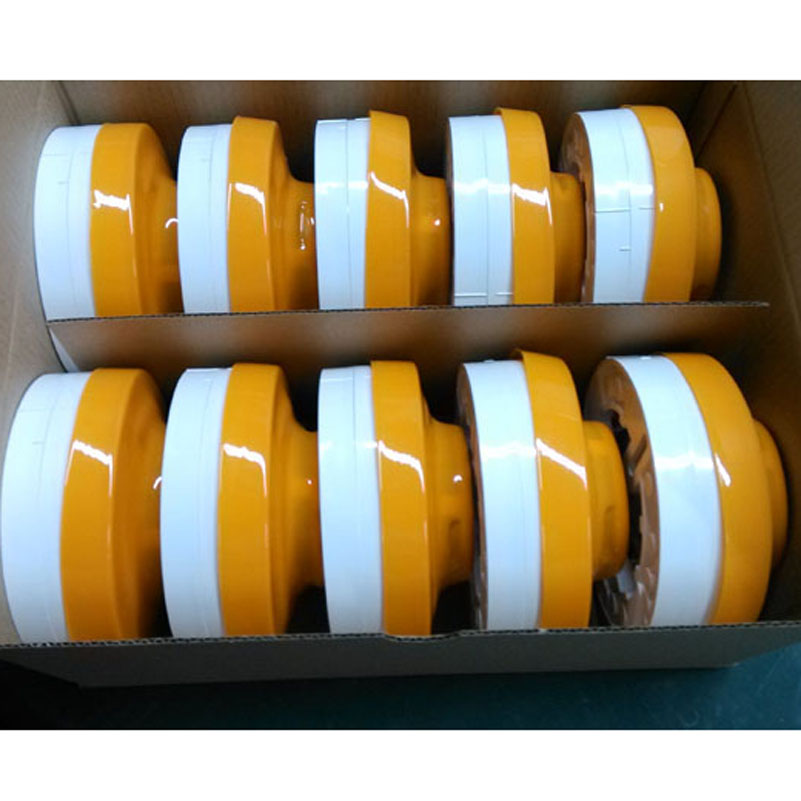

Package Size: 545x425x260mm, 100 pcs/1 carton. Gross Weight: 13.5Kg/1 carton. Net Weight: 120g/1 pcs
