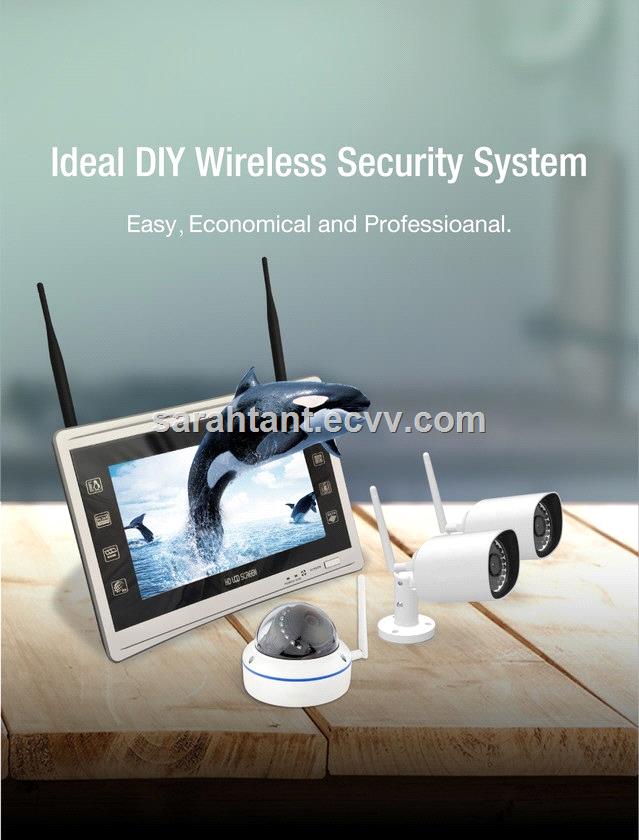

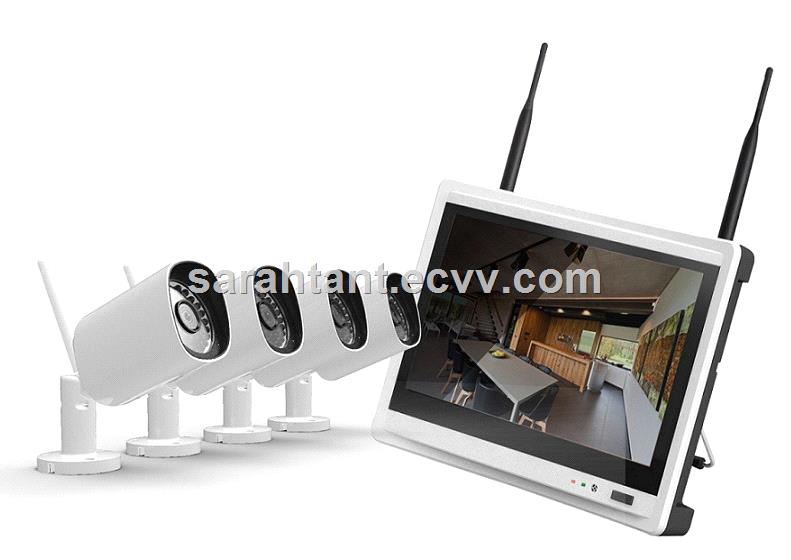

Wireless Home Security System 4CH WiFi IP Cameras NVR Kit, NVR with 11 Inch HD Screen
| FOB Price: | 245.00 - 255.00 USD/Set |
|---|---|
| Supply Ability: | 50,000 Set(s) per Month |
| Shipping: | Yantian port Shenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1pc/polybag, color box |
Quick Details
- Special Features: Home security
- Technology: NetWork
- Sensor: CMOS
- Type: Digital Camera
- Brand Name: WIFI IP Cameras NVR with Screen
- Style: Bullet Camera
- Model Number: DR-WKB20D
Specifications
Wireless Home Security System 4CH 1080P High Definition WiFi IP Cameras NVR with 11 Inch HD Screen
1080P/960P/720P Wireless Network Video Recorde
Built-in WiFi module with high-performance and high stability
Free Cloud Service, easy to achieve a variety of network
Automatically Connection between NVR and IPC
Support video preview/recording/playback/backup
Support the mixed use of wireless and wire, support different scene
Support remote control for Android/IOS/PC
Mobile surveillance supported, Including different kinds of mobile phones
1HDD Max 4TB per HDD
| Specification | ||||
| Model NO. | DR-W7604D | |||
| System | ||||
| Operating system | Embedded Linux | |||
| System resources | Simultaneously multi-channel real-time Recording, playback, network operation, USB backup | |||
| Video | ||||
| Decode | H.264(High Profile) | |||
| Monitor quality | VGA, HDMI: HD | |||
| Video input | D1/960H/720P/960P/1080P | |||
| HDMI Output | 1CH, Resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080 | |||
| VGA Output | 1CH, Resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080 | |||
| Playback quality | 4CH | |||
| Encode ability | 4*1080P | |||
| Multi-mode input | Network: 4*1080P; 4*720P | |||
| Audio | ||||
| Audio interface | 3.5mm headphone jack(Optional) | |||
| Record & Playback | ||||
| Record mode | Manual>alarm>motion Detection>timing | |||
| Local Playback | 4CH(local input mode) | |||
| Search mode | Search by time, calendar, event, channel | |||
| Storage & backup | ||||
| Storage | 1 SATA | |||
| Video storage | 4TB for Each HDD | |||
| External Interface | ||||
| Audio interface | 3.5mm headphone jack(Optional) | |||
| Video output | 1CH VGA, 1CH HDMI | |||
| Network interface | 1 RJ45 10M/100M self-adaption, 2 WiFi connector | |||
| PTZ control | - | |||
| USB | 2* USB 2.0 ports | |||
| HDD | 1*SATA ports | |||
| ELECTRICAL | ||||
| Power Consumption | <15W (without HDD) | |||
| Adapter Requirement | DC12V 3A | |||
| General | ||||
| Working Temperature | -10℃ ~ +50℃ | |||
| Storage Temperature | 0℃ ~ +55℃ | |||
| Working Humidity | Less than 90% (no condensation) | |||
| Working Environment | 86kpa—106kpa | |||
| Dimensions | 300*228*48mm | |||
| Net Weight | 1.75kg | |||
| Gross Weight | 2.50kg | |||
