>Products Catalog > CCTV Surveillance School Bus/Bus Cameras > Security & Surveillance Metal Mini Dome CCTV Cameras for Car/Bus/School Bus

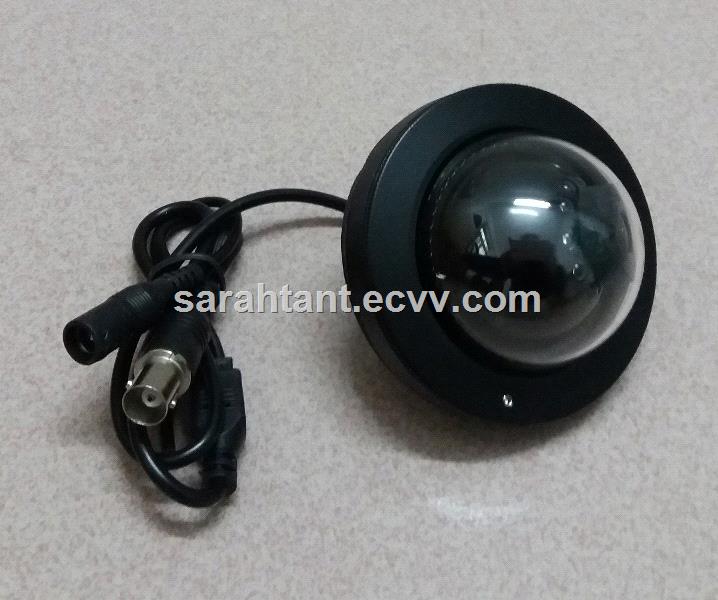

Security & Surveillance Metal Mini Dome CCTV Cameras for Car/Bus/School Bus
| FOB Price: | 40.00 - 45.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Shipping: | 15 working days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1pc/polybag, color box |
Quick Details
- Special Features: Vandal-proof
- Technology: Infrared
- Sensor: CCD
- Style: Dome Camera
- Type: Analog Camera
- Model Number: DR-MD5BR60036U
- Usage: for bus security use
- IP 67: Yes
- Audio output: Yes
Specifications
Best Video Quality 600TVL CCTV Security & Surveillance Cameras for School Bus/Bus/Car/Train, IR Day/Night Metal IP67 Waterproof CCTV Mini Dome Cameras, White Housing Available, Audio for Optional DR-MD5BR60036U
Features:
l Metal-cased IP67 weatherproof micro dome with fixed lens
l Low power consumption
l Easy installation on ceiling or wall, surface or flush mount
l 10 Infrared LEDs
l Audio for optional
Model
DR-MD5BR60036U
Pick up Device
1/3" Sony 639CCD + NextChip 2090 DSP
TV System
PAL/ NTSC
Picture Elements
752Hx582V
Horizontal Resolution
600TVL
Sensitivity
0 Lux at F1.2 (LED On)
Scanning System
625TVL/2:1 Interlace
Synchronization
Internal
S/N Ratio
More Than 50 dB, (AGC Off)
IR LED
10 LEDs with 850nm
Infrared range
3 Meter
Auto Gain Control
Auto
White Balance
Auto
Electronic Shutter
Auto
Back Light Compensation
Auto
Mirror
Optional
Video Output
1 Vp-p, 75ΩComposite
Audio
Available
Gamma Ratio
0.45
Lens
Standard f3.6mm Fixed Iris Lens
Lens Mount
M12XP0.5mm Thread
Horizontal Angle of View
+/-95 degree
Pan Adjusting
+/-180 Degree
Tilt Adjusting
0-62 Degree
Power Supply
12V DC ±10%
Power Consumption
210mA
Dimensions (? X H)
77 x 60.3 mm
Net Weight
200 g
Weatherproof
IP67
Operating Temperature
-10°C to +50°C
