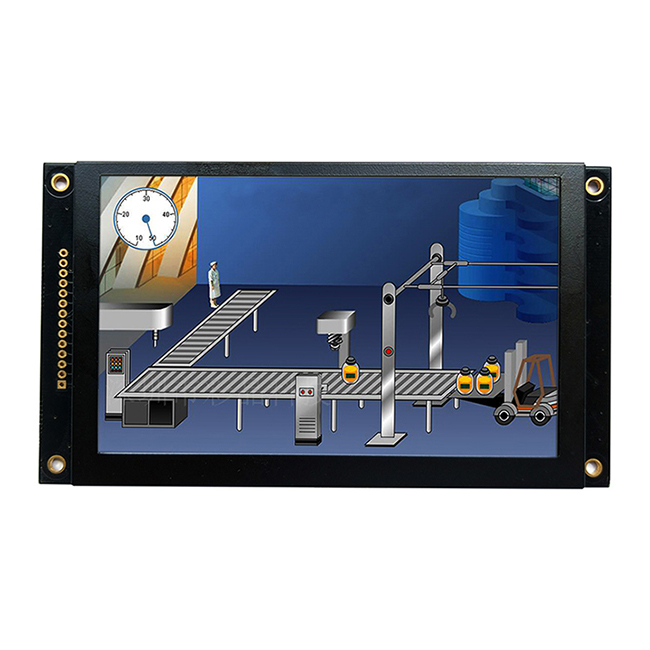

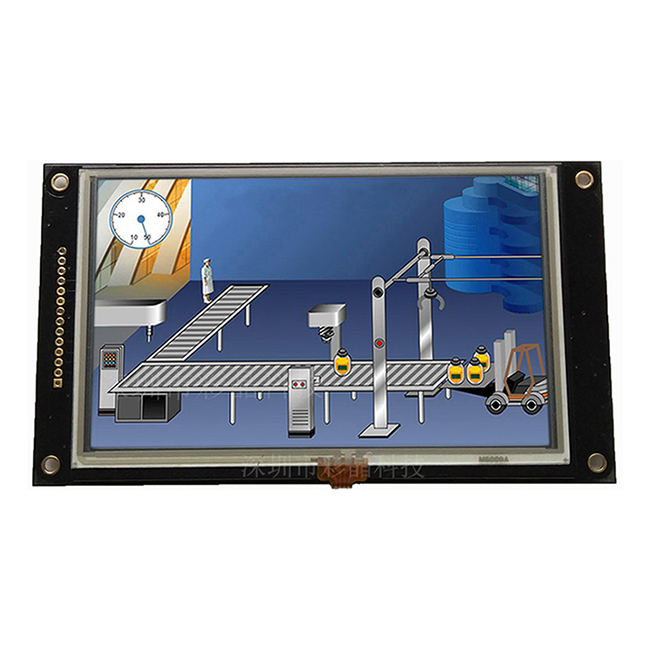

Intelligent 5 Inch 800x480 TFT LCD Panel Display Module with Touch Screen for Industrial Hmi Control
| Supply Ability: | 3,000 Piece(s) per Day |
|---|---|
| Shipping: | fob |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | FOAM |
Quick Details
- Type: TFT
- Brand Name: Caijing
- Interface Type: TTL/RS232/RS485
- Resolution: 800x480
- application: industrial machine

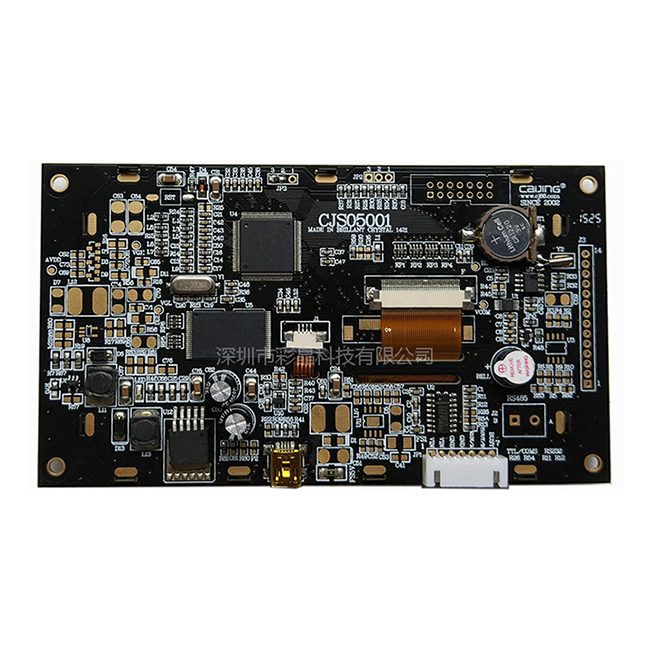

- Model Number: CJS05001
Specifications
Size: 5-inch
Resolution: 800x480P
Effective display area: 108x64.8mm
Viewing area: 109x65.8mm
Outline size: 143.5 x 80.9mm
Height: 17.5mm
Display color: T/T
LED backlight: LED
Brightness: 450cd/m2
Viewing angle: L/R/U/D: 70/70/50/70
Working temperature: -20-70
Storage temperature: -30-80
Resolution: 800x480P
Effective display area: 108x64.8mm
Viewing area: 109x65.8mm
Outline size: 143.5 x 80.9mm
Height: 17.5mm
Display color: T/T
LED backlight: LED
Brightness: 450cd/m2
Viewing angle: L/R/U/D: 70/70/50/70
Working temperature: -20-70
Storage temperature: -30-80
Download mode: USD mode
Selling Point
Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly
with touch screen
