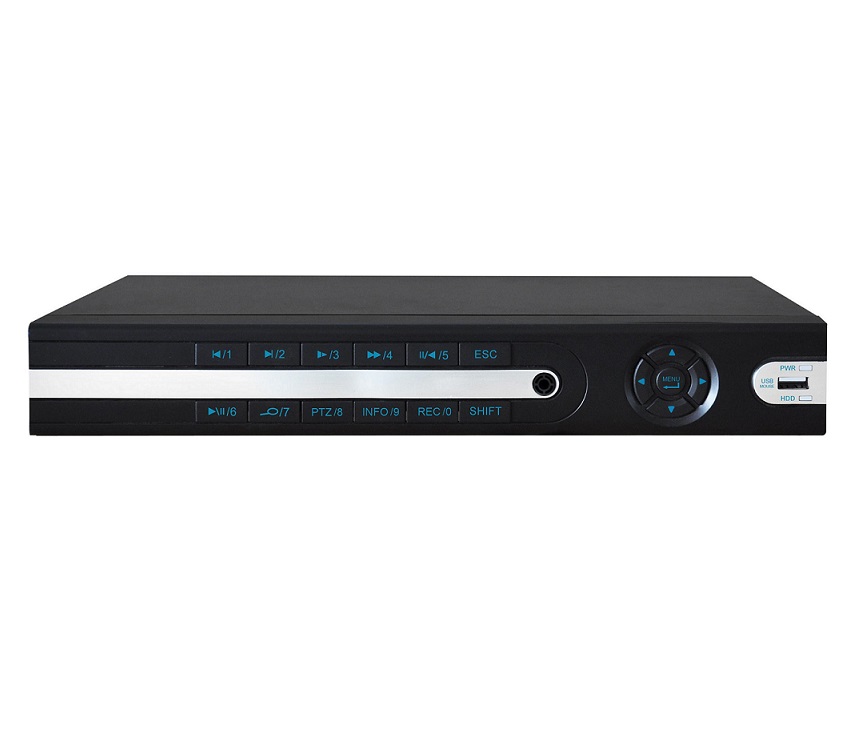

New Hybrid Analog Camera System AHD DVR High Profile AHD DVRs 16CH DR-A8716N
FOB Price: | 96.95 - 102.00 USD/Piece |
---|---|
Supply Ability: | 50,000 Piece/Pieces per Month |
Shipping: | Yantian port Shenzhen |
Payment Terms: | T/T, Western Union |
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Guangdong in China |
Packaging Details: | 1pc/polybag, color box |
Quick Details
- Model Number: DR-A8716N
- Type: AHD - Analog high definition
- Definition: AHD
Specifications
Hybrid Analog Camera System AHD DVR High Profile 25fps AHD DVR 16CH DR-A8716N
Feature:
HD
iDVR Three in one: DVR /
HVR / NVR features 3-in-1, multi-mode input, support four analog video
encoding, support for high-definition video mixing analog inputs + network
support pure HD network video input.
Step
on the Internet: With XM
cloud service, easy to achieve a variety of network penetrations, one step to
remote monitoring, getting rid of various complicated network settings, easy
and simple to operate.
Compression algorithm ideal: H.264 High Profile compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Mobile monitor: Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
Display: support VGA, HDMI HD output.
Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
Browsers: Support IE, Chrome, Firefox, Safari browsers.
Remote Access: 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
System |
Main processor |
Hi3531 |
Video |
Video compression |
H.264(High Profile) |
Encode capacity |
16*720P |
|
Decode capacity |
1*720P |
|
Multi-mode input |
Pure analog: 16*720P/8*720P/16*AHD-L Pure network: 1*1080P+8*720P/4*1080P/20*960H Analog + network: 4*720P (analog) + 4*720P(network) |
|
Audio |
Audio compression |
G.711A |
Intercom |
Support |
|
Record & Playback |
Record mode |
manual>alarm>motion detection>timing |
Playback |
4CH |
|
Storage & Backup |
Space occupation |
Video: 720P 20G / day* channel; 960H 12 ~ 20G / day * channel; Audio: 691.2M / day * channel |
Backup mode |
Network, U-disk, USB burner, SATA burner |
|
Interface |
Video input |
16CH BNC |
Video output |
1CH VGA, 1CH HDMI |
|
Audio input |
2CH RCA |
|
Audio output |
1CH RCA |
|
Alarm input |
N/A |
|
Alarm output |
N/A |
|
Network interface |
RJ45 10M/100M |
|
PTZ control |
1*RS485, Support multiple PTZ protocols |
|
USB |
2* USB 2.0 |
|
HDD |
2*SATA port (Max 4TB/per) |
|
Wireless |
3G, WIFI (extension via USB) |
|
Other |
Power supply |
12V/2A or 12V/4A |
