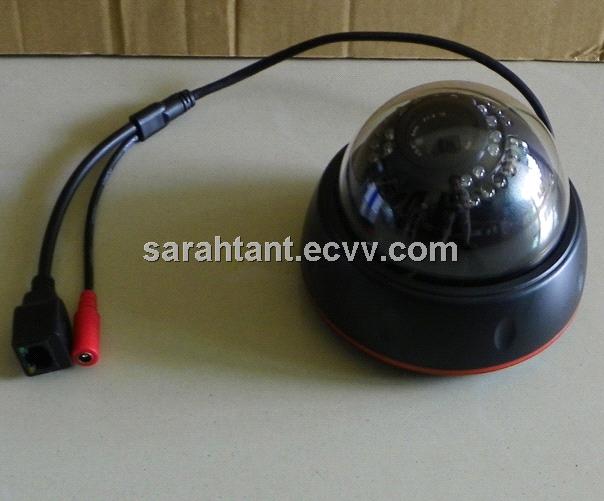

1.3 Megapixel 960P High Definition Dome IP Security Cameras DR-IP5N301DXH3
| FOB Price: | 41.04 - 54.22 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Month |
| Shipping: | 15 working days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1pc/polybag, color box |
Quick Details
- Brand Name: NA
- Model Number: DR-IP5N301DXH3
- Type: Digital Camera
- Sensor: CMOS
- Technology: NetWork
- Casing: Plastic
- Day & Night: Yes
- POE: Support
- Icloud Function: Support
Specifications
CCTV Security System 1.3 Megapixel Plastic Day & Night Indoor Dome IP Camera DR-IP5N301DXH3
Features
l 1/3" Progressive Scan APTINA CMOS
l APTINA ARO130 Sensor with IR-CUT
l Hi 3518 Chipset / 1.3 Megapixel
l Integrated 6.0/8.0mm Lens
l Day and night application makes 15-25M IR view distance
l H.264 compression
l Real time transmission up to 1280*960@25fps
l Hardware motion detection supported
l DC 12V
l Wall mount supported
l Onvif compliant
|
|
Model |
DR-IP5N301EXH3 |
|
|
Device |
1.3 Megapixel APTINA ARO130 Sensor |
|
|
Size |
1/3 inch |
|
|
Effective Pixels |
960P:1280*960 |
|
Min. Scene Illumination |
Color |
0.1LUX (F1.2) |
|
|
B/W |
YES |
|
|
IR Sensitivity |
Yes |
|
|
IR Cut |
Yes |
|
Lens |
Lens |
6.0mm |
|
|
Viewing Angle |
5 |
|
Linux System |
|
Internal Linux system |
|
Day/ Night |
IR distance |
15-25M |
|
Functions |
Motion Detection |
Yes |
|
|
Electronic Shutter |
1/5-1/10,000 sec |
|
|
BLC |
Turn/Off |
|
|
AGC |
Auto |
|
|
White Balance |
Auto(indoor/outdoor) |
|
S/N Ratio |
S/N Ratio |
≥50dB |
|
Video Compression |
Compression |
H.264 |
|
|
Picture Resolution |
960P:1280*960 |
|
|
Bit Rate |
253K~8.0M bps |
|
|
Image Frame Rate |
25FPS |
|
Casing |
Mount Types |
Wall Bracket |
|
Network |
Ethernet |
Ethernet(10/100Base-T), RJ-45 connector |
|
|
Protocol |
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, RTP and RTCP |
|
Software |
Web Browser |
Microsoft Internet Explorer under 11 |
|
|
SDK |
OPEN |
|
|
Security |
Administrator password protection |
|
Operating |
Temperature |
-30℃~60℃ |
|
|
Humidity |
-10～85% |
|
Power |
Power Requirement |
DC12V / POE(optional) |
|
|
Power Consumption |
2.0W~5.8W |
|
Applicable |
|
Family, office, residential, factories, parking lot |
