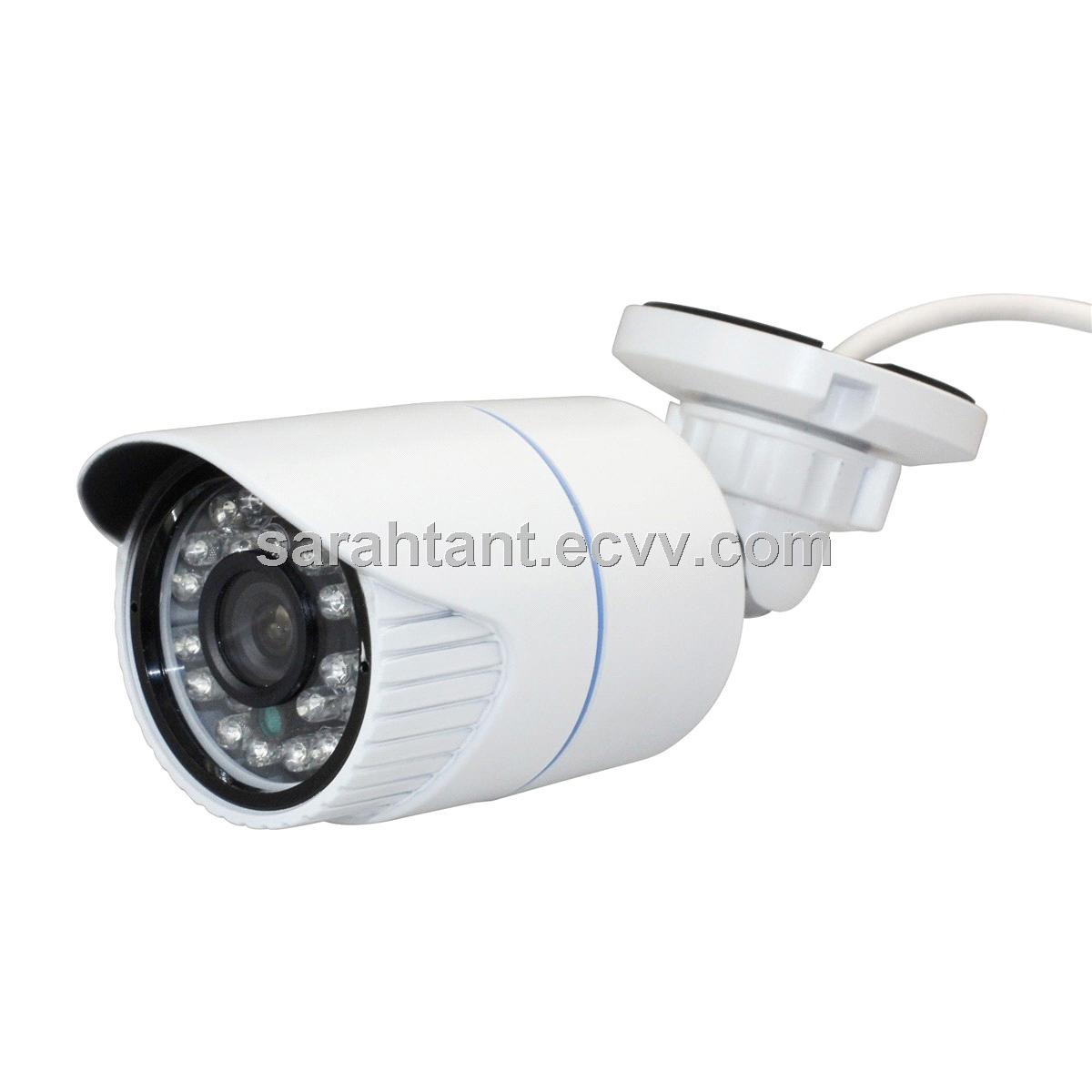

HD Weatherproof Outdoor IR CCTV Cameras DR-AHSB6015
| FOB Price: | 19.63 - 24.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Month |
| Shipping: | Yantian port Shenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1pc/polybag, color box |
Quick Details
- Model Number: DR-AHSB6015
- Type: Analog Camera
- Sensor: CMOS
- Technology: Infrared
- Special Features: Waterproof / Weatherproof
- High definition: 1000TVL
Specifications
CCTV Security System Outdoor Weatherproof IR CCTV Bullet Cameras
Chipset: Color 1/3" CMOS 800TVL Built-in IR-Cut (PC3089)
Opitional: 420/600/700/800/1000/1200TV Lines
24 pcs ￠5mm IR-LED, IR Range: 20M
Built-in 3.6mm/F2.0 Board Lens
Dimension: 165(W)x55(H)x55(D)mm
Water resistance: IP66
Specification:
|
Model No. |
DR-AHSB6016 |
DR-AHSB6013 |
DR-AHSB6012 |
DR-AHSB6015 |
DR-AHSB6014 |
DR-AHSB6011 |
DR-AHSB601 |
||
|
Image Sensor |
1/2.8" Sony |
1/3" Sony |
1/3" Sony |
1/3" CMOS |
1/3" CMOS |
1/3" Sony |
1/3" Sony |
||
|
IMX138 CCD |
ICX673BK CCD |
ICX811AK CCD |
PC1099 |
PC3089 |
ICX639BK CCD |
ICX633BK CCD |
|||
|
Horizontal Resolution |
1200TVL(OSD) |
700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
1000TVL |
800TVL |
600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD |
420TVL |
||
|
Pixels |
1280(H)×720(V) |
PAL: 976(H)×494(V) |
PAL: 976(H)×582(V) |
962(H)×504(V) |
762(H)×504(V) |
PAL: 795(H)×596(V) |
PAL: 500(H)×582(V) |
||
|
NTSC: 976(H)×582(V) |
NTSC: 976(H)×582(V) |
NTSC: 811(H)×508(V) |
NTSC: 510(H)×492(V) |
||||||
|
Television Standards |
PAL/ NTSC |
||||||||
|
IR LED |
24PCS ￠5mm IR LED |
||||||||
|
IR Distance |
20m |
||||||||
|
Lens |
Board Lens 3.6 mm/F2.0 |
||||||||
|
Sync System |
Internal |
||||||||
|
Usable Illumination |
0.01Lux/F2.0 |
||||||||
|
IR Power On |
CDS Auto Control |
||||||||
|
S/N Ratio |
≥65dB (AGC OFF) |
≥54dB (AGC OFF) |
≥48dB (AGC OFF) |
||||||
|
Gamma Correction |
0.45 |
||||||||
|
Video Output |
Composite Signal (1.0Vp-p, 75Ω) |
||||||||
|
Scanning System |
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
||||||||
|
Electronic Shutter |
Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec |
||||||||
|
Operation Temperature |
-10°C ~ +50°C, RH: 95% Max |
||||||||
|
Storage Temperature |
-20°C ~ +60°C, RH: 95% Max |
||||||||
|
White Balance |
Auto |
||||||||
|
Power Supply |
DC12V |
||||||||
|
Dimension |
55(W) x55(H) x165(D)mm |
||||||||
|
Weight |
600g |
||||||||
