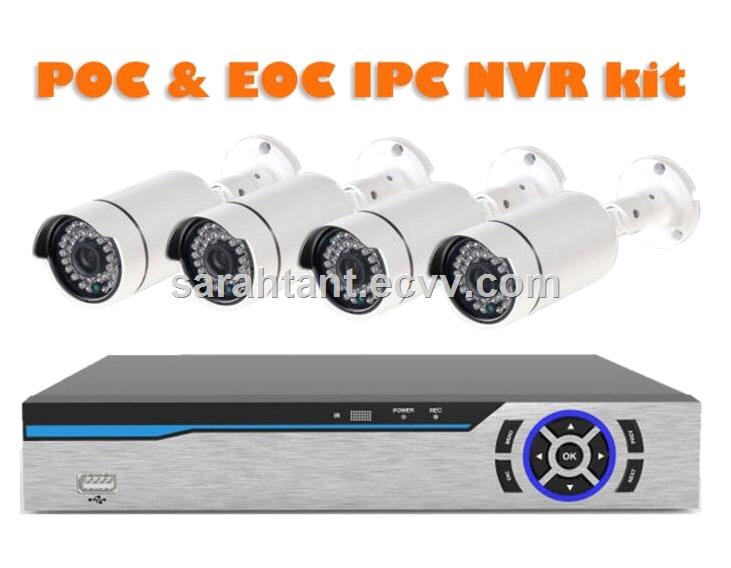

PoC & EoC IP Cameras NVR Security CCTV Kit

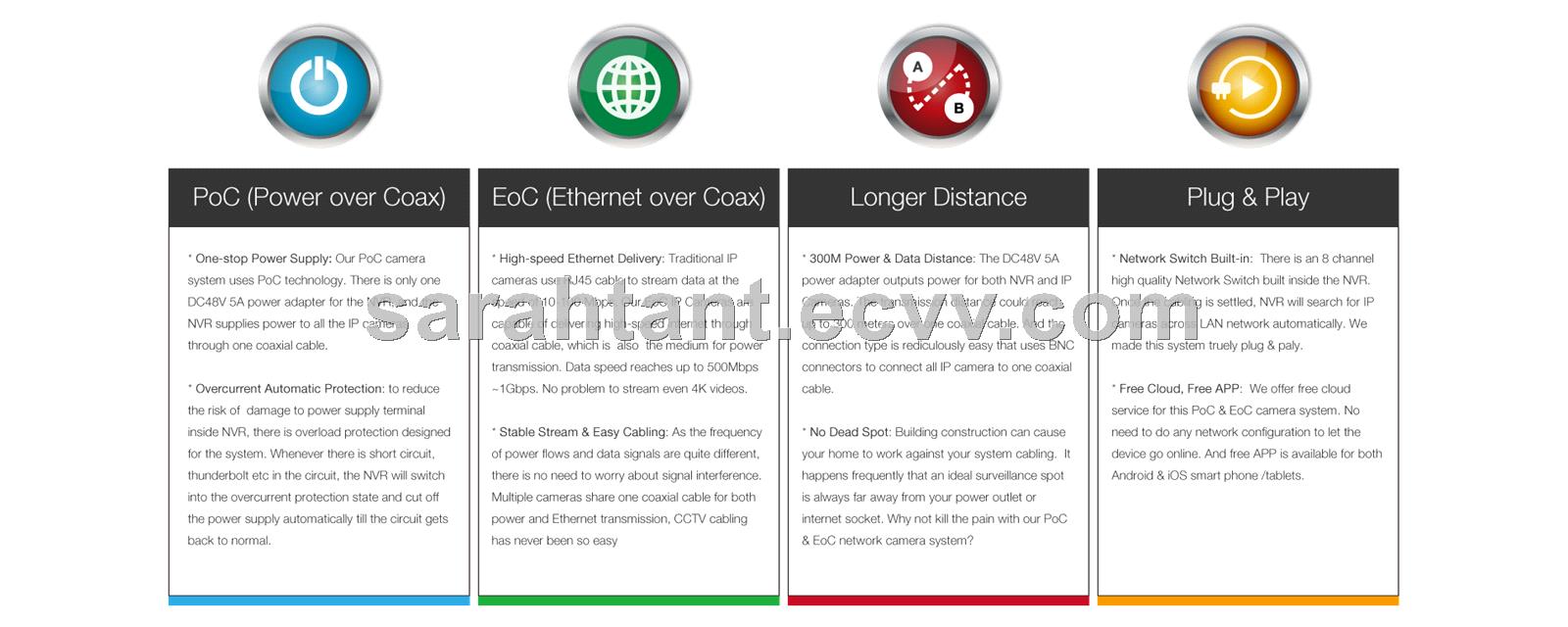

One-stop power Supply: PoC camera system uses PoC technology. There is only one DC48V 5A power Adaptor for the NVR, and the NVR supplies power to all the IP cameras through One coaxial cable.

Overcurrent automatic Protection: to reduce the risk of damage to power supply terminal inside NVR, There is overload protection designed for the system. Whenever there is short Circuit, thunderbolt etc. In the circuit, the NVR will switch into the Overcurrent protection state and cut off the power supply automatically till The circuit gets back to normal.

EoC(Ethernet over Coax)

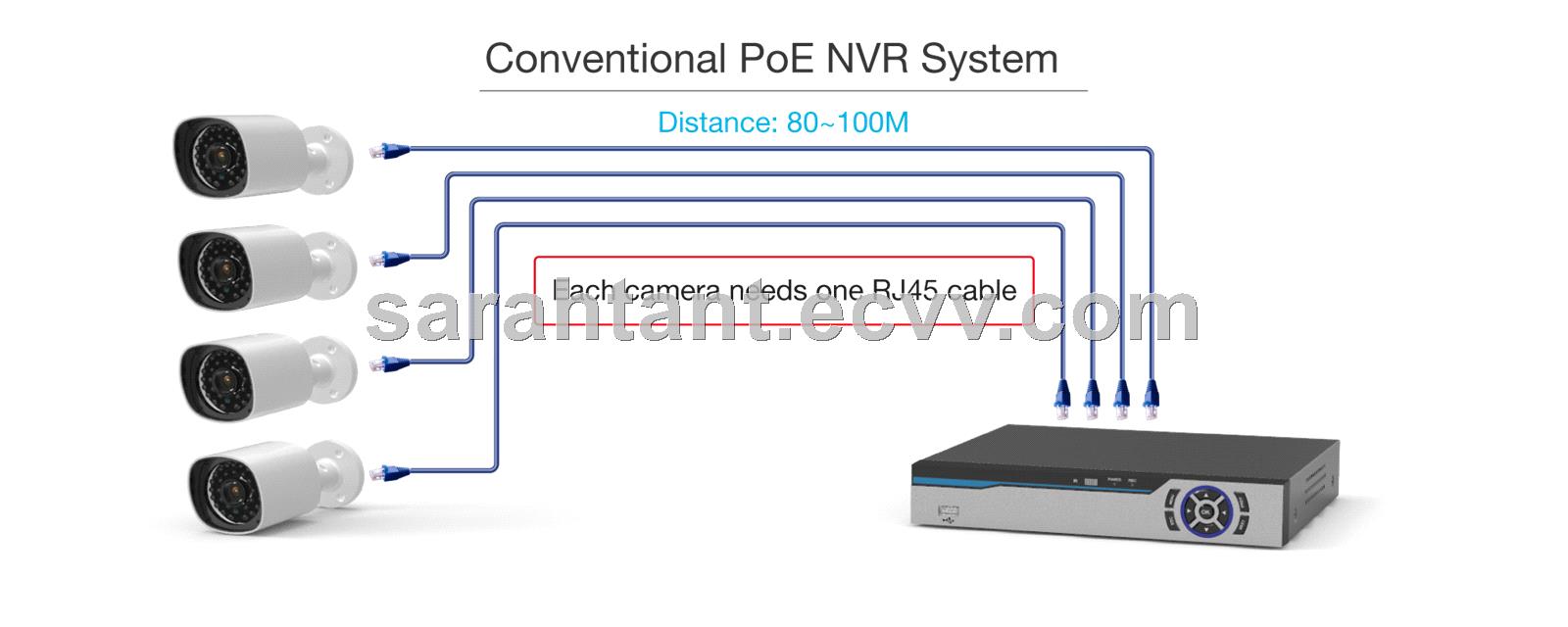

High-speed Ethernet Delivery: traditional IP cameras use RJ45 cable to stream data at the speed of 10-100Mbps. The EoC IP cameras are capable of delivering high-speed internet through coaxial cable, which is also the medium for power transmission. Data Speed reaches up to 500Mbps-1Gbps. No problem to stream even 4K videos.

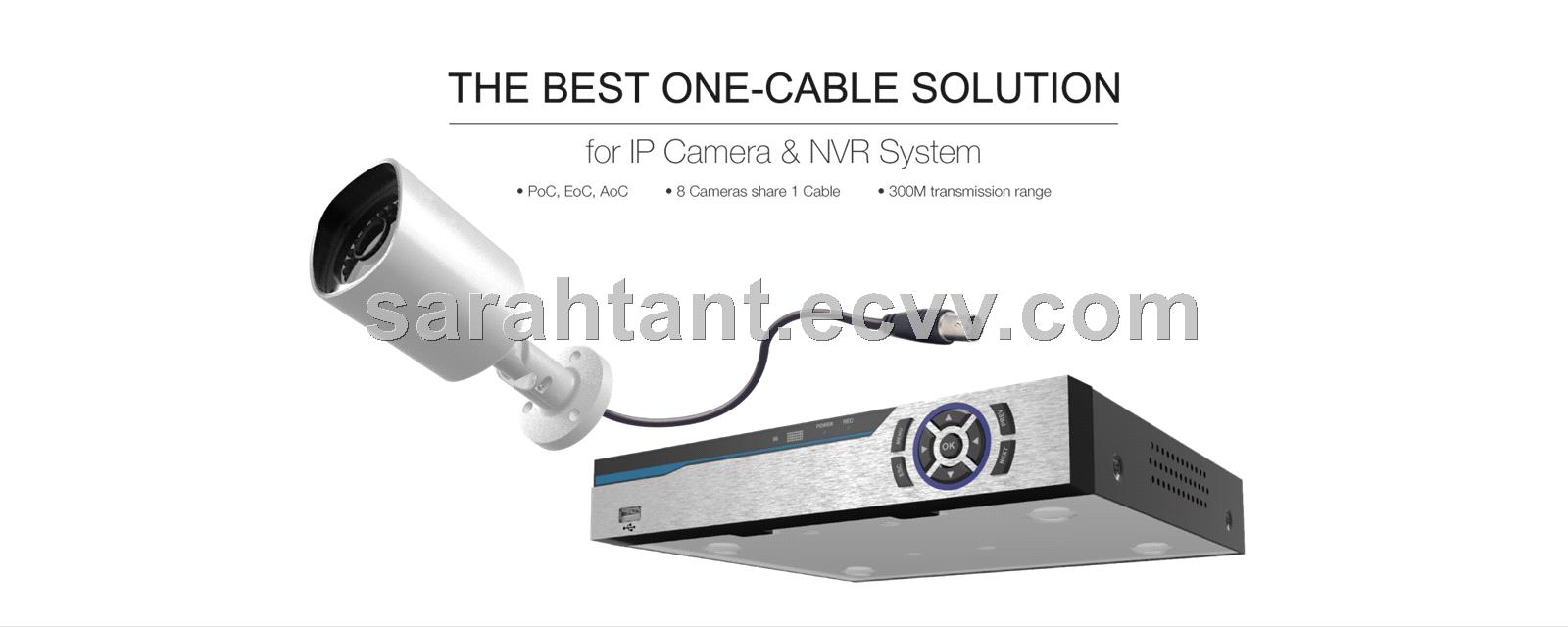

Stable Stream & Easy Cabling: as the frequency of power flows and data signal are quite Different, there is no need to worry about signal interface. Multiple cameras Share one coaxial cable for both power and Ethernet transmission, CCTV cabling Has never been so easy.

Longer Distance

300M Power & Data Distance: the DC48V 5A power adaptor outputs power for both NVR and IP cameras. the transmission distance could reach up to 300 meters over one coaxial cable. and the connection type is particularly easy that uses BNC connectors to Connect all IP cameras to one coaxial cable.

No Dead Spot: Building construction can cause your home to work against your system cabling. It happens frequently that an idea surveillance spot us always far away from Your power outlet or internet socket. Why not kill the pain with the PoC & EoC network cameras system?

Plug & Play

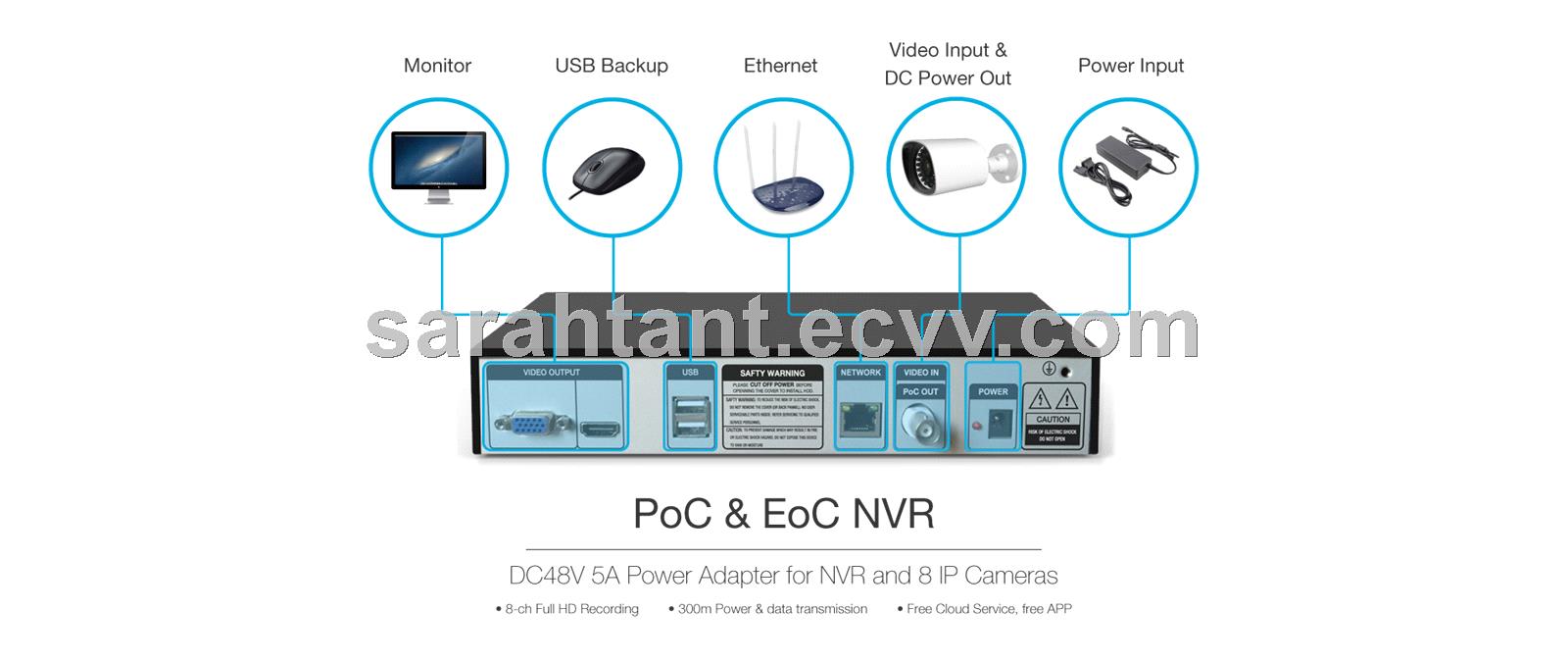

Network Switch Build-in: there is an 8 channel high quality network switch built inside the NVR. Once the cabling is settled, the NVR will search for IP cameras across LAN Network automatically. We made this system truly plug & play.

Free Cloud, Free APP: We offer free cloud service for this PoC & EoC camera system. No need to do Any network configuration to let the device go online. and free APP is Available for both Android & iOS smart phone/tablets.
