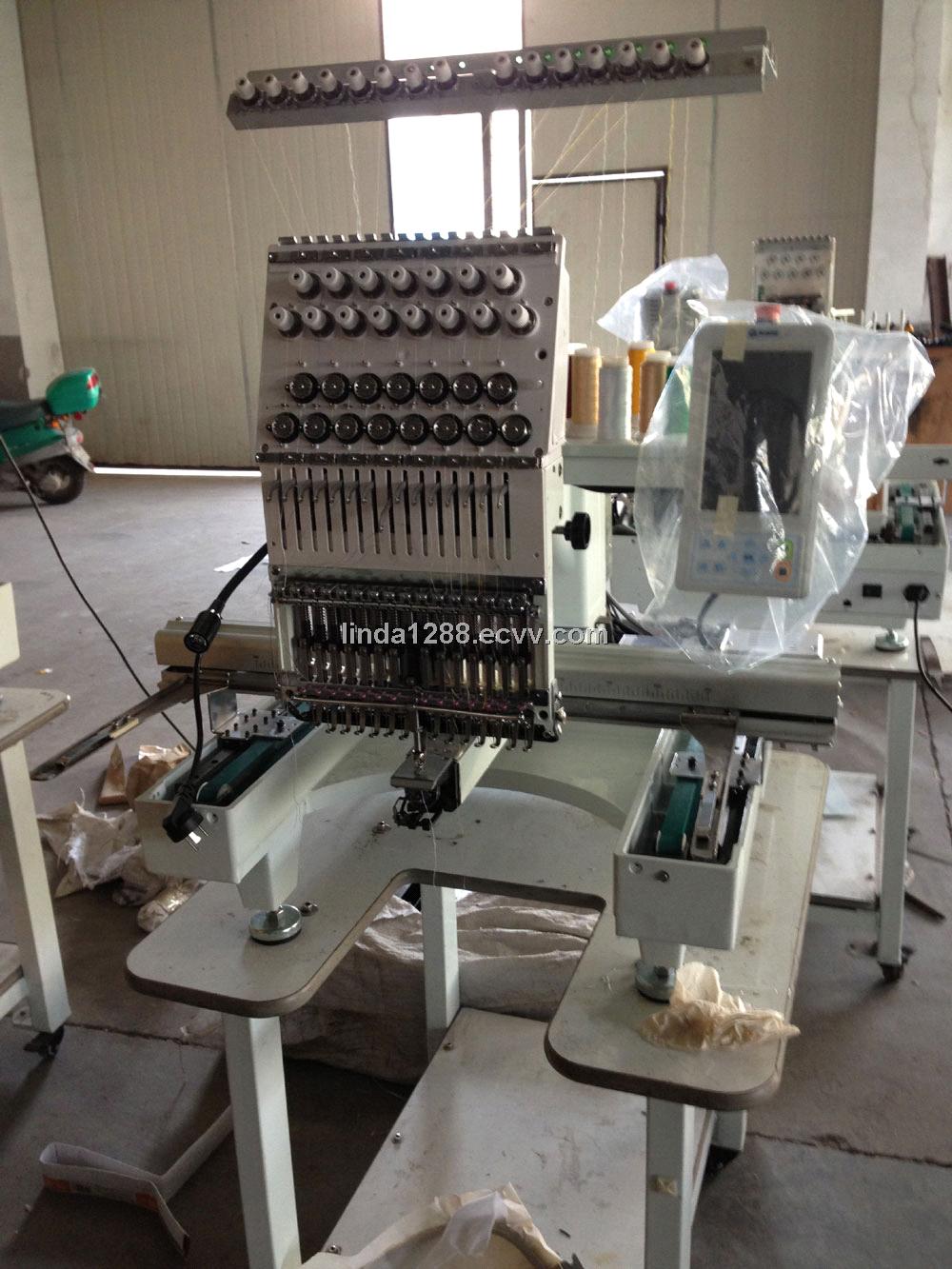

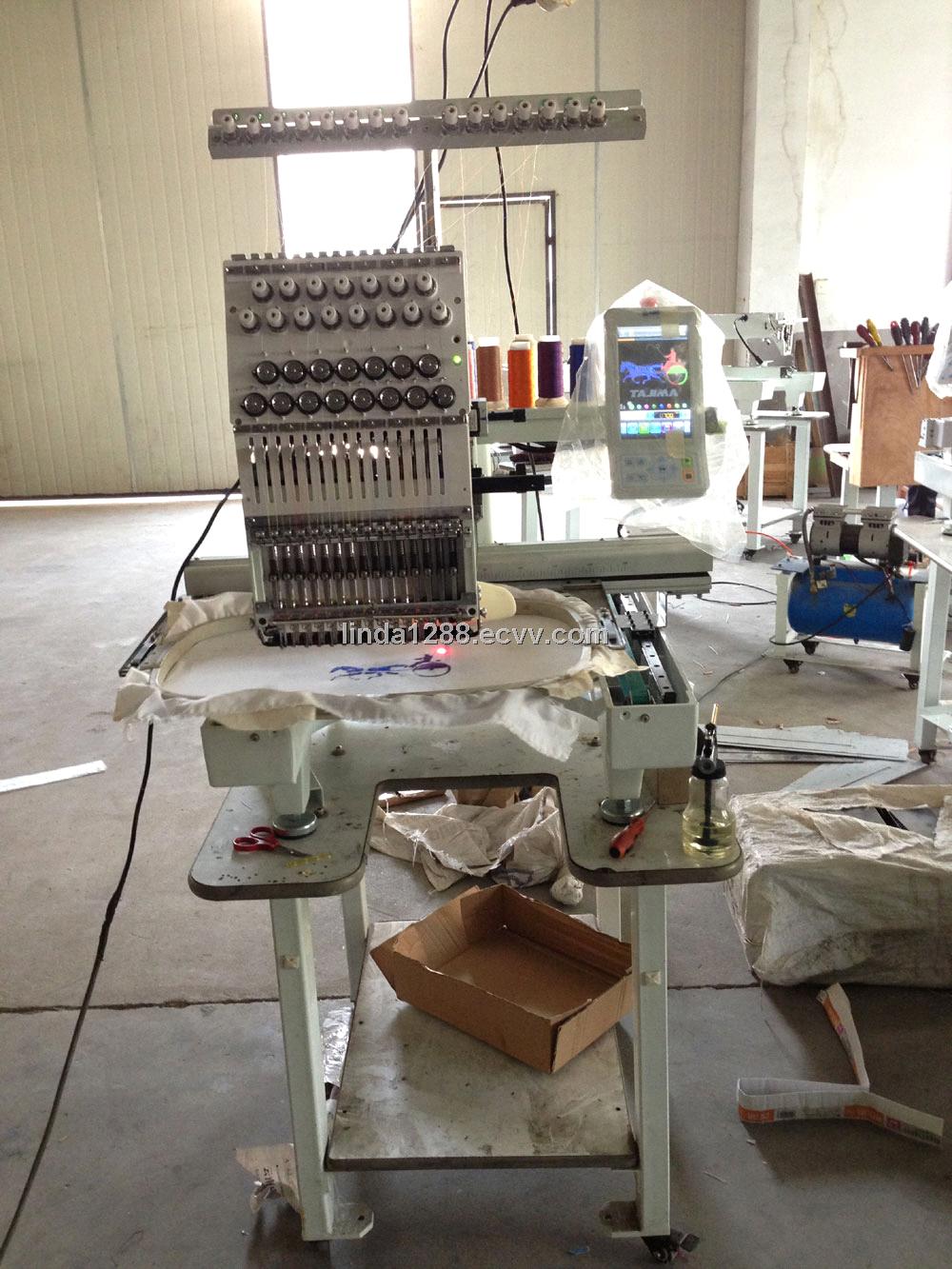

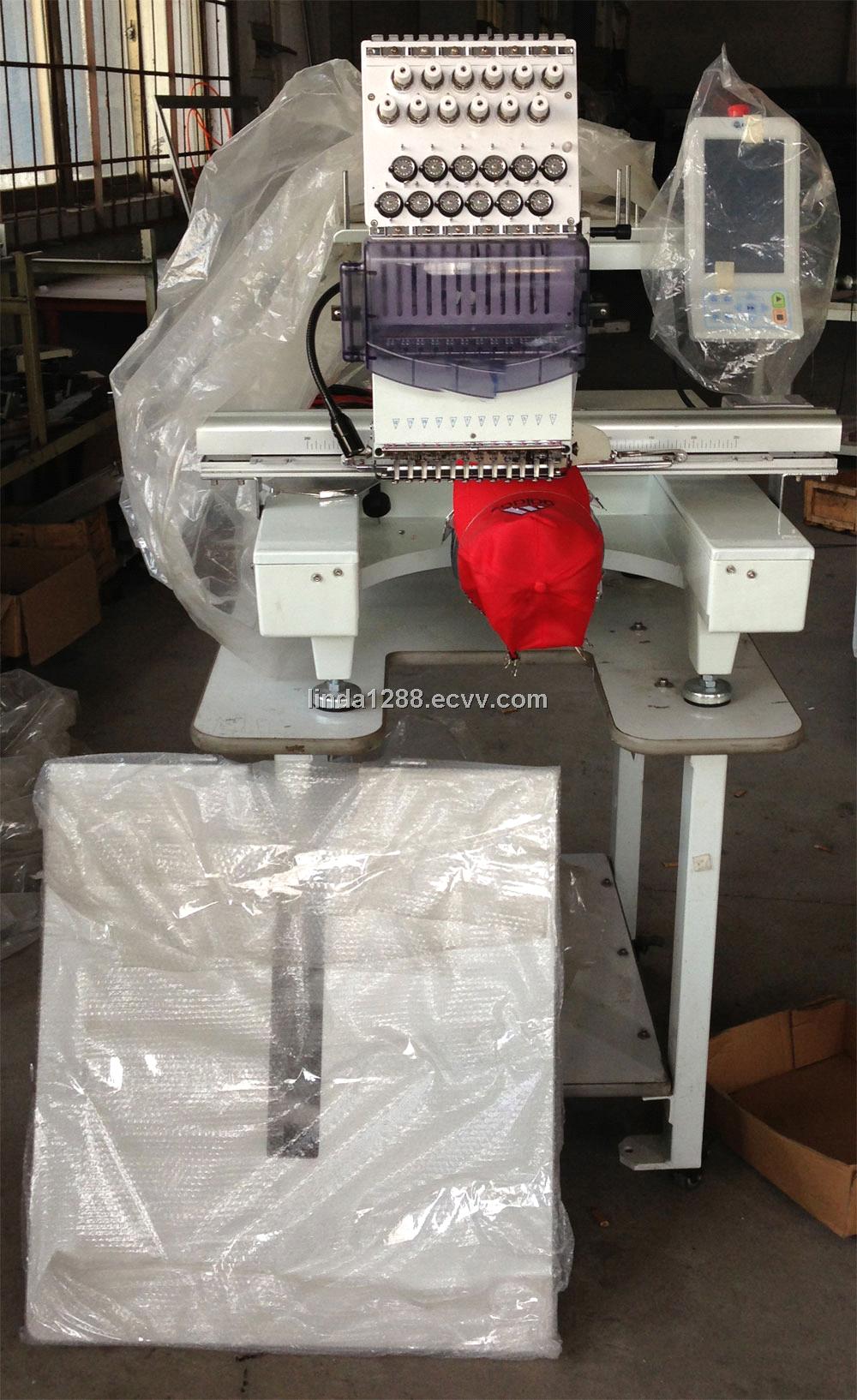

Single Head Machine 1501/1201/901

FOB Price:	3,500.00 - 4,500.00 USD

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	wooden case with vaccume packing.

Specifications

Small and domestic Embroidery Machine
Main shaft control: dahao servo motor
Operation Methods: Touching Panel+Keyboard
Frame System: Dahao 2-phase micro-step motor/Stepping Close Loop
Color-changing Mode: step color-changing
Frame System: Solenoid thread holding, trimming, catching or step motor thread catching
Color-changing Mode: Rheostat
Thread break Detecting:

Thread take-up spring or chopping wheel

Type three Thread-breakage Detection System

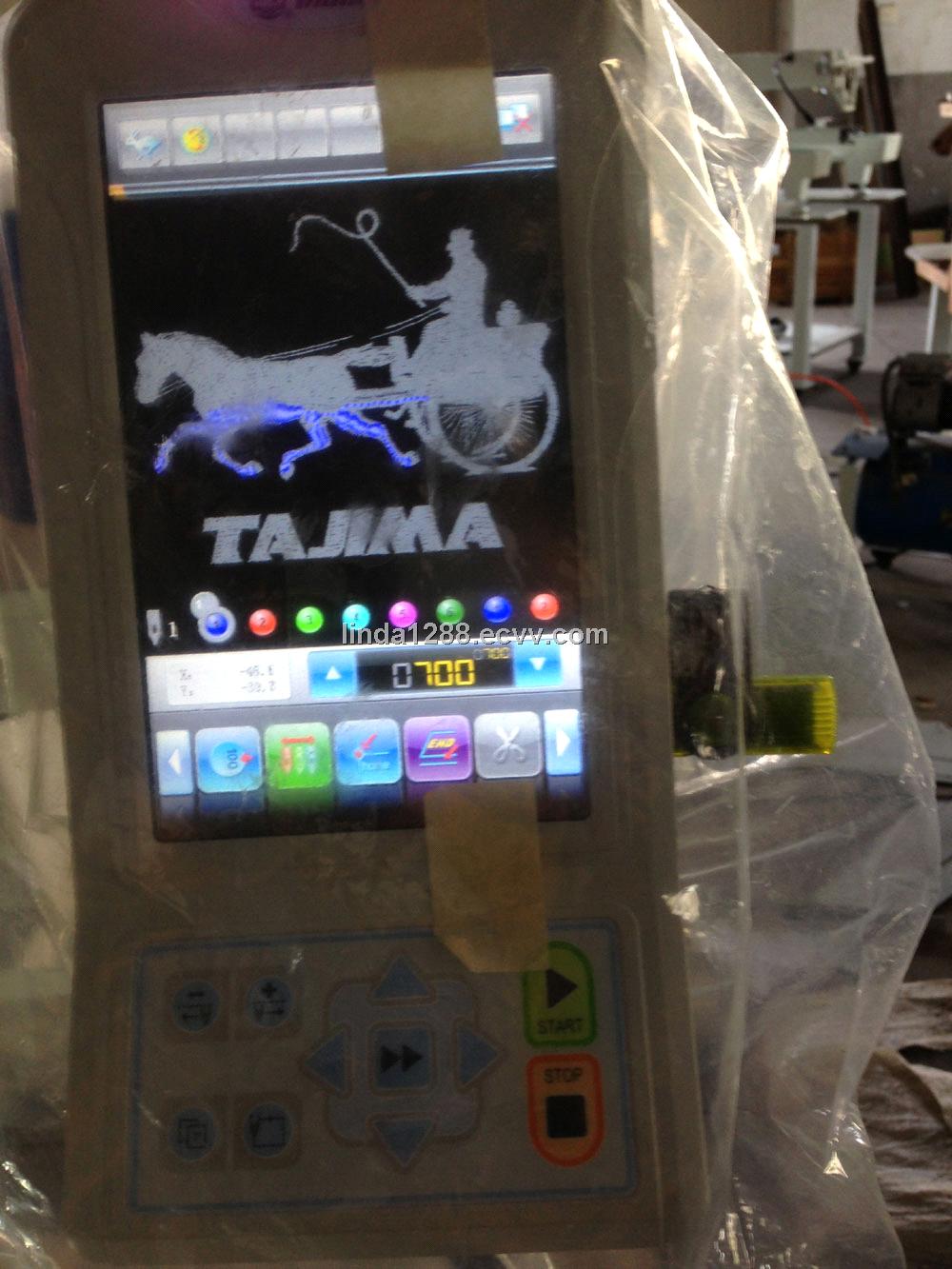

Display: 7 Inch TFT
Mounting Structure: Separate Structure; the control board is built inside machine
Range of Working Voltage: AC95~125V or AC170~265V Wider range of voltage input
Main Shaft System: Dahao special servo driver with encoder DC brushless motor
Language: Chinese, English, Turkish, French, Spanish, Portuguese, Russian, French, Arabic
Floppy Disk: Portable Floppy Disk
USB: Pattern input/output Support USB updating
Network: Network connector integrated on main board
Network Function: Support multi-machine network, data transfer, state monitoring
Monogramming Pattern: support

FEATURES

* Suitable for Flat embroidery, Cap embroidery and Tubular embroidery
* Automatic thread trimmer and Automatic color change
* Thread breakage detection

* Automatic redeeming embroidery

* Maximum speed 1000 RPM

* 270° wide cap frame

* Large sewing field: 350mmX500mm(13.8" X19.7" )

* Eye-friendly color LCD display easy to operate with 7" touch sceen

* Memory capacity 1,6000,000 stitches(16million, 400 designs

* Built-in USB port

* Read TAJIMA, BARUDAN and ZSK format disk design

* Multi languages available, avoiding language limitation

* Laser positioning system

* Emergency stop

OPTIONAL TYPE

1. 901 cap embroidery machine: 9-needle, 1-head

2. 1201 cap embroidery machine: 12-needle, 1-head

3. 1501 cap embroidery machine: 15-needle, 1-head

OPTIOANL DEVICE

1. Boring embroidery device

2. Sequin embroidery device(Single Sequin, Double sequin)

3. Cording embroidery device

Specifications

1201 compact embroidery machine
1. Home use, sample making machine
2. Multi-funtional to use
3. Lower price, shorter lead time

Single head, 12 needle embroidery machine
Automatic colour changes
Automatic needle threading
Automatic thread trimmer
Automatic thread breakage detection
Design memory retention
Design rotation
Adjustable presser foot for different material
Dahao brand LCD digital screen
Multi languages available, avoiding language limitation
USB ports for PC and memory stick
Support networking system

Strong machine body, Low noise running, Easy maintenance

Suitable for flat embrodiery, cap embroidery, and tubular embroidery.

You can choose to add sock frames, boring embroidery device, sequin embroidery device, etc.

Needles, you can choose 12 needles, 15 needles, or 9 needles, as your like.

If you dream of starting an embroidery business or expanding the possibilities of your home embroidery, then this type embroidery machine is for you.

Own this type embroidery machine, you can Embroider a wide variety of items such as caps, shirts, jackets, jeans, hats or towels with business logos, school names, monograms, and much more.
Any Additonal information pls contact me.
