Home >Products Catalog > Stone CNC Router > JIAXIN CNC control Marble carving machine JX-1313S

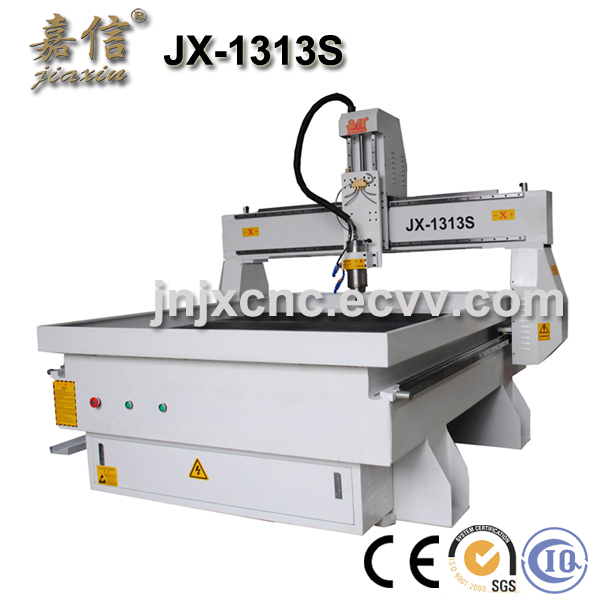

JIAXIN CNC control Marble carving machine JX-1313S

FOB Price:	5,000.00 - 8,500.00 USD/Set
Supply Ability:	80 Set/Sets per Month
Shipping:	15 days arrived QINGDAO port
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	steel frame and plywood box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Certification: CE,CIQ,QC,SGS,
Weight: 1200KGS
Dimension(L*W*H): 1800x2000x1650mm
Power(W): 5.5KW
Voltage: AC380V/50Hz
Model Number: JX-1313S
Brand Name: JIAXIN
CNC or Not: CNC
Condition: New

Specifications

JIAXIN CNC control Marble carving machine JX-1313S

Model	JX-1313S
X,Y Axis working area	1300mmx1300mm
Z Axis working area	200mm
Max. processing Speed	25m/min
Interface	By cable
Power (not include the spindle)	1840W
Spindle power	5.5KW
Control system	NC studio
Spindle rotating speed	24000rpm
command	G code.u00.mmg*plt
Work Mode	step motor (servo is option)
Work voltage	AC380V/50Hz

Suitable Industry

1. Granite, Marble, Bluestone, Sandstone and other stone engraving

2. Hard stone like Granite can be layered engraved to reach 3mm

3. Marble, Bluestone and so on can be engraved to 5mm each time

4.non-ferrous metal sheet, Such as aluminum veneer, aluminum composite panel, copper, PVC board, acrylic,
insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.

Performance Characteristics

1.Imported Linear Guideway, Double-line Four-row Slider, Undertake Heav-duty, Stable operation,High precision,
Long lifetime.

2.The whole machine is made of welding steel, high stiffness, the back table is Steel sheet, heavy-duty up to 1 ton;
Constant Output Spindle, Heavy cutting capacity, high efficiency.

3.Excellent Compatibilitycompatible of TYPE3, ARTCAM, CASTCAM, UCANCAM and other CAD/CAM Design Software.

4.The two-way tool cooling system increase the lifetime of tools.

Guarantee & after sale service

Guarantee for one year,24-hour technical support by email or calling

User-friendly English manual and Video CD for machine using and maintaining.
