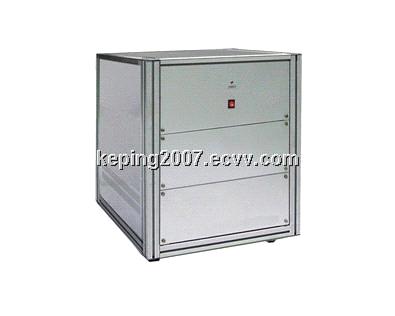

Single Phase Stationary Power Source

Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

6800AMH Mobile power

Price:10.00-20.00 USD/Pole

Min. Order:10 Poles

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Model Number: SNT 101

Specifications

Features:

High accuracy and stability.

Voltage, current, phase position, power factor, frequency can be set and adjusted.

RS232 port, and it can be work with PC.

Can be worked with external keyboard.

Voltage short circuit, current open circuit fault auto alarm protection.

Technical:

Power Supply: 220V±15%, 50Hz± 2 Hz

Working Temperature Range: -10℃～+40℃

Voltage Output

Range: 24V～288V

Voltage Output Power Volume: 400VA (Max.1000VA)

Differentiation: 0.01%

Output Stability: ≤0.02％/120s

Distortion Degree: ＜0.3%

Current Peak Value: 0.7A

Harmonic Output: 0～100% (2-21 times)

Frequency Width: 30Hz…2kHz (-3dB)

Current Output

Range: 1mA～120A (can be up to 230A if required)

Current Output Power Volumn: 800VA (Max.2000VA)

Differentiation: 0.01%

Output Stability: ≤0.02％/120s

Distortion: ＜0.3%

Voltage Peak Value: 8V

Harmonic Output: 0～100% (2-21 times)

Frequency Width: 30Hz～2kHz (-3dB)

Frequency Output:

Range: 45Hz～65Hz

Differentiation: 0.001Hz

Phase Position Output

Range: 0°～360°

Differentiation: 0.01°

Power Output Stability: 0.02%/120s

Dimension: 600mm×650mm×650mm
