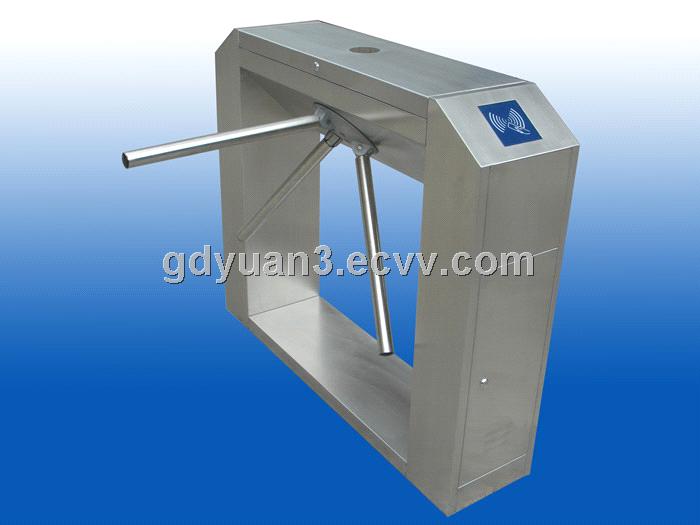

IP56 Semi-Automatic Bridge-Shape Tripod Turnstile
| FOB Price: | 600.00 - 750.00 USD/Unit |
|---|---|
| Supply Ability: | 600 Unit/Units per Month |
| Shipping: | Delivery within 2weeks, Depature port: Shenzhen or Hongkong, by express, airfligt, sea, or land, |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Packed in wooden case, inner packed in carton and EPE foam |
Quick Details
- Brand Name: Koten
- Model Number: KT112
- Type: Semi-automatic type
- Power supply: AC220V, 50Hz, option from 80-230V, 50or60Hz
- Compatibility: third party RFID/Biometric access control/time attendancecan be integrated
- Lane width: 550-600mm
- Material of housing: SUS304
- Thickness of housing: 1.5mm
Specifications
Security Tripod Turnstile Gate Specification:
1. Power Supply: AC220V± 10V , 50Hz / AC110V± 10V , 60Hz
2. Turnstile Material: Housing - 304 stainless steel
Arm - 202 stainless steel
3. Humidity: < 95%, without concretion
4. Passage Width: < =600mm
5. Passing Speed: 20-40persons/min (IC Card)
6. Power Consumption: 100W/24V
7. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current > 10mA
8. Communication Interface: RS485 (Distance: < =1200m)
9. Temperature: -15 to 60 degrees
10. Dimension: 1200*280*980 mm
10. Dimension: 1200*280*980 mm
Arm Length: 50mm
11. Net Weight: 50kgs
12. Working Environment: Indoors or outdoors with shed
Functions and features:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, no noise and no mechanical impact
3. Self-checking-power-on function, if power on, turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm will be automatically lift.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed through automatically and will show the number by LED directly. (LED is optional)
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10. Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
11. If working with software, the total-in-population can be set to satisfy special request.
12. Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
13. Card Mouting is avaliable.
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more realiable and accurate.
15. Optional parts:
1) Counter and counter display
2) Access controller or card reader
3) Key by-pass
