Semi-Automatic Mechanism for Tripod Turnstile
| Supply Ability: | 500 Sheet(s) per Month |
|---|---|
| Shipping: | within 2weeks, departure port: Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Safebuy, Paypal |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden case, inner packed in cartons and EPE foam |
Quick Details
- Brand Name: Koten
- material: Gavanized Steel
- Color: metal color
- Warranty: 2years
- Card Type: RFID
- Model Number: TM01
Specifications

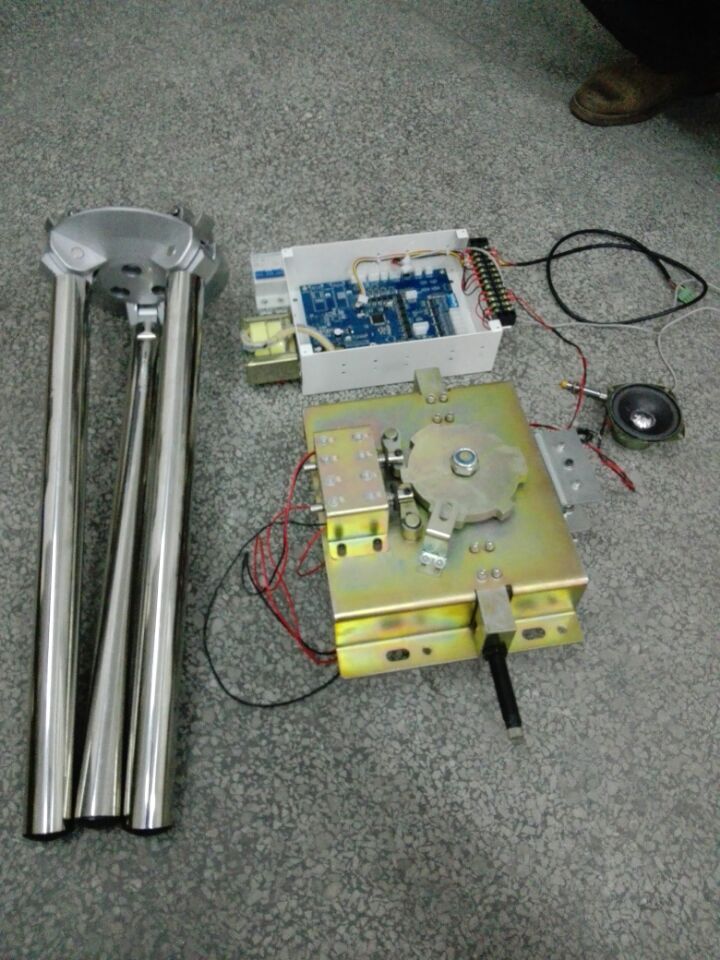

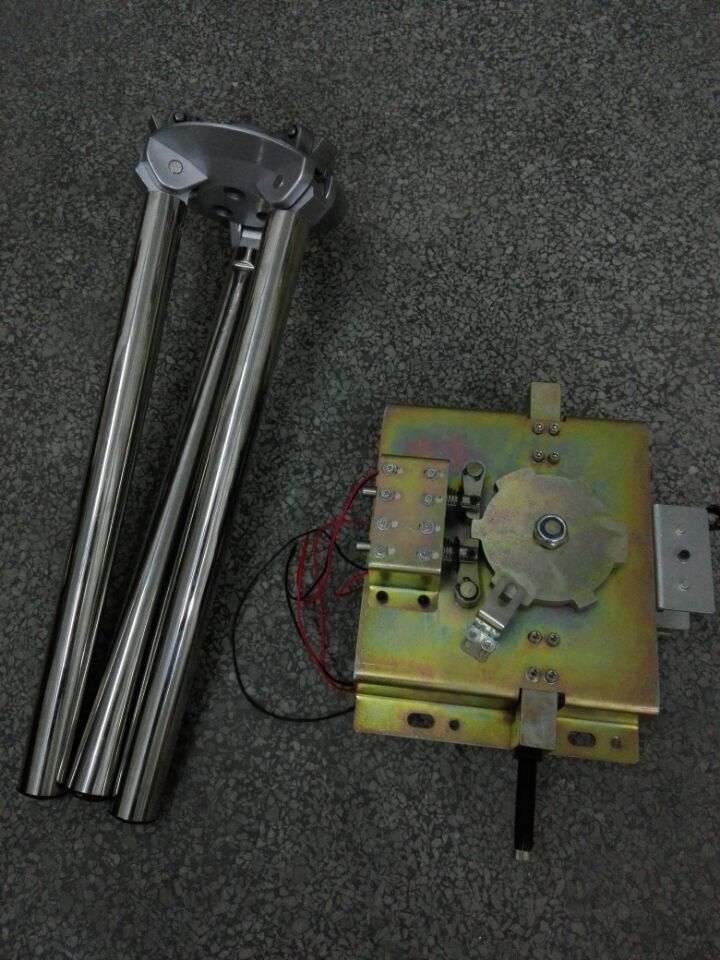

Tripod Turnstile Mechanism
Tripod hub: Aluminium alloy painted black
Tripod arms: Stainless steel tube, polished, Dia. 38 mm, walkway 500mm

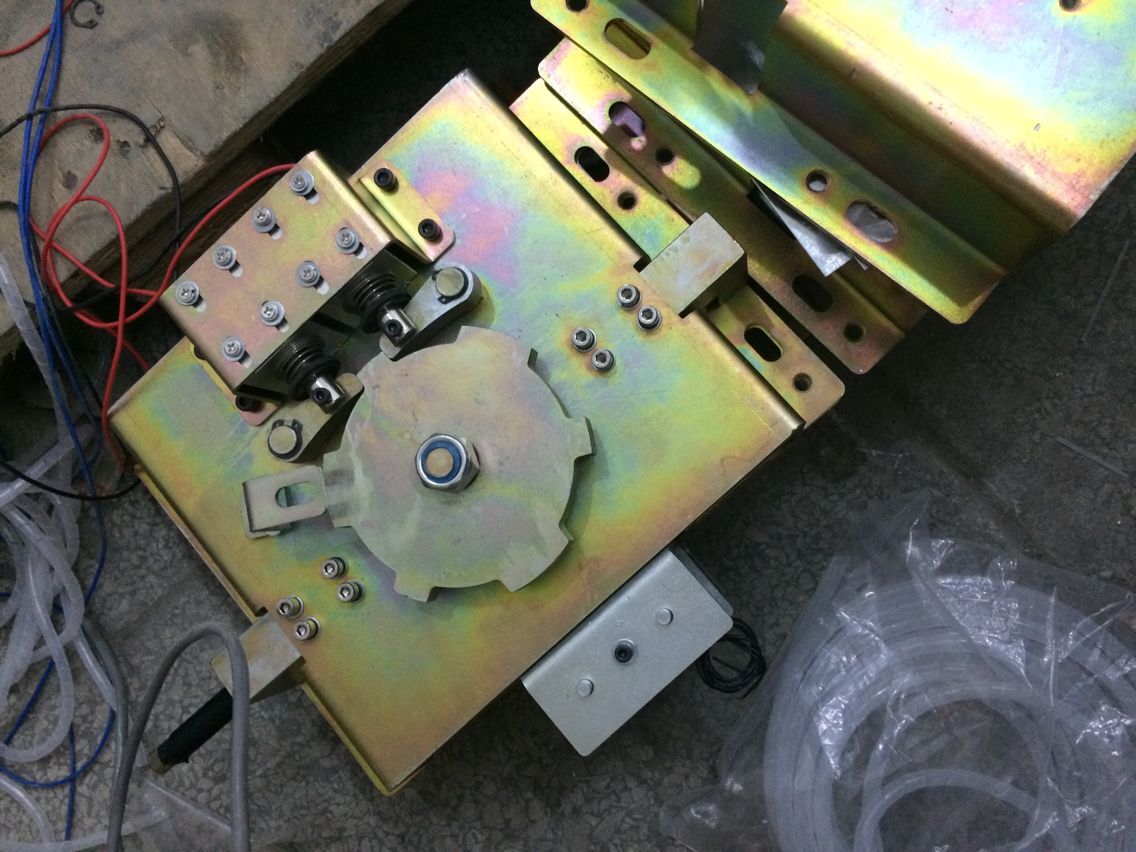

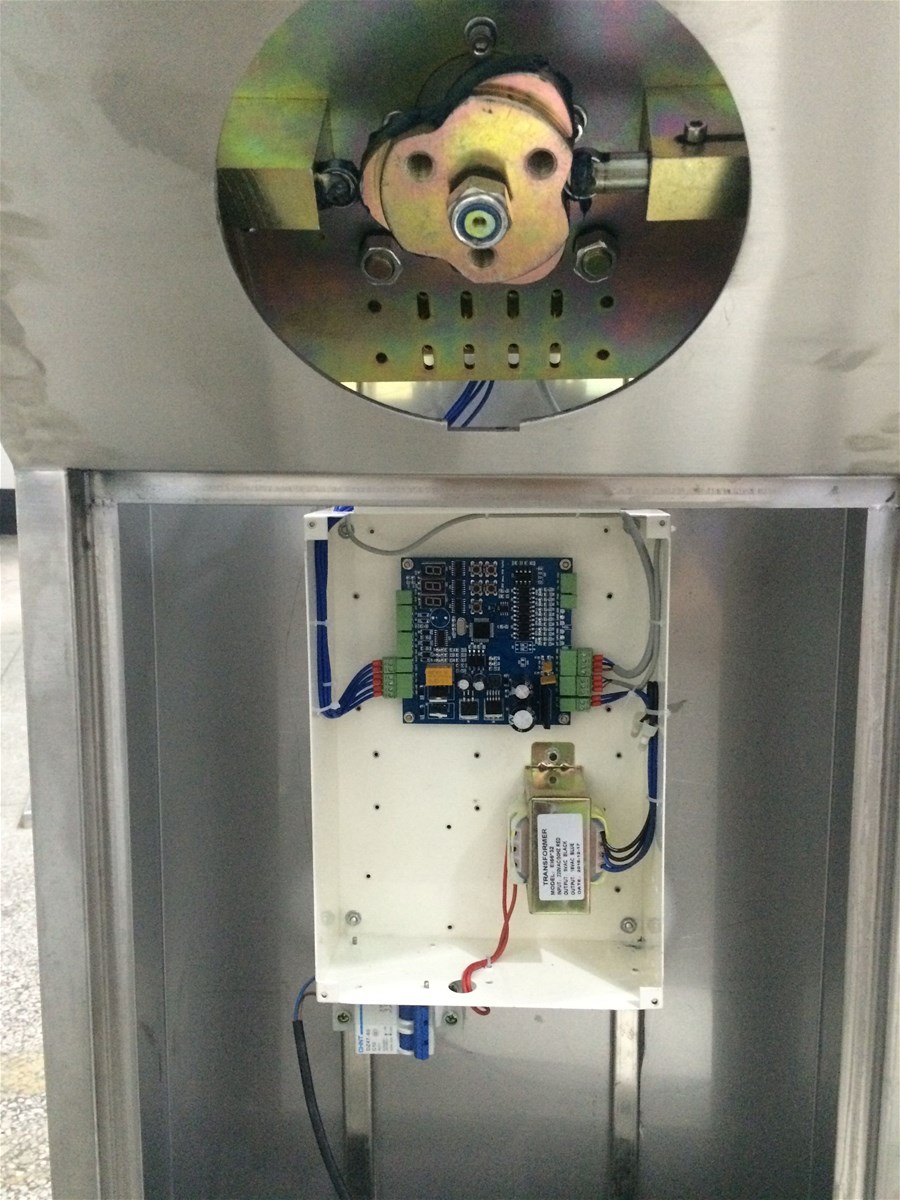

Mechanism:Control of the tripod operation is achieved by an electro-mechanical head mechanism located within the top section of the turnstile casework. It is silent in rotation and comprises the following standard features:
lA positive lock action that prevents two passage at one time
lA self centering mechanism to ensure complete rotation once the mechanism to the home position
lA hydraulic damper to ensure smooth operation and longer mechanism's life
lAnti backup device to prevent reverse rotation once the mechanism has moved to 60degree from home
Electronic parts:
1 Power supply board
1 Main control board
1 LED direction indicator
Connecting wires
Features:
lAuto-drop-arm function:the middle arm can drop down automatically (default) (or free passing) when the power is off.
*Emergency-escape function:the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
* the structure has no motor
