Used Transformer Oil Inline Oil Filter Housing

Supply Ability:	500 Set(s) per Week
Shipping:	qingdao/tianjin/shanghai port
Payment Terms:	L/C, T/T

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard export cartons and plywood cases, seaworthy package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Weight: 3kg
Brand Name: Shengda
Condition: New
Model Number: SD LFM
Structure: Cartridge
Brand replacement: Hydac
Material of filter: Aluminium/Steel
Flow: Up to 120 L/min
Pressure: 63 bar
Certificate: ISO 9001
Seals: NBR
Installation: As inline filter
Material of element: BN4HC, V, W/HC, P/HC, BN4AM, AM

Specifications

Inline OIl Filter

1. Filter Housing

-Construction

the filter housing are designed in accordance with international regulations. They consist of a filter head with screw-in filter bowl.

-Standard equipment

with differential pressure controllEd relief valve

Port for clogging indicator in filter head

2. Filter Specification

Nominal Pressure	63 bar
Fatigue Strength	at normial pressure 106 load cycles from 0 to nominal pressure
Temperature Range	-30°C to +100°C (SD LFM 140:-30°C to -10°C: Pmax=31.5 bar)
Material of Filter Head	aluminum
Material of Filter Bowl	aluminum(steel on LFM140)
Type of Clogging Indicator	VM
Pressure Setting of Clogging Indicator	2 bar( others on request)
Cracking Pressure of Differential Pressure Relief Valve	3.5 bar(others on request)
Seals	NBR
Mounting	as inline filter

3. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

4. Important information:

A. Filter housings must be earthed.

B. When using electrical clogging indicator, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

5.Type of clogging indicator:

A. plastic blanking plug in clogging indicator port

B. steel blanking plug in clogging indicator port

C. visual clogging indicator

D. electrical clogging indicator

E. visual and electrical clogging indicator

6. Photo

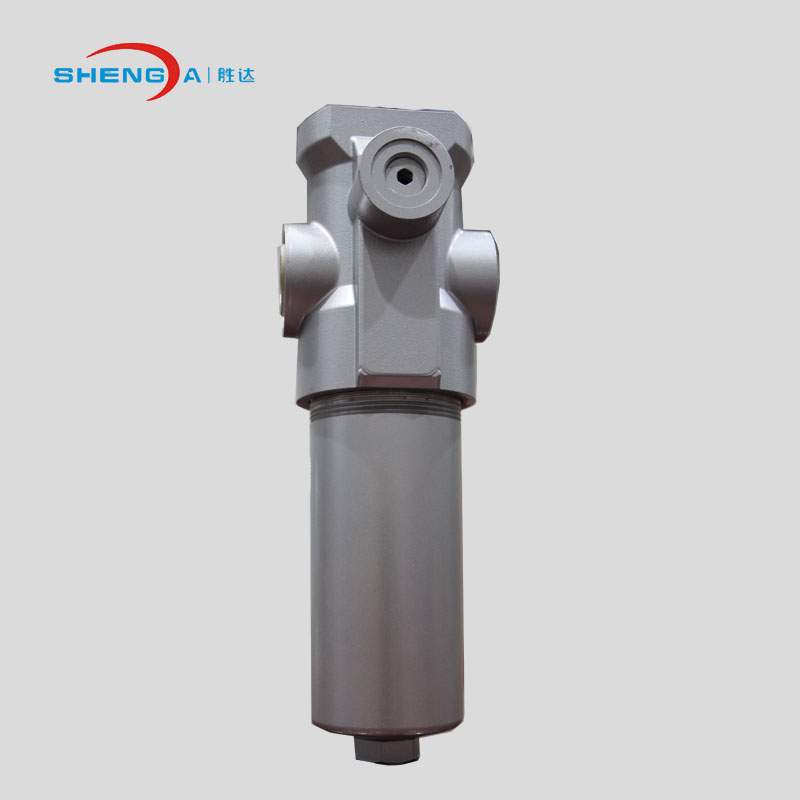

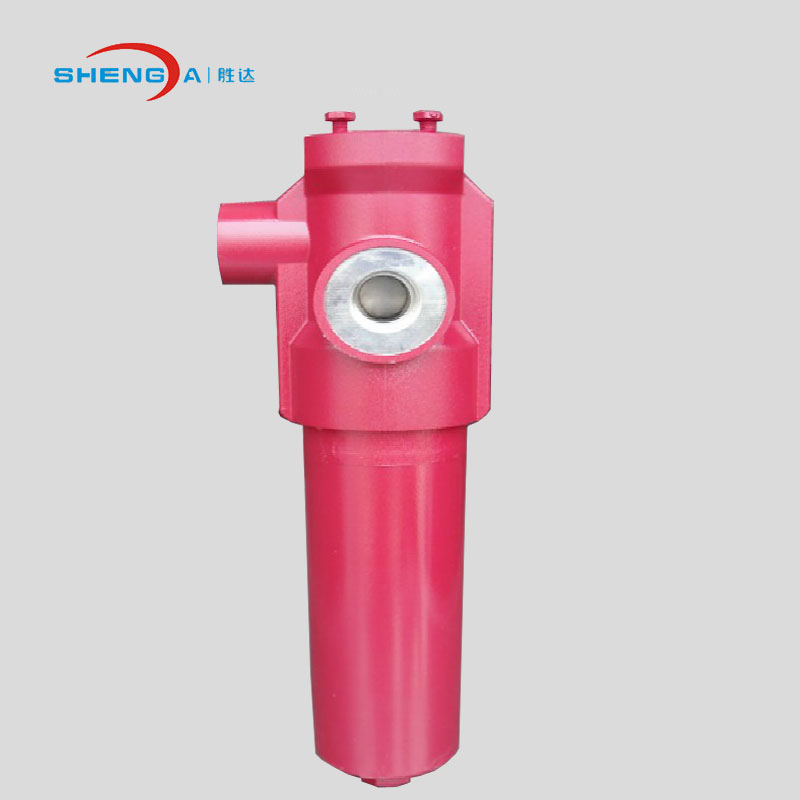

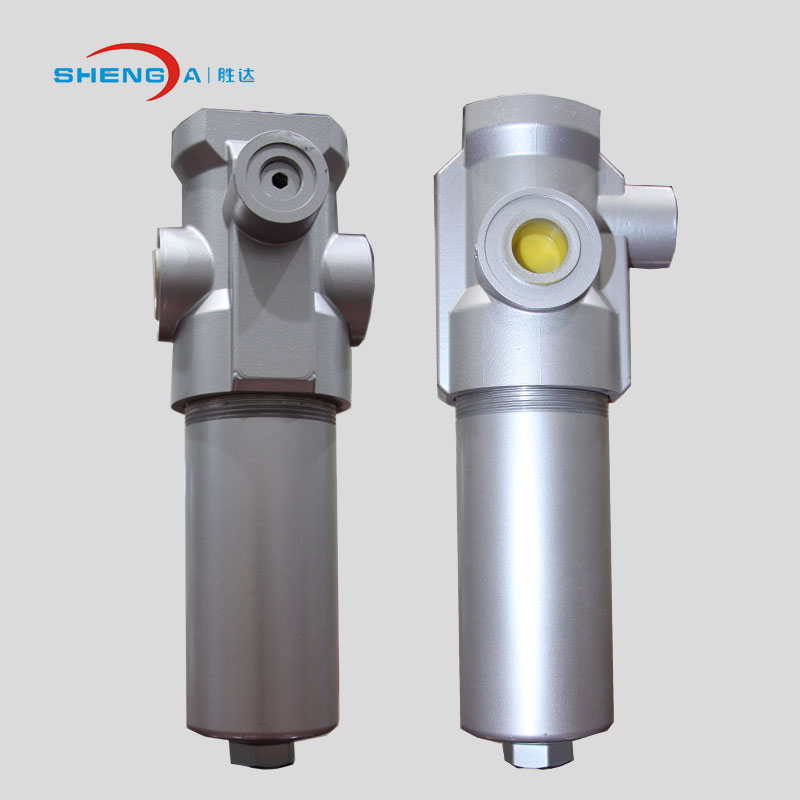

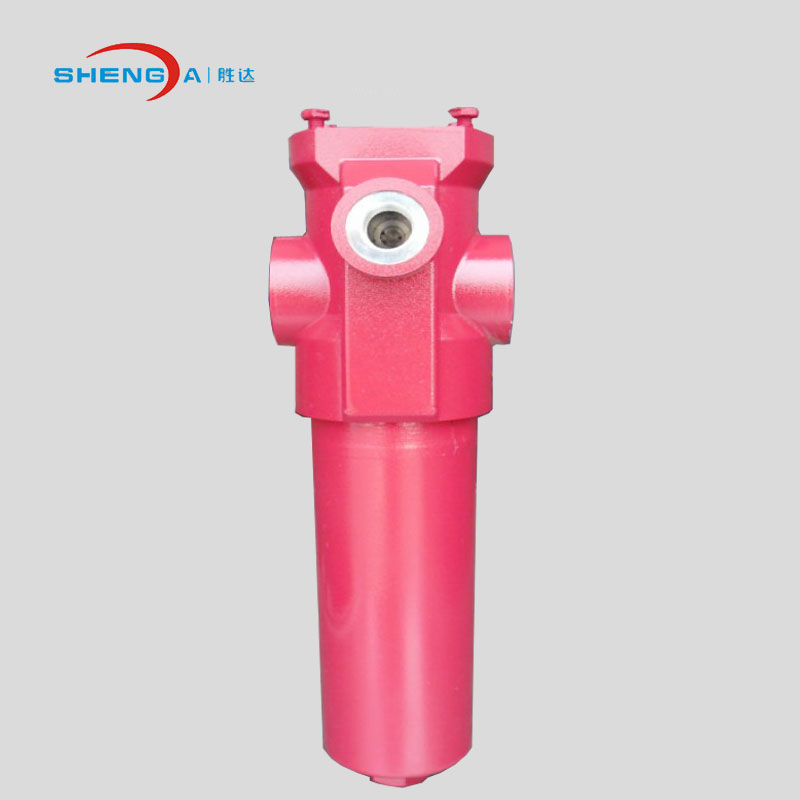

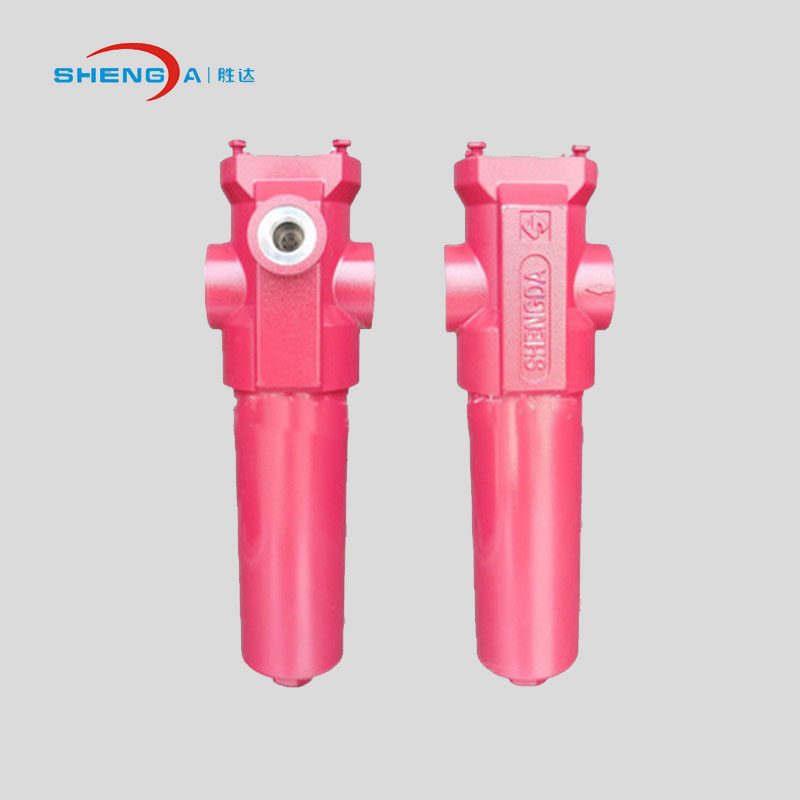

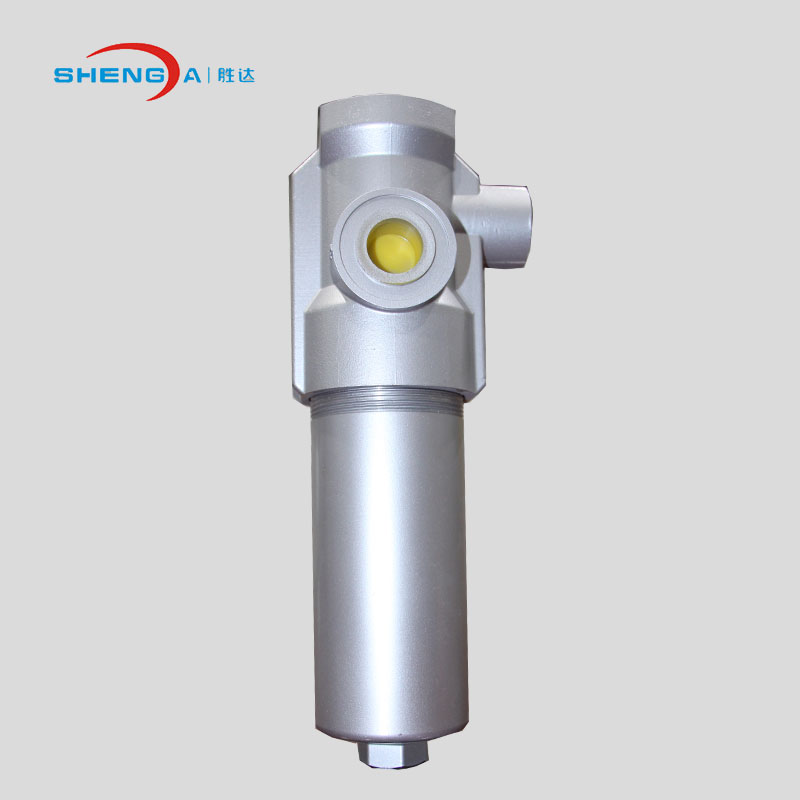

used transformer oil inline oil filter housing
