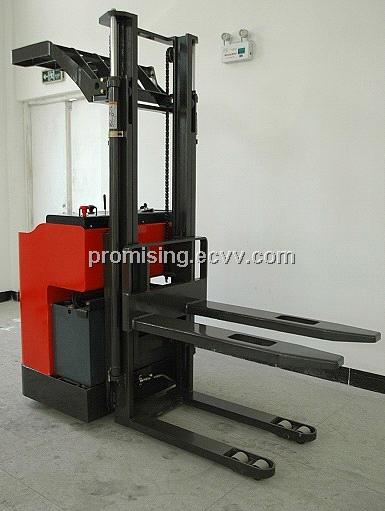

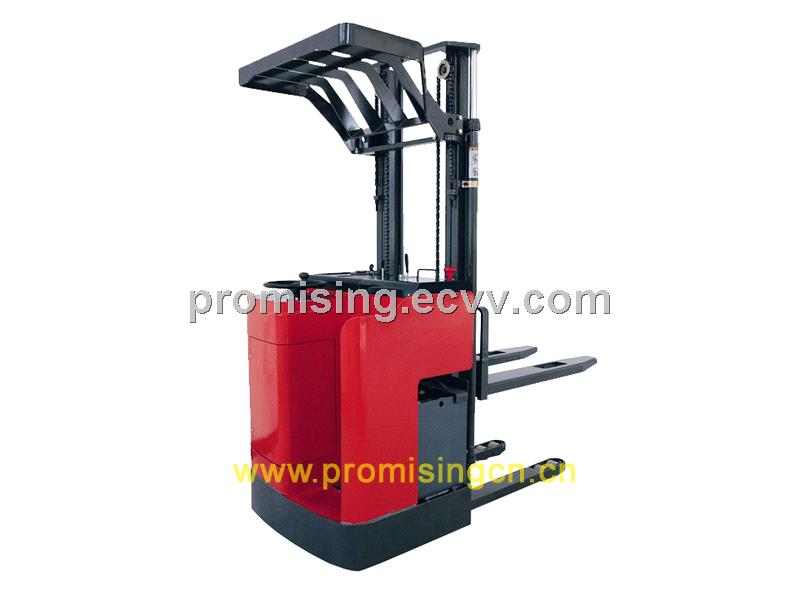

1.5T Electric Pallet Stacker
| Supply Ability: | 200 Set/Sets per Month |
|---|---|
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude Packs |
Quick Details
- Brand Name: Dragon Machienry
- Model Number: TBE15-30
- Lift Drive / Actuation: Electric Motor
- Model: TBE15-30
- Rate Load Capacity (kg): 1500
- Load Center (mm): 600
- Max. Lifting Height (mm): 3000
Specifications
Electric pallet stacker with steering wheel, steering wheel electric stacker, electric rider operated pallet stacker, stand-on electric pallet stacker, electric rider pallet stacker, electric straddle pallet stacker, electric operated pallet stacker, electric stacker with steering wheel, electric stacker truck with steering wheel, powered pallet stacker, powered stacker truck, steering wheel battery pallet stacker, battery stacker truck with steering wheel
Applications:
Steering Wheel Electric Pallet Stacker or Electric Stacker Truck with Steering Wheel is applicable to the stacking works in the narrow aisles and limited spaces and is the ideal tools for high-rack warehouses, supermarkets, workshops and containers for pallet stacking and block stacking or to handle material horizontally and load/unload goods on single deck pallet.
Features:
1. EPS steering system to make the operation easier;
2. Electronic type braking;
3. Intelligent charger that can automatically analyze the residual energy and optimize the charging process without needing any manual operation and extend the battery service life effectively;
4. Speed limit for high position to avoid the possibility of the overturning of goods when electric pallet stacker runs in high speed while goods are in a high position;
5. High Strength overhead guard to protect the operator.
Technical Specifications:
|
Model |
TBE15-30 |
|
Power Type |
Electric |
|
Operation Type |
Side Stand-on |
|
Rate Load Capacity (kg) |
1500 |
|
Load Center (mm) |
500 |
|
Max. Lifting Height (mm) |
3000 |
|
Free Lift (mm) |
0 |
|
Fork Dimensions (L*W*T) (mm) |
1150*190*56 |
|
Fork Spread (mm) |
668 |
|
Overall Length (mm) |
2132 |
|
Overall Width (mm) |
940 |
|
Height of Mast Lowered (mm) |
2037 |
|
Height of Mast Extended (with Backrest) (mm) |
3532 |
|
Height of Overhead Guard (mm) |
2252 |
|
Min. Turning Radius (mm) |
1705 |
|
Wheelbase (mm) |
1472 |
|
Front/Rear Wheel Tread (mm) |
478/577 |
|
Aisle Width with 1000*1200 Pallet across Forks (mm) |
2575 |
|
Aisle Width with 800*1200 Pallet along Forks (mm) |
2513 |
|
Max. Travel Speed (Full-load/No-load) (km/h) |
4.3/4.8 |
|
Wheel (Tyre) Type |
Polyurethane Solid Tyre |
|
Rear (Driving) Wheel (mm) |
Φ230*70 |
|
Front (Load) Wheel (mm) |
Φ80*70 |
|
Auxiliary (Balance) Wheel (mm) |
Φ150*50 |
|
Number of Wheels Front/Rear (X=Driving) |
4 / 1X+1 |
|
Battery (V/Ah) |
24/360 |
|
Charger (V/A) |
24/40 |
|
Battery Weight (kg) |
315 |
|
Service Weight (with Battery) (kg) |
1353 |
|
Drive Motor (kW) |
1.1 (AC) |
|
Lift Motor (kW) |
3.5 (DC) |
|
Type of Steering |
Hydraulic |
|
Service Brake |
Regenerative |
|
Parking Brake |
Electromagnetic |
Note:
1. Technical specifications
are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
