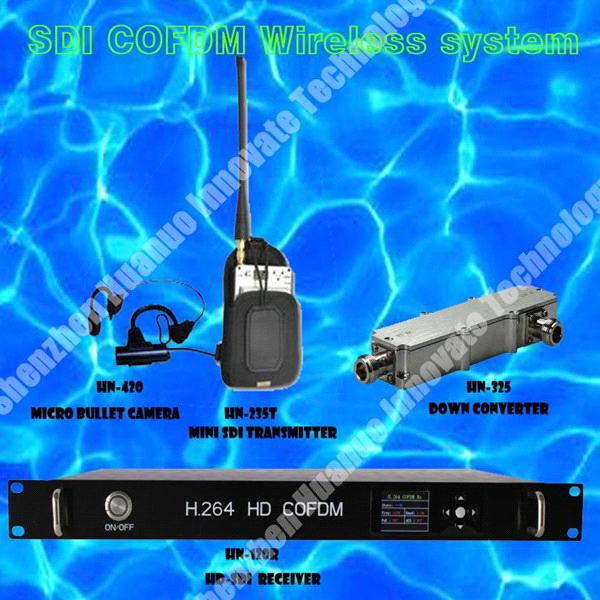

Manufacture! HN-235T COFDM SDI wireless system Transmitter and Receiver

Supply Ability:	5,000 Set/Sets per Month
Shipping:	3~5 working days
Payment Terms:	T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Huanuo
Model Number: HN-235T HN-120R
Output power: 26dBm adjustable, stepping 1dBm
Bandwidth: 2/2.5/4/8MHz
Modulation: COFDM
Decryption: AES
Transmission delay: <500ms
Video processing method: MPEG-2
Receiving sensitivity: -105dBm/2MHz
Demodulation: COFDM
Parameter control mode: Through the LCD control panel to set the relevant parameters
Audio output port: BNC interface,Analog stereo output

Specifications

HN-235T Secretly filmed SDI COFDM wireless video transmisson,highly integrated mobile NLOS ((Non Line of Sight) device,integrated design with antenna,COFDM digital modulation,MPEG-2 audio and video digital compression,small portable component.It can transfer high quality video and audio singal in a sheltered environment and high-speed mobile environment.It can be used in hidden investigation,image surveillance,realtime wireless video transmission and etc.

Features

● Using COFDM modulation technology and MPEG-2 image compression technology
● Support NLOS, transmit in high-speed movement
● DVD grade HD images and sound
● Highly integrated modular design
● High-performance, High- capacity lithium battery (replaceable)
● Small size, Lightweight, Easy to carry, Using air-cooling fin aluminum shell

Product application

The product is widely used in covert investigation, video sureilllance , wireless image transmission.

HN-235T Transmitter technology parameters

Model	HN-235T
Voltage	DC7.2V(lithium battery 7.2V/1400mA)
Current	900mA
Video input	AV: 3.5mm port,external SD analog video signals
Video input	Camera: 2.5mm port,external HN-420 HD camera
Radio Frequency	The optional 300-900MHz,stepping 1MHz ( It can be customized for other frequencies)
Output power	26dBm adjustable, stepping 1dBm
Bandwidth	2/2.5/4/8MHz
Modulation	COFDM
Decryption	AES
Transmission delay	<500ms
FEC	1/2, 2/3, 3/4, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4 adjustable
Parameter adjustment	Through the digital control panel to set the relevant parameters
Video processing method	MPEG-2
RF port	SMA
Operating temperature	-20℃～75℃
Dimensions	100mm59mm22mm

HN-120R HD receiver technology parameters

Model	HN-120R
Voltage	AC220V
Power consumption	20W
Receiving sensitivity	-105dBm/2MHz
Video Output	BNC port,SDI analog video output
Video Output	HDMI port,HD-SDI digital video output
Bandwidth	2/2.5/4/8MHz
Radio Frequency	The optional 300-900MHz,stepping 1MHz
Decryption	AES
Demodulation	COFDM
Decoding	H.264/MPEG2
Parameter control mode	Through the LCD control panel to set the relevant parameters
Audio output port	BNC interface, Analog stereo output
RF signal input interface	N type(50Ω),High performance dual channel diversity reception
Operating temperature	-20℃-70℃
Humidity	80%
Dimensions	480mm220mm44mm
