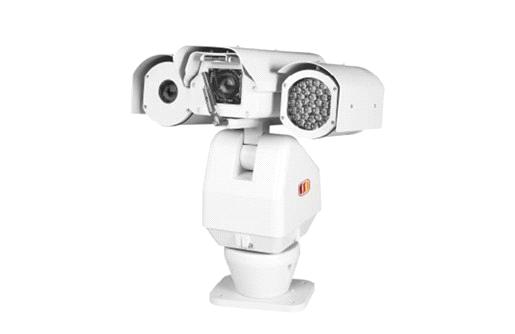

HD-IP High-duty IR&Laser PTZ Camera

FOB Price:	300.00 - 350.00 USD/Piece
Supply Ability:	10,000 Set/Sets per Week
Shipping:	Air transport
Payment Terms:	T/T, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	2 pieces per packing

Quick Details

Special Features: Waterproof / Weatherproof
Technology: NetWork
Sensor: CCD
Style: Dome Camera
Type: Digital Camera
Model Number: FG-TK200IP-RLA
Brand Name: MINI IR High-Speed Dome Camera
Frame Rate:: 30fps, 1280*960P
Compression:: H.264 Camera IP
Pan Speed: Max. 320
Sensor:: CMOS
Style:: Dome Camera
Type:: Digital Camera
Technology:: Pan / Tilt / Zoom
Function:: 256 presets, 4 groups
LED: 14*high power IR LED

Specifications

Support H.264/MJPEG video encoding, dual-stream, high compression ratio, high quality video

Support AWC,ATW,AGC,BLC, brightness, hue, saturation,contrast and sharpness

Focus length of lens is proportional with camera speed which ensure to target smoothly image

360°continuous rotation, 90°tilt range, no dead-angle

128 preset, 4 programmable tracks, 2 scanning tracks, 12 pravicy maskings

Run and power-off memory function

Display the title of PTZ camera,date and time, stream, orientation and zoom

Support two-way voice intercom

Support TCP/IP,UDP,RTSP and other IP protocols

Support motion detection, network fault detection, alarm recording and picture capture

Embedded WebServer, support IE brower,parameter set, update and user management

IP66 weather protection for outdoor

Buit-in surge and lightning protection devices

Night vision is up to 100M and 300M(with LED and laser)

Model	FG-TK200IP-RLA	FG-TK200IP-RLB	FG-TK200IP-RLG	FG-TK200IP-RLC
Cam Characteristics
Sensor	1/2.8 inch Exmor CMOS	1/2.8 inch Exmor CMOS	1/2.8 inch Exmor CMOS	1/3 inch CCD
Resolution	1920 x 1080	1920 x 1080	1920 x 1080	1280 x 720
Optic zoom	18 X optic zoom	20 X optic zoom	30 X optic zoom	18 X optic zoom
Digital zoom	-	12X digital zoom	12X digital zoom	12X digital zoom
Min illumination	0lux(IR ON)
S/N ratio	More than 48dB	More than 50dB	More than 50dB	-
WDR	Support
Focus	Auto or manual
White balance	Auto or manual
Video enhancement	White balance, mirror, color enhancement, digital noise reduction, slow shutter, auto gain control
Privacy masking	Support
Shutter speed	1/1 to 1/10000sec
Gain control	Auto or manual(-3dB-26 dB,16STEPS) max. gain limit(6dB to 28dB,12STEPS)
PTZ Characteristics
Horizontal speed	Horizontal: 360° , 0.08° to 80° /s
Vertical speed	Vertical:180°, with auto-flip 0.08° to 60° /s
Preset	128 presets
Scanning tracks	2 tracks
Preset tour	4 programmable tours
Self-learning tracks	4 self-learning tracks
Idle protection	0 to 240s
Boot-up action	Preset, tracks
IR range	300M
Protection	IP66
Work Temp	-30°C to 55°C , 95% HR
Power	24V AC, max. 55W
IP Characteristics
Compression	H.264
Dual-stream	Main-stream: 1920×1080			Main-stream:720 1280×960)
	Sub-stream:1080×720			Sub-stream:1280×720
Frame rate	1～25fps
Overlay caption	Support channel name, date, stream information overlay caption, the position is adjustable
Image adjustment	Brightness, contrast, saturation
Audio encoding	PCM G.711, support 32K stereo
Interface	1×10Base-T/100Base-TX, RJ45
Alarm I/O	1CH× In, 1CH× Out(optional)
Audio I/O	1CH× In, 1CH× Out 3.5mm audio interface
Protocols	TCP/IP, ARP, ICMP, FTP, RTP/RTCP, NTP, DNS, DDNS, SNMP, PPPoE
Application functions	Motion detection, alarm linkage, audio intercom
Configuration and maintain	Support WEB brower to configurate and view video
	Access NVR to manage parameter configuration and running statement
Intergration	SDK
