Tangshan Wanjie Machinery Equipment Co., Ltd.
China Manufacturer with main products: Offset Label Pritning Machine, Letterpress Label Printing Machine, Flexo Label Printing Machine, Automatic Label Die-Cutting Machine, Label... |

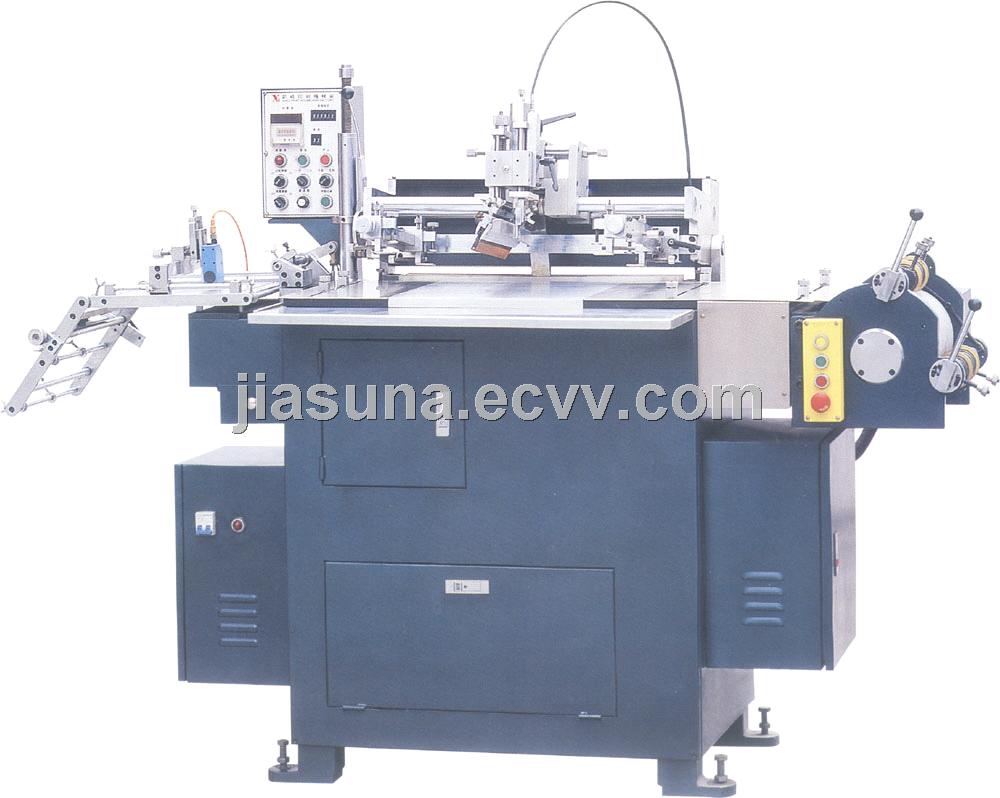

WJ-320S Reel Type Silk Screen Printing Machine
| Supply Ability: | 10 Set/Sets per Month |
|---|---|
| Shipping: | SEA |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | 1.in standard export wooden cases 2.as the customers' reasonable requires |
Quick Details
- Condition: New
- Plate Type: Screen Printer
- Brand Name: Wanjie
- Model Number: WJ-320S
- Usage: Label Printer,Cloths Printer
- Automatic Grade: Automatic
- Color & Page: Multicolor
- Voltage: 220v
- Gross Power: 7.5kw
- Dimensions(L*W*H): 1750*600*1800
- Weight: 300KG
- Certification: ISO9001, CE
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Full automatic muti-color printing sensor positioning, color registration repeatedly,computer controlled,simple in operation, accurate in coloring, so its able to improve the printing quality.
Flexible setup of printing speed, counting printing number, and automatic shutdown as per set number.
Standard functions:automatic paper feeding, printing, CNC extensioin, drying and rewinding.
Basic configurations:paper feeding machine, main machine, hot air drier machine, and a standard toolkit.
Optional configurations:UV drying system,paper slitting machine, and rewinder.
Application materials:sticker paper, adhensive tapes, PVC, PET, ribbons, aluminum foils,soft circuit boards,mobile telephone keypad, and other packaging materials.
Web Width | mm | 320 |
Screen Frame. | mm | 450*450 |
Max. Printing Area. | mm | 300*300 |
PaperRange | gsm | 80-300 |
Printing Speed | times/min | 4200 |
Main Power | kw | 0.75 |
Oven | kw | 4.5 |
Printer Dimension(LXWXH) | mm | 2600*950*1450 |
Printer Weight | kg | 800 |
Oven Dimension | mm | 1750*600*1800 |
Oven Weight | kg | 300 |
Voltage and Current Frequency |
| 380 V -Three phase; 50 Hz |
