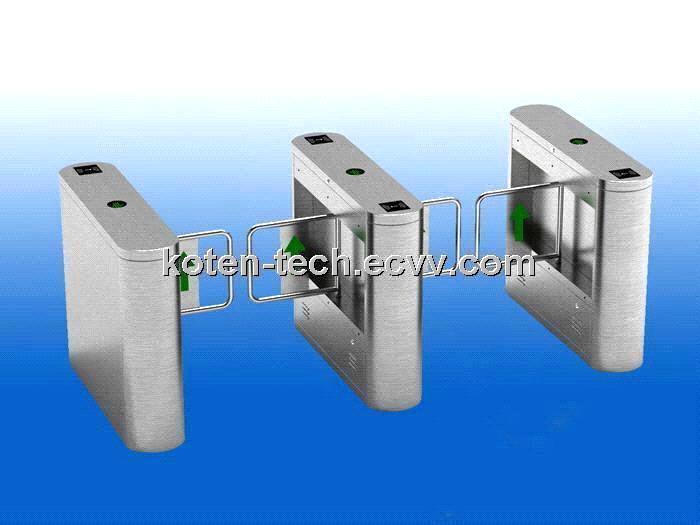

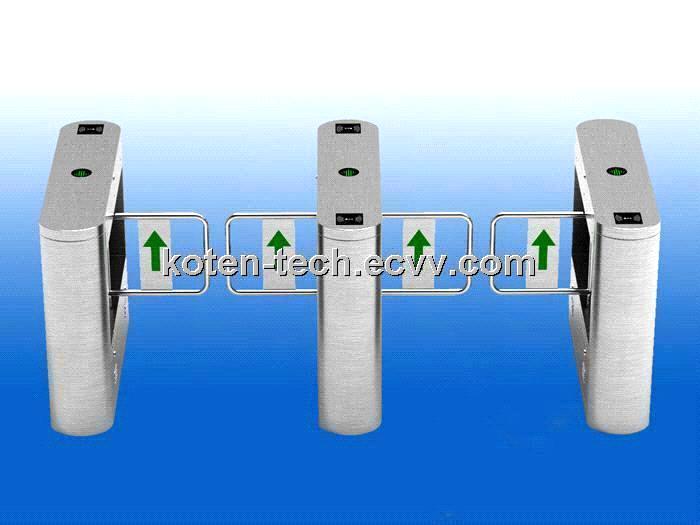

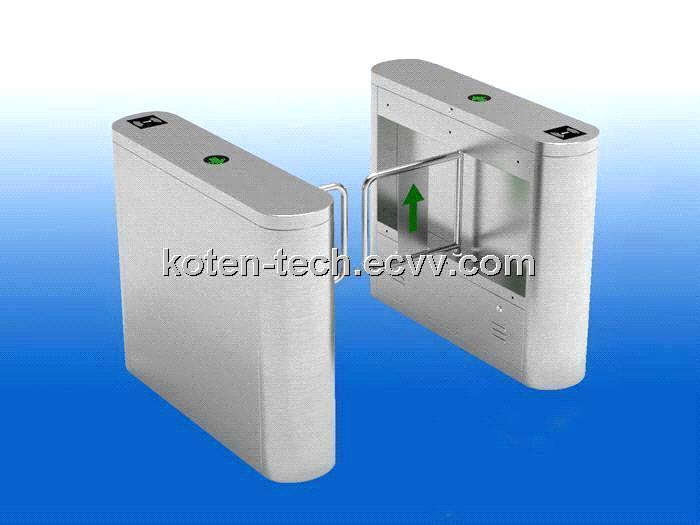

RFID Swing Barrier Gate for Entrance Management KT208
| Supply Ability: | 500 Unit/Units per Month |
|---|---|
| Shipping: | 3-15days, shipment at Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | packed in wooden cases, inner packed in cartons package size: 126*36*112cm |
Quick Details
- Brand Name: Koten
- Model Number: KT208
- Connection: RS485
- Dimension: 1200*280*1000mm
- Card Type: EM, Mifare depends on reader mounted
- Communication: RS485, distance<=1200M
- Material of housing: SUS304 stainless steel
- swing arm length: 250-400mm
- Lane width: 500-900mm
- Compability: all access control devices can be integrated
Specifications
RFID Swing Barrier Gate for Entrance Management KT208
D: 1200*280*1000mm,
Lane width: 500-900mm,
Material: SUS304 stainless steel of thickness 1.5mm,
wiredrawing finished,
thickness 1.5mm,
Bi-direction, with card reader mounting brackets, LED direction indicators,
Barrier open/close after Infrared induction adjustable,
Infrared induction anti-nip function, sound alarm when illege breaking in,
barrier automatically open when power off, automatically close when power on,
5 paris of Infrared sensors
Specification:
|
Framework Material |
304# stainless steel |
|
Lane width |
500-900mm |
|
Entry/exit direction |
One-way or two-way adjustable |
|
Working Voltage |
AC85-230V 50/60Hz, customised |
|
Motor |
DC 24V brushed motors |
|
Input interface |
Dry contact signal or 12V level signal, or 12V pulse signal with pulse width> 100ms, driving electricity> =10mA |
|
Communication interface |
RS485, distance ≤1200M |
|
Speed |
40 people per minute (normal open), 25-30 people per minute (normal closed) |
|
Closing/opening time |
1-2s |
|
Time for entering into passing status after power on |
3s |
|
Time for automatic reset after breakdown |
10s |
|
Temperature |
-10---50cels |
|
Relative humility |
≤90%, no-condensation |
Features:
1. Breakdown self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Mechanical anti-pinch structure enables motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
4. Anti-rushing function: The gate lock automatically without open signal
5. Gate synchronization is adjustable.
6. Automatic resetting function: During opening, the system will cancel access this time if nobody pass in given time.
7. It is easy to change normal open or normal close mode for different requirement.
8. It is easy to be integrated with magnetic card, barcode card, ID card, IC card, etc
9. One-way or two-way traffic flow available
10. It is able to remote control by computer.
11. Automatic delay reset process 5s after open.
12. Open automatically when power off and close automatically when power on.
13. Sound & light alarm, including illegal break-in alarm, close automatically for reverse entry, etc
14. Anti-pinch function is available.
15. Infrared reset function (Optional).
Peripherals options:
1. Electronic counter
2. Access control system
3. E-ticketing system
4. Time attendance system
5. Exit button
6. Remote controller
Application:
Office
Science & education institutes
Commercial service place
Places of leisure
Transport station
……
