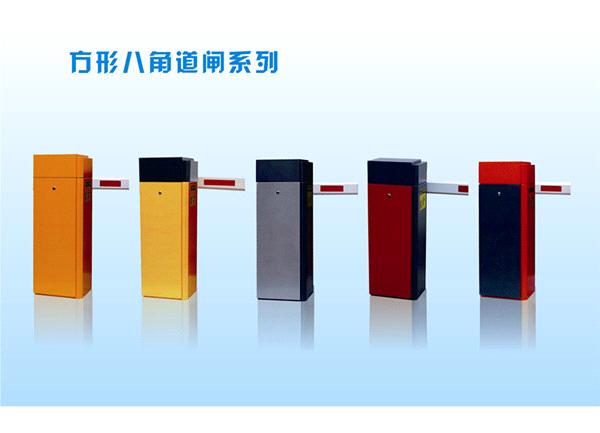

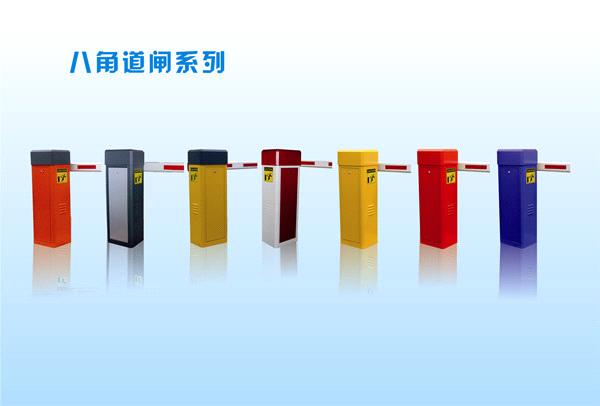

Automatic Parking Traffic Boom Barrier Gate

Specifications

Main functions

l Push-to-automatic learning feature and automatically adapt to different motor and load.

l Vehicle detector selectable, so the function of "arm down when car passed" , " anti damage to cars" and "release for car team" can be set.

l Control handles with "manual / automatic" options.

l Wireless remote control can be used for long-distance and flexible control.

l Anti-stress device such as Infrared or radio waves can be used in this equipment, to reduce the incident of car damage.

l Optional RS485 or RS232 serial communications interface, simple and reliable communication protocols for easy control on the remote control with state feedback.

l Provide various modes of operation and operating parameters through the code switch settings, be able to satisfy users of different functions.

l High-speed Barrier unique features:

u Obstacle automatic detection: during lowing, arm will rise up again when detected the obstacle; while during rising, the arm will stop and unlock when detected obstacle to prevent any incident. The obstacle detection sensitivity has four degrees which is set through code switch.

u automatically unlock when no power: when gates power on and work properly, if arm is horizontal or vertical, gates will lock arm to ensure no damage or incident; when gate power off, the arm will be automatically unlock for the movements by hands. Arm has an anti-collision mechanism which can maximally reduce the damage from vehicle collision to the gates.

Electrical characteristics

system integration, powerful;

anti-jamming software and hardware watchdog ensure that no Death of single chip;

use photoelectric sensors for place detection, non-contact work, and never migration;

heavy and weak current completely separated, motor control usingphotocoupling, zero-turn-on technology, so that the control board work with high reliability and no interference;

input and output signals of electrical isolation to ensure system reliability;

advanced motor with thermal protection, when temperature is higher than 145 degrees, the power is automatically cut off, motor will not be burnt easily;

Motor high reliability, long life, running a small vibration, low noise, stable speed, an instant start, back and stop;

use rising and lowing overtime protection, to ensure that no arms run-off;

mechanical features

Use precise sine bar linkage to make sure the gate for ease open, slow stop and no stopping impact movement.
chassis use steel plate with special arts, surface with high-level automotive paint or powder coating which is corrosion and beautiful, also can avoid fading caused by ultraviolet radiation;

chassis using waterproof, moisture-proof, dust-proof design;

arm adapt special aluminum material can be posted the two-color reflective film outside to make it clearly visible at night;

For use in different occasions (e. g. In a highly limited space underground car parks), we can manufacture arms according customers' requirements.

Arm can be installed on any chassis left or right side of the (default is on right side).
