CNC Ball Valve Spherical Grinding Machine

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: muyea
Model Number: QM880

Specifications

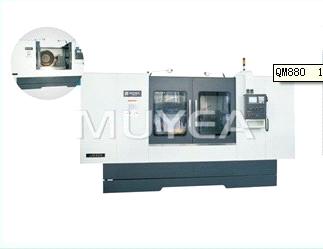

CNC Ball Valve Spherical Grinding Machine

this CNC ball lapping machine by means of the simultaneously rotating of the balls and the grinding plates to lap the ball surface

*by means of machine X direction movement to centralize the ball

*by means of machine Z direction movement to precisely control the ball dimension

*by means of end frame movement and replace the rotating grinding plate in order to lap difference specification of the balls from 16''-24''

*by means of hydraulic device to support the balls and top end stretch

*by means of top end and balls simultaneously rotating, eliminate the balls and the top end relative movement.

this machine is made up of basic parts( body,slide seat,work table etc) and main spindle box, Spindle box full automatic constant-temperature circulation cooling machine, head frame, end frame,lapping device, end frame movement device, workpiece auxiliary supporting device,lubricating,cooling,drain and protecting devices, and electrical hydraulic parts etc.

2. Main Data and specifications

Item	Unit	Model: QM880
Item	Unit	Model: QM880
Max Ball Lapping Diameter	mm	Φ560-φ880
Max Ball Bore Diameter(≈)	Inch	24
Distance between top central line to the table	mm	450
Max Ball Weight	Kg	3500
the power of Main Spindle Motor	kw	75
Main Spindle Rotating Speed Range	Rpm	1002000
the Power of the lathe-head Motor	kw	7.5
Lathe-head Rotating Speed Range	Rpm	6-125
the Journey of the X/Z direction	mm	800/600
the adjusting range of the end frame	mm	320
Head/tail frame apex		Mohs 6"
the precision of orientation of X/Z axis	mm	±0.005
the precision of repeat orientation of X/Z axis	mm	±0.003
Ball Roughness degree	Ra	0.4-0.2
Ball Roundness	mm	±0.01
Approx. Dimension(LXWXH)	mm	400027002400
Approx Net Weight	Kg	18000

Configuration list for CNC BALL LAPPING MACHINE QM380

No.	Name of product		Specification	Place of origin		Remark
1	Fanuc system		Oi-MD	Japan
2	Spindle drive motor			China
3	Actuating motor			Japan
4	Transducer			China
5	Coupling			China
6	NSK bearing			Japan
7	Ball screw			China
8	Locknut of ball screw			China
9	Synchronous pulley and bands			China
10	Hydraulic pressure station			China
11	Oil temperature cooler			China
12	Electricity cabinet air-conditioner (Heat exchanger)			China
13	Electrical lubricating system			China
14	Magnetic tape filtration separation assembly			China
15	Imported electric appliance
Accessories
No.	Name of product	Specification			Remark
1	Head/tail frame apex	Mohs 5#			Each 1 pcs
2	Abrasive disk and fixture	Total 4 pcs in different specification			1 set
