Jinan Hongye CNC Machine Co., Ltd.
China Manufacturer with main products: CNC Machine, CNC Routers, CNC Engraving Machine, Woodworking Engraving Machine, Advertising Engraving Machine, Metal Engraving Machine, Mable... |
15th
Home
>Products Catalog > woodworking cnc router > 2014 hot vacuum table machine automatic tool changer router for wood furniture with low price

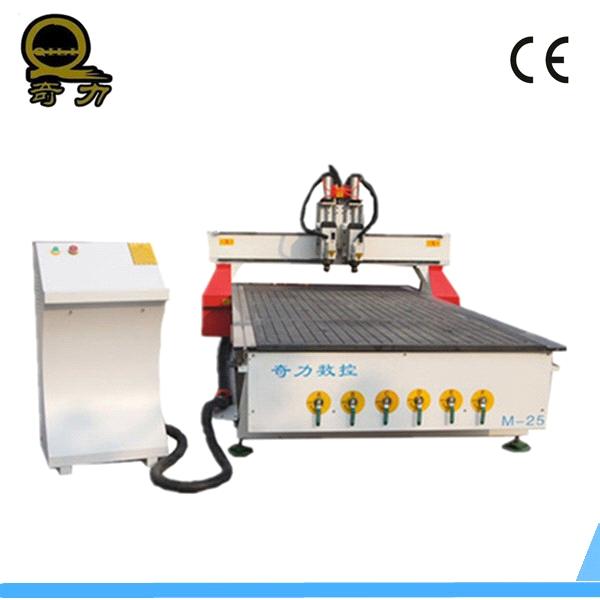

2014 hot vacuum table machine automatic tool changer router for wood furniture with low price
| FOB Price: | 4,000.00 - 8,000.00 USD/Set |
|---|---|
| Supply Ability: | 400 Set/Sets per Month |
| Shipping: | qingdao guangzhou tianjin port |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard plywood case |
Quick Details
- Condition: New
- Engraving Area: 1300*2500mm
- Engraving Speed: 25.000mm/min
- CNC or Not: Yes
- Cooling Mode: Air Cooling
- Brand Name: QL
- Model Number: QL-M25
- Dimension(L*W*H): 1300*2500*200mm
- Certification: CE,SGS
- After-sales Service Provided: Engineers available to service machinery overseas
- Working area: 1300*2500*200mm
- Machine Structure: Square tube lathe bed vacuum table
- Work Holding: By Vacuum
- Working Speed: 25.000mm/min
- Spindle: 4.5kw air-cooling
- Available Tools: 3.175-12.7
- Drive system: Stepper motors
- Working Voltage: AC380V 50HZ
- Command Code: G Code
- Control system: DSP Hand-held
- optional parts: Dust collection tool cooling system with sink instead of vacuum system
- supplier: factory direct supply
Specifications
2014 hot vacuum table machine automatic tool changer router for wood furniture with low price
Advantages :
1.multi-heads can change alternate
2.suitable for mass production
3.carv several same patterns at same time
4.factory direct sale and supply good after sales service
Technical Specification :
Model | QL-M25 | Optional |
Working area | 1300*2500*200 | Customization is available |
Machine Structure | Square tube structure lathe bed and vacuum table | Vacuum table with T-slot |
Tool Magazine | Pneumatic tool changer | 8/10 pcs |
Work Holding | By Vacuum | By vacuum and clamps |
Overall Dimensions | 2250*3300*2000 |
|
Precision | 0.07 |
|
Positioning accuracy | 0.02 |
|
Repeatability | 0.02 |
|
Idling Speed | 30.000 |
|
Working Speed | 20.000 |
|
Spindle | 4.5 Air-cooling |
|
Available Tools | Φ3.175- φ12.7
|
|
Drive System | Japanese YASKAWA Servo System | Panasonic |
Working Voltage | AC380V±30V, 50HZ |
|
Command Code | G Code |
|
Control System | Taiwan Syntec System | Taiwan LNC System or NcStudi |
Features :
1.Alternate work of multi-heads achieves rapid auto tool changing, saving time fo manual tool changing for higher process speed
and precision.
2.Simultaneous work of multi-head may carve several same pattems at same time to enhance the work efficiency.
3.Spaces between spindles can be adjusted to different material in bulk.
4.4.5kw Air-Cooled spindle with longer life, cooling without water
5. Advanced DSP controller, convinent for tool setting and travel control.
P.S.
All the parts of machine can do some changes to meet your requirements ,
such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
After sales service we supply :
1.We will deliver the machine as soon as possible. We will deliver the normal models
within 7 days after depost payment For abnormal models, the delivery time is at most
15 days .
2.Our technicians will provide on-site service to customers in china. We will supply the
whole day on-line service to foreign customers. According to foreign customer's
requirement, we will arrange technicians go abroad to install or maintenance the
mahcines.
3.Within the warranty period and the machine parts were damaged
under normal using condition, we will offer new parts for free.
4.We will offer software upgrades for free.
5.The company will research the staffs service attitude aperiodically to
improve the service satisfaction.
Applications and samples show :
Wood Procucts Processing: Sewing machine table, electrical counter table, sports equipment.
Furniture decoration industry: a large area flat plate engraving,wood,panel furniture carving,
wood art murals, wood cabinet doors carving.
Musical instrument industry: instrument three-dimensional surface engraving, shape cutting.
Electronic industry: Circuit board, insulation material. LED display screem.
Packing and shipping show :
Exhibition show:
We are looking for agents all over the world .
If you have any need for more infromatin feel free to contact me !!!
