Home >Products Catalog > 3 Axis CNC Stepper Driver,80VDC/7.8A/256 Microstepl replacing MD882

3 Axis CNC Stepper Driver,80VDC/7.8A/256 Microstepl replacing MD882

Supply Ability:	1,000 Piece/Pieces per Day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: wantai motor
Model Number: N201261116157
Certification: CCC,CE,ROHS,UL,VDE
Type: Synchronous Motor
Protect Feature: Waterproof
Voltage(V): 12-36
Efficiency: IE 2

Specifications

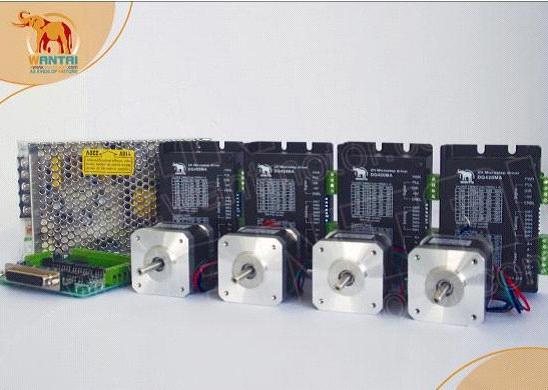

4 PCS Nema 17 with 4000g.cm, 1.7A current, 4-Leads, 40mm body length, 5mm shaft diameter, 2 phase,

4 PCS DQ420MA with 1.7A peak current, 12-36VDC, 128 Microstep

1 PC 200W,24VDC,8.3A Power Supply,

1 PC Breakout board Board & Cable

1, Stepper Motor

Technical Specifications

Part No.:                                    42BYGHW609
Frame Size:                               NEMA17
Step Angle:                                1.8 degree
Voltage:                                     3.4V
Current:                                   1.7 A/phase
Resistance:                               2.0 Ohm/phase
Inductance:                               3.0 mH/phase
Holding torque:                         4000g-cm      56OZ-IN
Rotor inertia:                             54 g-cm2
Detent torque:                           0.22 kg-cm
Number of wire leads:               4
Weight:                                     0.24 kg
Length:                                     40mm
Motor Shaft:                             5mm
Front Shaft length:                   20mm

We offer customer's designed service! If you need special size, please offer us your size requirements, so that we can manufacturer the exact models for you, thanks :)

Introduction:

DQ420MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 12VDC to 36VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 20mm to 42mm outside diameter and less than 2.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor to run smoothly almost without noise and vibration. Holding torque when DM420A rund at high speed is also significantly higher than the other two-phase drivers, what's more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.

Features:

l High performance, low price
l Average current control, 2-phase sinusoidal output current drive
l Supply voltage from 12VDC to 36VDC
l Opto-isolated signal I/O
l Overvoltage, under voltage, overcurrect, phase short circuit protection
l 8 channels subdivision and automatic idle-current reduction
l 8 channels output phase current setting
l Offline command input terminal
l Motor torque is related to speed, but not related to step/revolution
l High start speed
l High holding torque at high speed

1, Stepper Motor

Technical Specifications

Part No.:                                    42BYGHW609
Frame Size:                               NEMA17
Step Angle:                                1.8 degree
Voltage:                                     3.4V
Current:                                   1.7 A/phase
Resistance:                               2.0 Ohm/phase
Inductance:                               3.0 mH/phase
Holding torque:                         4000g-cm      56OZ-IN
Rotor inertia:                             54 g-cm2
Detent torque:                           0.22 kg-cm
Number of wire leads:               4
Weight:                                     0.24 kg
Length:                                     40mm
Motor Shaft:                             5mm
Front Shaft length:                   20mm

We offer customer's designed service! If you need special size, please offer us your size requirements, so that we can manufacturer the exact models for you, thanks :)

Introduction:

DQ420MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 12VDC to 36VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 20mm to 42mm outside diameter and less than 2.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor to run smoothly almost without noise and vibration. Holding torque when DM420A rund at high speed is also significantly higher than the other two-phase drivers, what's more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.

Features:

l High performance, low price
l Average current control, 2-phase sinusoidal output current drive
l Supply voltage from 12VDC to 36VDC
l Opto-isolated signal I/O
l Overvoltage, under voltage, overcurrect, phase short circuit protection
l 8 channels subdivision and automatic idle-current reduction
l 8 channels output phase current setting
l Offline command input terminal
l Motor torque is related to speed, but not related to step/revolution
l High start speed
l High holding torque at high speed

1, Stepper Motor

Technical Specifications

Part No.:                                    42BYGHW609
Frame Size:                               NEMA17
Step Angle:                                1.8 degree
Voltage:                                     3.4V
Current:                                   1.7 A/phase
Resistance:                               2.0 Ohm/phase
Inductance:                               3.0 mH/phase
Holding torque:                         4000g-cm      56OZ-IN
Rotor inertia:                             54 g-cm2
Detent torque:                           0.22 kg-cm
Number of wire leads:               4
Weight:                                     0.24 kg
Length:                                     40mm
Motor Shaft:                             5mm
Front Shaft length:                   20mm

We offer customer's designed service! If you need special size, please offer us your size requirements, so that we can manufacturer the exact models for you, thanks :)

2, Matching Stepper Motor Driver DQ420MA with 1.7A,12-36VDC/128Microstep.


Introduction:

DQ420MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 12VDC to 36VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 20mm to 42mm outside diameter and less than 2.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor to run smoothly almost without noise and vibration. Holding torque when DM420A rund at high speed is also significantly higher than the other two-phase drivers, what's more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.
