Home >Products Catalog > CNC Router kits 3Axis Nema 42 Stepper Motor 3256 OZ-IN,6A CNC Mill & Cutting

CNC Router kits 3Axis Nema 42 Stepper Motor 3256 OZ-IN,6A CNC Mill & Cutting

Supply Ability:	1,000 Piece/Pieces per Day

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	carton

Quick Details

Condition: New
Brand Name: wantai

Specifications

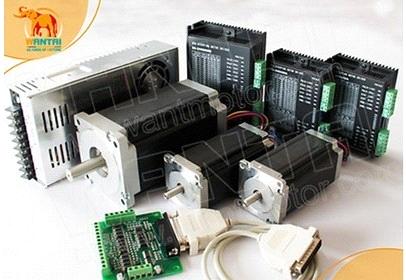

This item includes:

3 PCS Nema 42 Stepper Motor With 3256 OZ-In Holding Torque,

3 PCS Stepper Motor DriverDQ2722M, 110V-220VAC, 7.0A, 200 Microstep,

1 PC Breakout Board & 1 Parallel Cable for free offering

The Breakout Board is offered to you for free to buy this item above, so that you

can set this kit up, and work in better condition.

Note: Alternating current on driver to connect the power,there is no need for any

power supply to convert.

1, stepper motor

Technical Specifications
Part No.:                           110BYGH150-001
Frame Size:                     NEMA42
Step Angle:                     1.8 degree
Voltage:                           5.44VDC
Current:                          6.8 A/phase
Resistance:                    0.8Ohm/phase
Inductance:                    15mH/phase
Holding torque:              230 Kg-cm        3256oz-in
Rotor inertia:                  1090 g-cm2
Number of wire leads:  4
Weight:                           8.4kg
Length:                           150mm

2, Stepper Motor Driver DQ2722M

The DQ2722M is full digital 2 phase stepper driver based on DSP control. The drive voltage of
which is from 110V to 220VAC. It is designed for use with the 2 phase hybrid stepper motor of
all kinds with 86mm to 130mm outside diameter, regulated phase current 1.2A to 7.0A.
The circuit that it adopts is similar to the circuit of servo control which enables the motor
run smoothly without noise and vibration. The highest micro step is 60000ppr. It is widely
used in middle and big size numerical control devices such as curving machine, CNC machine,
computer embroider machine, packing machine and etc.

FEATURES

High performance, low price
16 channels constant angle, constant torque micro steps, highest micro step: 40000ppr
Highest response frequency: 200Kpps
Current of winding will be reduced by approximately 50% when no step pulse command
is received for 0.1 second
Opto-isolated signal I/O
Drive current is adjustable in 16 channels from 1.2A/phase to 7.0A/phase
Single power supply from 110V to 220VAC
Phase terminal memory function (motor phase terminal is memorized after input pulse train
stopping 5s and it is recovered when stepper driver power on or signal MF changes from
low level to high level)

More Order quantites, more discount!!!

Our products are mainly used in robotization, Spinning Automatization, Printing, Packing,
Medica Machine, Make-up Equipment, Communication, Household Appliance, Water Pump,
Milling Machine, Engraver Machine, CNC Routers.. etc automatic equipment of various trades.

We product all kinds of motors & driver. And we can manufacture products according
to our customer's design.Currently we are looking for qualified stocking distributors with
competitive price and good discount in all United WORLDWIDE for mutually beneficial
long-term relationship. We try our best to support our distributors and business
partners to develop more market percentage.

Please join us, let's create the glorious future together!
