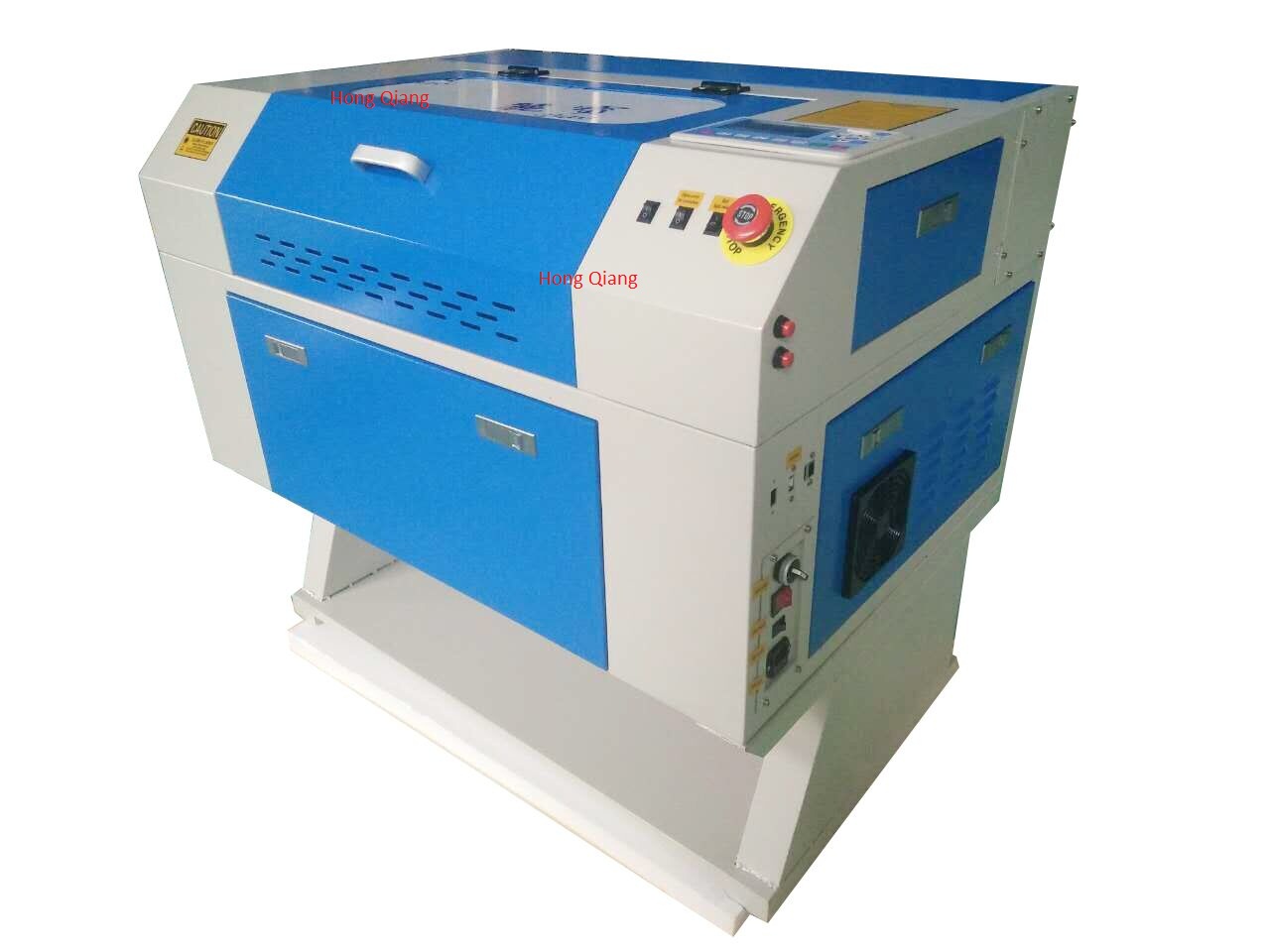

CNC CO2 Laser Engraving Cutting machine for stone/marble (HQ3050)

FOB Price:	2,000.00 - 4,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	Negotiable
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Plywood box

Quick Details

Application: Laser Engraving
After-sales Service Provided: No overseas service provided
Dimension(L*W*H): 1020*650*530mm (40.8*26*21.2")
Model Number: HQ3050
Brand Name: HONG QIANG
Graphic Format Supported: BMP,DST,DWG,DXF,DXP,LAS,PLT
Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood
Cooling Mode: Water Cooling
CNC or Not: Yes
Engraving Speed: 0-60000mm/min
Engraving Area: 300*500mm
Laser Type: CO2
Condition: New
HQ3050: HONG QIANG

Specifications

Technical Index:

Laser power: 50W (OPTIONAL)

Laser Type: CO2 Sealed-off Glass-tube laser

Power supply: AC220V +/- 10%, 50HZ/AC110V+/- 10%, 60Hz

Max. Engraving size: 500 * 300mm

Engraving speed: 0-60000mm/min

Platform: Lift platform/Fixed platform

Positional Accuracy: <0.01mm

Number of Hanged Line: 60 lines

Min. cutting character: Chinese character: 2x2mm, English letter: 1x1mm

Operating Temperature: 5℃-35℃

Size: 350 * 416 * 1032mm

Resolution: <4500dpi

Control Configuration: DSP

System Environment: WINDOWS2000/WINDOWS XP/Vista/Win7

Type of Cooling: water-cooling and protection system

Support Figure Format: ALL FORMTS RECOGNIZABLE BY CORELDRAW, AUTOCAD

Cut by color separation: reaches 256 colors to cut

Water-break protection: Yes

Gradient Engraving: Yes, gradient adjustable
Machine Dimension: 1020*650*530mm (40.8*26*21.2")
Machine Weight: 50/65kgs

Packing: wooden box package

Packing Dimension/Weight: 1140*770*750/106kg

Applicable Industry:

Cutting, engraving, through-carved, hole drilling on wood and bamboo, acrylic, craft and gift, crystal, marble and granite, ceramic, glass and other non-metal materials. It is widely used in electronic, craft and gift, advertising industries.
