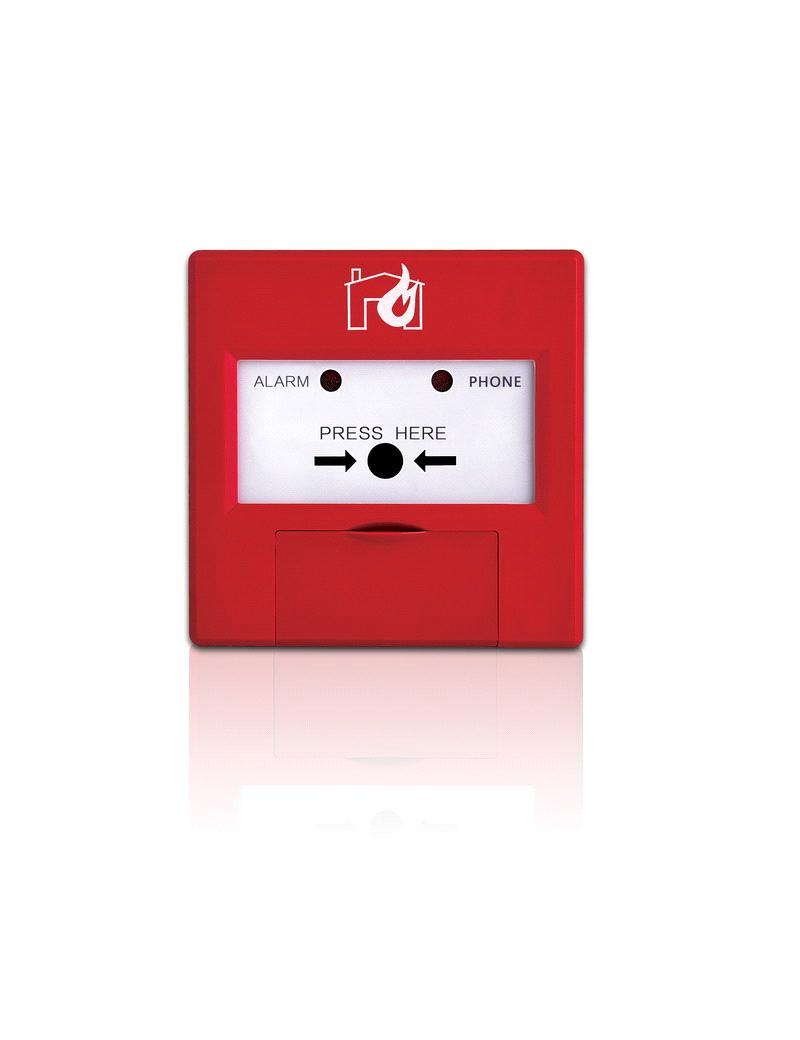

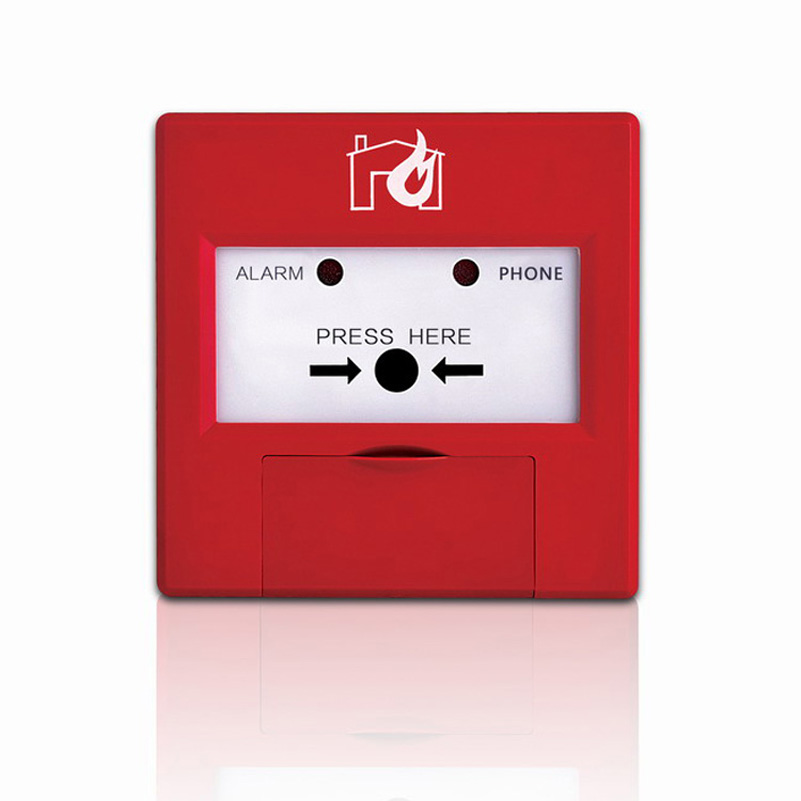

Intelligent Addressable Manual Call Point Fire Alarm Button Matched with Our Addressable Fire Alarm Control Panel
| Supply Ability: | 100,000 Piece(s) per Year |
|---|---|
| Shipping: | FOBshenzhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | netural packing |
Quick Details
- Brand Name: Zoanco
- color: red
- Executive standard: GB19880-2005
- Operating Voltage: 24V (pulse modulation)
- Product name: Addressable manual call point
- Model Number: 960E
- Operating voltage: 24V (pulse modulation)
- output contact: Normally open contact
- capacity: 0.1A/30VDC
- Wiring method: nonpolar two-bus system (L1, L2)
- Starting mode: ress the pressing sheet manually.
- Telephone jack: Two-wire fire telephone jack
Specifications
Skype firealarm87 /wechat 15220176087
I. Product overview
II. Product features
It can realize complete electronic coding and in situ rewriting with help of a coder.
Designed with an upper cover and a lower cover, it can be Installed, debugged and maintained conveniently.
It is designed with a two-wire fire telephone jack and is Therefore more applicable to engineering application.
Designed with passive output contacts, it can control other External equipment directly through an intermediate relay.
the pressing sheet on the manual call point will not get Crushed after it is pressed, but can be reset by a special Tool, so it can be used repeatedly.
III. Technical parameters
1. Executive standard: GB19880-2005
2. Operating voltage: 24V (pulse modulation)
3. Operating current: 300uA (in the monitoring status); 2mA (in the action status)
4. Output contact: Normally open contact; capacity:0.1A/30VDC
5. Weight: About120g
6. Wiring method: nonpolar two-bus system (L1, L2)
7. Operating environment: Indoor, temperature: 1050; relative humidity: 95% (402, without Condensation)
8. Coding method: It can realize online coding with the Help of a Coder and without the necessity of disassembling the bus (however, the Equipment must be powered off). Address codes 1 to 324 are available for selection.
9. Telephone jack: Two-wire fire telephone jack (equipped with A standard 6.3 single-track audio connector).
10. Starting part: A plastic pressing sheet that may be used Repeatedly. It can be manually reset with a special tool after being pressed.
11. Starting mode: Press the pressing sheet manually.
12. Indicator: the red ALARM indicator will blink in the Inspection status or remain lit in the alarm status; the PHONE indicator will Blink when a fire telephone loop is connected, otherwise it will be out.
13.
Matched host machine: fire alarm control panel (such as MN300)
