Home  >Products Catalog > LED Display > LED Curtain Wall Screen

LED Curtain Wall Screen SafeBuy Supplier Member

Update Time: 2017/9/13
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Working Temperature(℃): -35 - +50
  • Working Lifetime(Hour): 100,000
  • IP Rating: IP67
  • Certification: CCC,CE,FCC,LVD,ROHS

Specifications

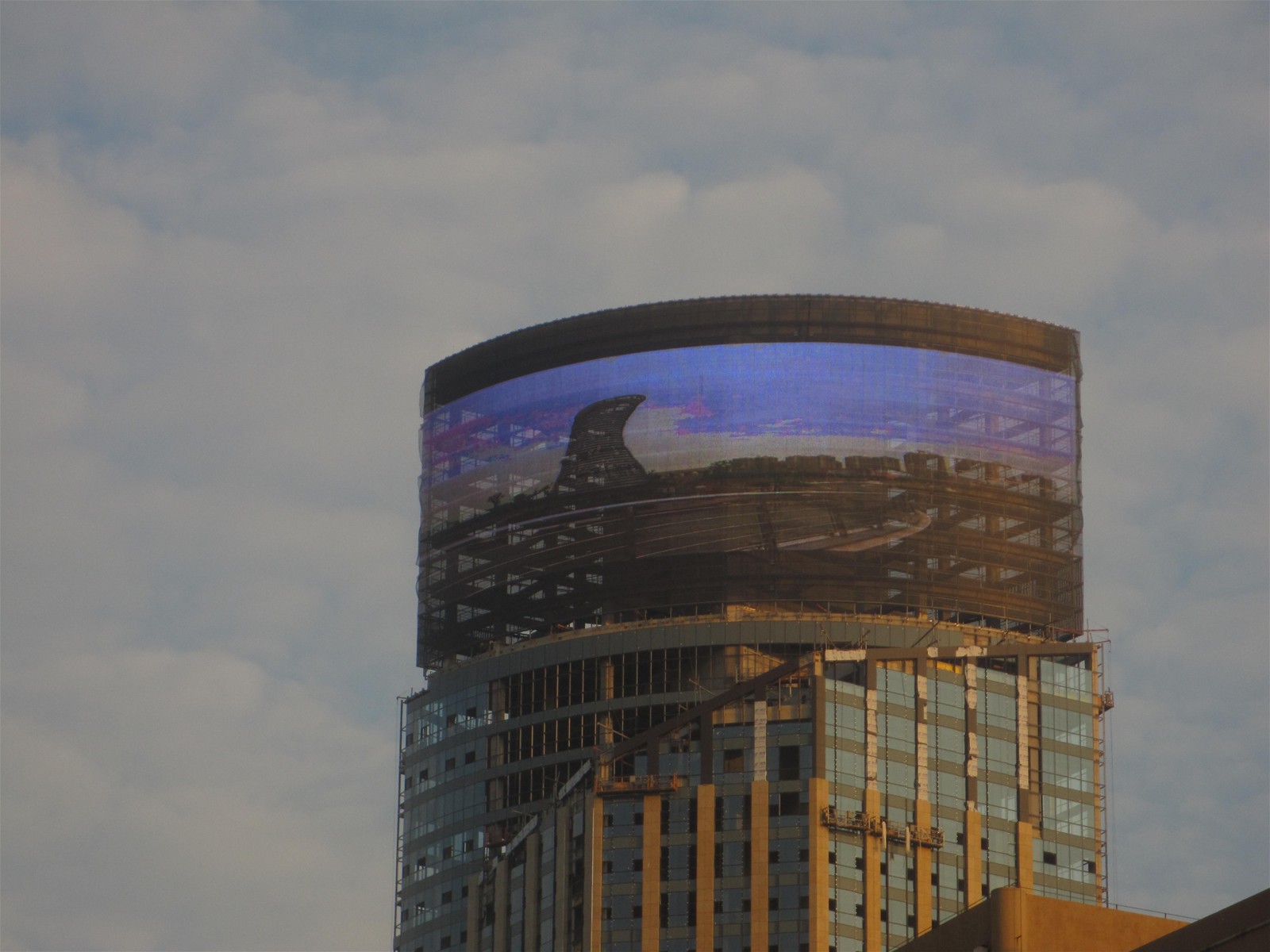

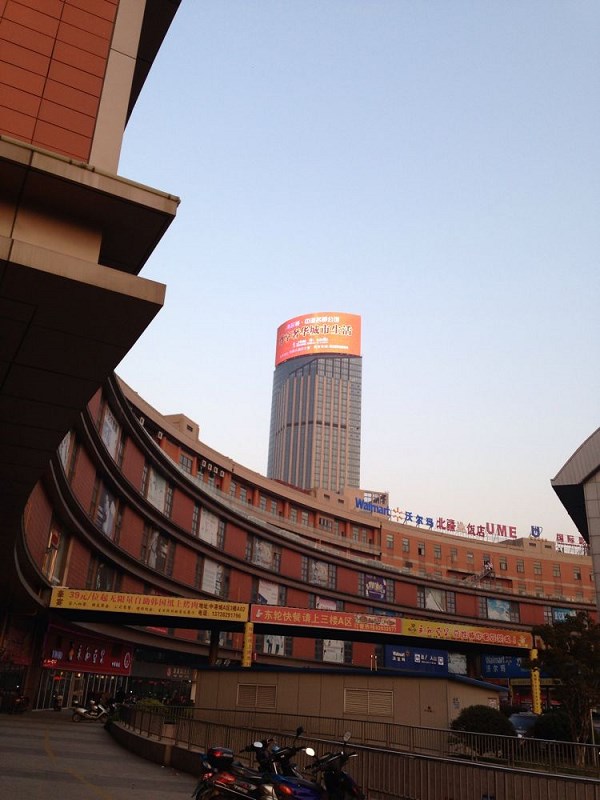

P25mm Media Facade Display is designed for large LED Display screen, over the time, more and more beautiful building has built in cities. They become new mark of city, also they are Medium to passing the information, advertising, etc.

The advantage of P25mm Media Facade Display is:

1. Light Weight. 15kg/ only. Per cabinet 16kg. Reduce the cost of steel structure. (the control box and Media strip could separate packing, less volume, reduce the cost of transportation. )

2. Low power, Maximum is 280W/, Average power is 90W/ . Reduce the electric charge. (Adoption High brightness LED & Small Current)

3. High refresh rate. The refresh rate achieve2300Hz, it won't take any black light even use wonderful quality camera to take pictures.

4. High brightness, the brightness is achieve 6, 500CD/. Even face to the direct sunlight.

5. High Transparent Rate. It achieves 50%. It does not influence light of indoor.


Item:

C Air-P25mm

Strip Size:

H1000MM*L12MM*W19MM

Cabinet Size:

H1000MM*W1187MM*H113MM

Strips/Cabinet

48pcs strips/Cabinet

Materials:

Aluminum Alloy+ PC Cover

Pixel Pitch

25mm

LED Source:

DIP346 1R1G1B/Pixel

Resolutions:

1600 Pixel/m2

Power Dissipation/:

Maximum Power 280W

Average Power 90W

Input Voltage:

AC185-265V

Working Voltage:

DC5V

Brightness

6500cd/

Best View Distance:

30M~150M

Installation Height:

20M~50M

Display Area:

> 100

Transparent Rate:

50%

Weight/:

15KG/

Strip Direction:

Vertical Direction

View Angle:

H90°/V60°

Protect Level:

IP67

Working Temperature

-40~+60

Working Humidity:

10-90%RH

Pixel Failure Rate:

1/10000

Gray Level:

3x16bit

Frame Frequence:

60HZ

Refresh Rate:

4000HZ

Drive Mode:

Static State

Communication Interface

USB/DVI/LAN

Color Display Ability:

6.87 Billion

No Failure Operation Rate:

10000 Hours

Installation Method:

Hanging installation, Surface Mounting

Maintain Method:

Front Maintenance /Back Maintenance

Heat Dissipation Method:

Natural Heat Dissipation

The Method of Cabinet and Cable

Aluminum Box Aviation Waterproof Plug
