Xinjishun Polyfoam Co., Ltd.

China Manufacturer with main products: EPS Semi-Auto Shape, EPS Corrugated Cutting Machine, Wall Panel EPS Cutting Machine, Automatic Frequency, Semi-Automatic EPS Block Molding...

Home >Products Catalog > China Eps Wall Panel EPS Block Cutting Machine (4 Poles)

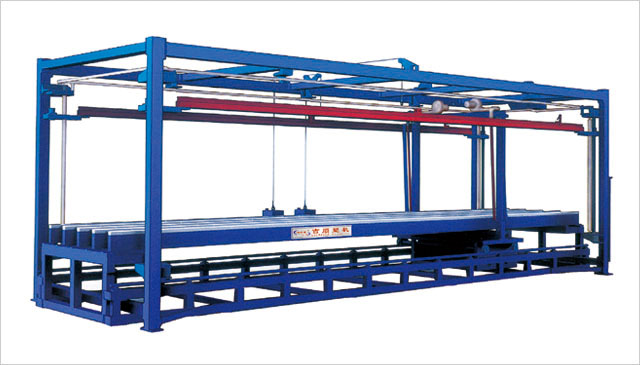

China Eps Wall Panel EPS Block Cutting Machine (4 Poles)

Supply Ability:	5 Set(s) per Month
Shipping:	by sea from any CHina port
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hebei in China
Packaging Details:	bulk package or as your request

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Certification: ISO9001
Brand Name: JS
Condition: New

Specifications

China eps Wall panel EPS block cutting machine 4 Poles Main Features:

1 :the main frame of the machine is welded from square tube and profile steel with compact structure, high strength,no deformation and nice appearance and can be freely and easily dismantled and assembled;

2 :the machine has horizontal, vertical and edge cutting devices which can realize 3 Directions cutting of horizontal, vertical and edge cutting;

3 :the wall block EPS cutting machine is integrated with frequency converter to realize a large range (0-4m/min) of stable and step-less speed adjusting, which could meet the requirement of low-speed cutting and high-speed retracting;

4 :Equipped with a whole-block cutting system to greatly improve the production efficiency and size precision, especially suitable for wall panel cutting;

5 : this Wall panel EPS Cutting Machine can cut all kinds of small-sized EPS Blocks in vertical direction.the error in the diagonal size of the cut product is less than 1.0mm.Which is suitable for wall outside insulation;

6 :Adopts 10KVA multi-tapped special transformer with wide adjustable range and multiple voltages;

Technical Data:

Item	Unit	JC-VIC-2000	JC-VIC-4000	JC-VIC-6000	JC-VIC-8000
Cutting Size	mm	210013001250	410013001250	610013001250	810013001250
CUtting Thickness(Min)	mm	5	5	5	5
Cutting Speed	mm/s	10-20	10-20	10-20	10-20
Installed Power	kw	8.22	8.22	8.22	8.22
Voltage	V/HZ	380/50	380/50	380/50	380/50
Overall DImensions	mm	403025702800	603025702800	803025702800	1010025702800
Total Weight	kg	2600	3000	3400	4000
