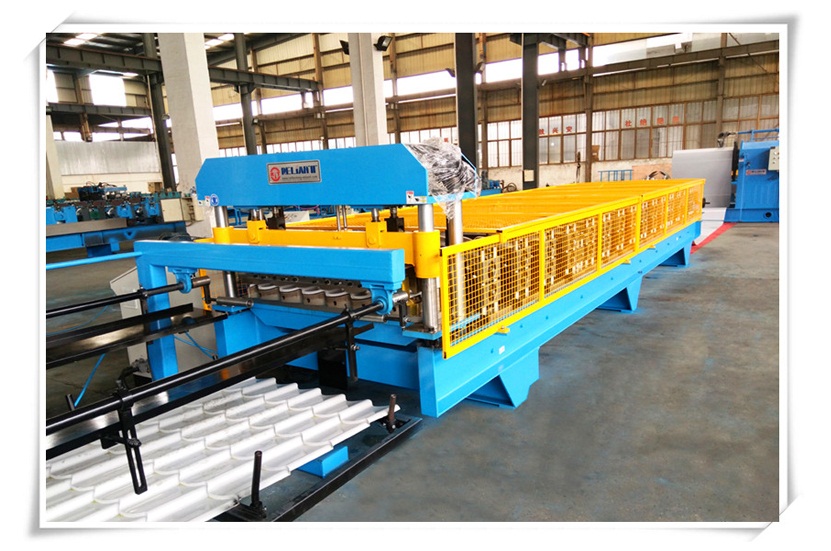

Metal Roof Tile Roll Forming Machine

Supply Ability:	200 Set(s) per Month
Shipping:	Shanghai port , Delivery time: 90 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1 main machine unpacked 2 electric box and rolls packed with plywood box

Quick Details

Type: Plain Roof Tiles
Material: Color Steel Plate
Brand Name: Reliantt
Color: customizable
size: customizable

Specifications

metal roof tile roll forming machine

Product description

Steel Roof Tile Roll Forming Machine and Roll Formerswhich exported to Bosnien and Herzegovina

MainFeatures:

1. the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. the machine has features of low noise and high efficiency.

Main Equipment

-- Single unrolling machine, one side can put material

-- Adopt automatic hydraulic system

-- the uncoiler have 3 segments

--Coil car can move up/down and forward/backward

2. Motorized Pre-cutting

-- It is used when changing the coil of raw material.

-- It can coil rapidly and time-saving.

3. Roll Forming Main Machine

-- the machine adopt new station (It is very strong with more long life)

-- Transmission: by chain 1.2 inch single line

-- the machine can be adjusted tile step module (TSM) on touch screen.

-- Complete machine adopt cover: it is insure operator's safe.

-- Machine have protective film device: it is for make the PVC protective film with the sheet then roll forming

4. Hydraulic cutting after forming

-- Cut the sheet after roll forming to required length

-- Cutting motion: the main machine automatically stops and the cutting will take place. after cutting, the main machine will automatically start.

-- Length measuring: Automatic length measuring

5. Control Panel

-- Automatic length measurement

-- Automatic quantity measurement

-- Computer used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.

-- Length inaccuracy can be amended easily.

-- Control panel: Button-type switch and touch screen

6. Hydraulic Station

7. Manual out table (auto stacker for option)

-- One out table with two support roller
