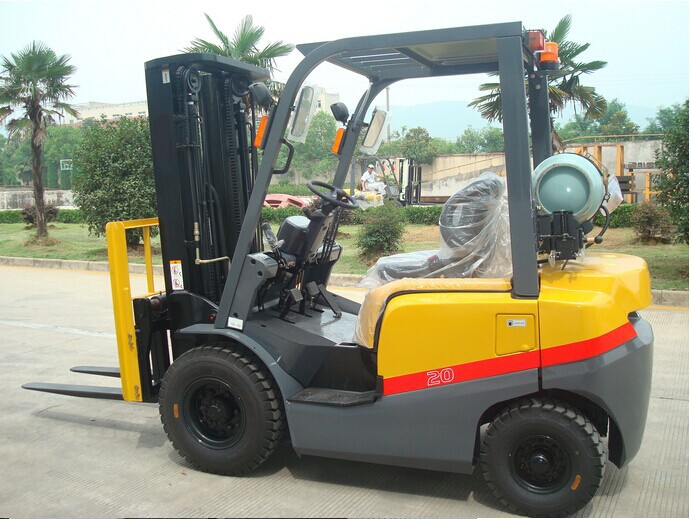

3 stage 4.5m mast LPG & Gasoline Powered Forklift Truck

FOB Price: 8000 - 13000 USD/Set
Min.Order Quantity: 1 Set
Supply Ability: 10 Set/Sets per Month
Payment Terms: T/T, Western Union
Update Time: 1/20/2017
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Overall Dimensions: 3470*1160*2095mm
  • Fork Width: 12cm
  • Fork Length: 1070mm
  • Min. Lifting Height: 15cm
  • Max. Lifting Height: 3000mm
  • Rated Loading Capacity: 3000kg
  • Power Souce: Gasoline Engine
  • Type: Powered Pallet Truck
  • Condition: New

Specifications


LPG & Gasoline Powered Forklift Truck:

Model

CPQD20FR

CPQD25FR

CPQD30FR

CPQD35FR

Load capacity (kg)

2000

2500

3000

3500

Load center (mm)

500

500

500

500

Power type

Petrol\liquid gas

Petrol\liquid gas

Petrol\liquid gas

Petrol\liquid gas

Max.lifting speeds(with load)(mm/s)

400

400

400

375

Max.Driving speeds(with without load)(km/h)

17/19

17/19

18/20

17/19

Max.Towing speeds(with/without load)(kN)

14/9

15/10

15.5/10.5

16/11

Gradeability(with/without load)(%)

15/20

15/20

15/20

15/20

H1 Lifting height (mm)

3000

3000

3000

3000

Free lift (mm)

60

60

80

80

Tilting angles(forward-backward)

6/12

6/12

6/12

6/12

Min. turning radius (mm)

2425

2425

2500

2500

Min. right angle aisle width (mm)

2050

2050

2110

2110

Min. under-clearance (mm)

110

110

135

135

Dimensions

Overall length (inincluding fork) (mm)

3580

3605

3800

3800

Overall width (mm)

1160

1160

1230

1230

Overall height(mast lowered) (mm)

2095

2095

2110

2110

Overall height(mast extend) (mm)

4080

4080

4270

4270

H3 Overall height to overhead guard (mm)

2095

2095

2110

2110

Fork overhang (mm)

451

451

465

465

Wheel base (mm)

1640

1640

1700

1700

Tread

Front tread (mm)

970

970

1000

1000

Rear tread (mm)

970

970

970

970

Tyre

Front tyre

7.00-12

7.00-12

28×9-15

28×9-15

Rear tyre

6.00-9

6.00-9

6.5-10

6.5-10

Total weight (kg)

3320

3600

4320

4580

Fork width (mm)

100

122

125

125

Fork thickness (mm)

40

40

45

50

Backrest height (mm)

1000

1000

1225

1225

Fork length (mm)

1070

1070

1220

1220

Engine

Engine model

MITSUBISHI4G64-31ZG/CHINESEGQ4Y

MITSUBISHI4G64-31ZG/CHINESEGQ4Y

MITSUBISHI4G64-31ZG/CHINESEGQ4Y

MITSUBISHI4G64-31ZG/CHINESEGQ4Y

Rate power (KW)

37/36

37/36

37/36

37/36

Rotate Speed At Rate Power (rpm)

2650/2400

2650/2400

2650/2400

2650/2400

Max.torque (Nm)

148

148

148

148

Rotate speed at max torque (rpm)

1800~1900

1800~1900

1800~1900

1800~1900

Type of power shift

Hydraulic

Hydraulic

Hydraulic

Hydraulic
