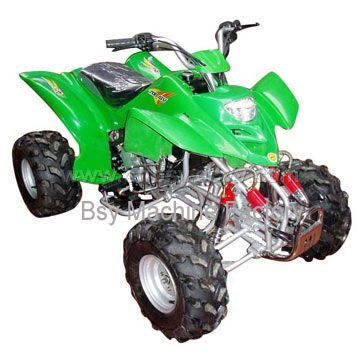

ATV 200cc

Features: 1) Engine: 4-stroke, single-cylinder, forced water-cooled 2) Displacement: 200cc 3) Max. speed: 60km/h 4) Bore x stroke: 69 x 53mm 5) Rated power and rotate speed: 10.2kW/8,500rpm 6) Max. torque and rotate speed: 13N.m/7,500rpm 7) Compressing ratio: 9.2:1 8) Starting system: electric 9) Brake system (front / rear): drum / disc 10) Fuel tank: 7.5L 11) Transmission system: axle 12) Steering angel: 30 degrees 13) Ignition: CDI 14) Tire (front / rear): 21 x 8 -10 / 22 x 11- 8 15) Dimensions: 1,680 x 1,030 x 1,100mm Inner packing: Iron frame Outer packing: 1pc/cardboard box N.W.: 165kg G.W.: 176kg

Model No:

BS-ATV200-1
