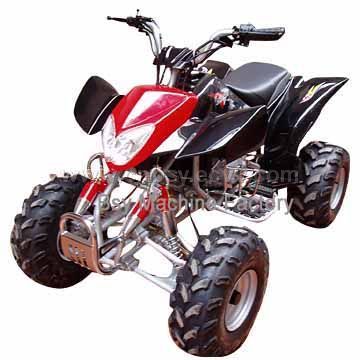

ATV 200cc

Detailed Product Description

1) Engine: 4-stroke, single-cylinder,forced water-cooled, hand clutch 2) Displacement: 200cc 3) Max. speed: 60km/h 4) Bore x stroke: 69 x 53mm 5) Maximum power (kW/rpm): 12.5 / 8,000 6) Maximum torque (N.m/rpm): 15.0 / 6,000 7) Compression ratio: 10.16:1 8) Starting system: electric 9) Brake system (front / rear): drum / disk 10) Fuel tank capacity (L): 4.5 11) Transmission system: chain driven 12) Steering angel: 30 degrees 13) Ignition: CDI 14) Tire (front / rear): 19 x 7-8 / 2.9psi / 18 x 9.5-8 / 2.9psi 15) Dimensions: (L x W x H): 1,630 x 1,040 x 760mm Packing: N.W.: 150kg G.W.: 160kg Inner packing: iron frame,Outer packing:cardboard box,1pc/box. Conveyance:25pcs/20FCL

Model No:

BS-ATV200-2
