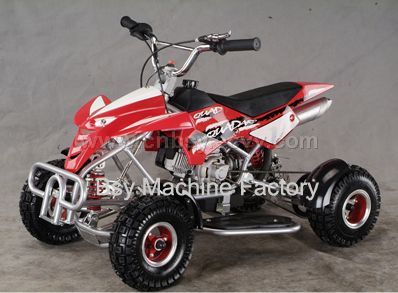

Mini Quad

Product name:Mini Quad Item No.:BS-ATV01A-1 1) Engine: 49cc, single cylinder, 2 stroke, air cooled 2) Oil type: petrol, 1:25 engine oil mixing 3) Tank capacity: 1 L 4) Driving mode: chain 5) Starting system: pull start 6) Tire (front & rear): 3.00-4 7) Brake system: rear disc brake (manual) 8) Suspension: front & rear suspension 9) Rated power and rotate speed: 1.8Kw/7500r/min 10) Max torque and rotate speed: 3.5N.m/6000rpm 11) Max speed: 50km/hr 12) Max load: 90kgs 13) Dimension(L*W*H): 1040*590*670mm 14) N.W./G.W.: 28kgs/31kgs 15) Carton size: 1050*640*580mm 16)78 pcs/20FCL; 160 pcs/40FCL;160 pcs/40HQ

Model No:

BS-ATV01A-1
