Marine Hydraulic Anchor Windlass with CCS, BV, GL,LR,NK,DNV Certificate

Specifications

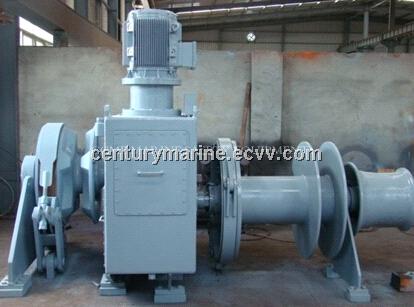

Marine Single Warping Head Anchor Windlass   is a machine that restrains and manipulates the anchor chain and/or rope on a boat, allowing the anchor to be raised and lowered. A notched wheel engages the links of the chain or the rope. A "trawl windlass" is a similar machine that restrains or manipulates the trawl on a commercial fishing vessel. The trawl is a sort of big fishing net that is wound on the windlass. The fishermen either let-out the trawl or heaves-up the trawl during fishing operations. A brake is provided for control and a windlass is usually powered by an electric or hydraulic motor operating via a gear train.

 Basic Information

Chain diameter: 12.5-114mm

Working load: 5.9-617.3kN

Supporting load: 30-4228kN

Working speed: ≥9m/min

Warping load: 5-350kN

Motor power: 1.2kW to 132kW

Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake
7) Control: local control
8) Paint: as per your specifications
