Guangzhou Aoling CNC Technology Co., Ltd.
China Manufacturer with main products: CNC Cutting Machine, Portable Cutting Machine, Plasma Cutting Machine, Flame Cutting Machine, Cutting Machine, Gantry CNC Cutting Machine |

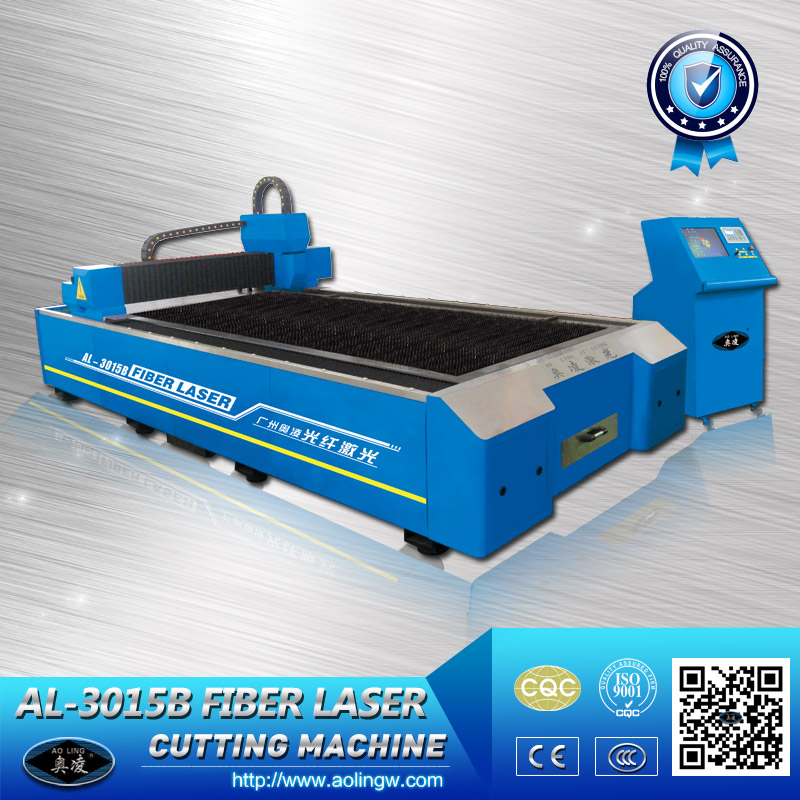

High Precision 500W Fiber Laser Metal CNC Cutting Machine
FOB Price: | 108,000.00 - 115,000.00 USD/Set |
---|---|
Supply Ability: | 50 Set/Sets per Month |
Shipping: | 30 working days after deposit |
Payment Terms: | T/T |
Related products from verified members
-
Price:20,000.00-60,000.00 USD/SetMin. Order:1 Set
-
Price:218000.00-248000.00 RMB/SetMin. Order:1 Set
Export Markets: | Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
---|---|
Place of Origin: | Guangdong in China |
Packaging Details: | wooden packages |
Quick Details
- Application: Laser Cutting
- After-sales Service Provided: Overseas third-party support available
- Model Number: ALCNC-J05
- Brand Name: Aoling
- Control Software: CypCut
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Cutting Speed: 40m/min
- Cutting Area: 1.25*2.5m
- Cutting Thickness: 1-5mm
- Applicable Material: Metal
- Laser Type: Fiber Laser
- Condition: New
Specifications
High Precision 500W Fiber Laser Metal CNC Cutting Machine
500W Fiber laser metal cutting machine IntroductionThe machine mechanical servo cutting head direct contacts with the sheet material, so that the laser focal length remains the same, and cutting speed and quality are the same in the whole working area. The machine uses dual-rail positioning, ball screws transmission, which bring fast speed, high accuracy, stable movement, good dynamic performance and long lifetime. In machine table lengthwise and crosswise movement directions, there are over-travel limit switches and polyurethane anti-collision strips in case of limit switch failure, which greatly ensure the machine operating safety. Automatic programming system directly generates graphic files to machining program, computer simulates processing path, and software automatically nests materials, which improve processing efficiency and material utilization.
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes
500W Fiber laser metal cutting machine Applicable IndustryIndustrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
- 1.High precision in cutting. Excellent in stability. Adopting the high precision ball screw in transmission system. The optimized CNC control system, which can meet the processing demand in high precision accessory. The motation system is excellent , that suit for the long hours constantly working.
- 2.High quality in cutting edge The cutting head system with high sensitivity and stability. The cutting head moving with the variation of the plate. The cut-off point position will remain unchanged. The kerf is flat and smooth enough no need to handle it again. Meanwhile, the machine can be use to cut both of the flat materials and curving materials .
- 3.Cutting large format and suitable for cutting more material. The machine can cut metal sheet within the thickness of 6mm and not larger than the size of 1250mm x 2500mm. The applicable materials include: ordinary carbon steel, stainless steel, titanium, etc.
- 4.With drawer to collect the garbage, easy to change the gas valve. High performance-price ratio
- 5.Low cost for using
- 6.Higher cutting speed and efficiency
- 7.Low fees for the future maintain: This laser machine is with simple structure, easy to operate with high stability.
Model |
AL-3015B |
Laser power |
500w |
laser model |
Fiber |
Working size |
3000X1500mm |
X-axis |
3000mm |
Y-axis |
1500mm |
Max cutting thickness |
0.5-6mm |
geometric positioning accurancy |
< ± 0.08mm/m |
orientation accurancy |
< ± 0.04mm |
power |
380v/50HZ |
weight |
3500KG |
Youtube video link : https://>
FAQ :
Guangzhou Aoling CNC Cutting Machine
Thank you for so much attention, your enquiry is appreciated!
Your information required:
1.The size of your plate
2.The thickness of your plate
3.The material of your plate
Our terms:
1.price terms: FOB Guangzhou Or CIF your port
2.Payment terms: 30% TT deposit,the balance 70% before shippment
3.Delivery time:10-20days after getting the deposit
