Home >Products Catalog > LED Panel light > 300x1200mm 40W ultra-thin led panel light with CE ROHS SASO certificatewhite 2700k-7000k

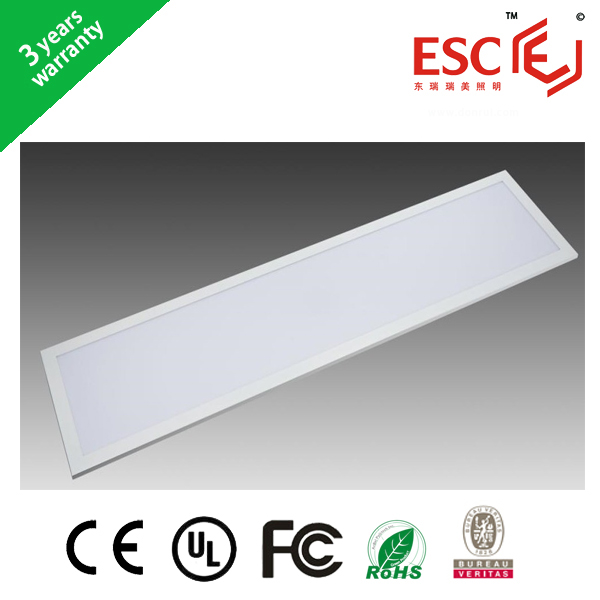

300x1200mm 40W ultra-thin led panel light with CE ROHS SASO certificatewhite 2700k-7000k

FOB Price:	33.62 - 75.81 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	by sea or express
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	by sea or express

Quick Details

Item Type: Panel Lights
Light Source: LED
Model Number: DR-SPL30120-40W
Brand Name: ESC Lighting
Certification: CE,RoHS
IP Rating: IP44
Lamp Body Material: Aluminum
Working Lifetime(Hour): 50000
Color Temperature(CCT): warm white/white
CRI (Ra>): 80
Lamp Luminous Flux(lm): 3400
Lamp Power(W): 40
Input Voltage(V): AC100-240V
Warranty(Years): 3
LED Light Source: SMD5630
Led Quantity: 88 PCS
Driver: CE passed driver/UL listed driver
Led chip brand: Epistar led chip
Beam Angle: 120 degree

Specifications

300x1200mm 40W ultra-thin led panel light with CE ROHS SASO certificatewhite 2700k-7000k

Profession LED Panel Light Manufacturer in China

Being a professional LED Panel lighting manufacturer for more than 5 years, we develop and produce the Key parts by ourselves; therefore we have the advantage in cost efficiency and quality control

Product feature

? Imported super bright SMD LED 3014, 2835 or 5730,industry's leading luminous efficiency,Top ranking in China,with CRI>80.

? Adopting imported Mitsubishi light guide plate to get a better performance;

? Super Longlife designed driver ,MTBF estimated at 60,000 hours, UL & Tuv Listed.

? Extra insulation design, withstand voltage of 3750V

? Super high light transmit Plate, distribute uniformed light.

? Leading heat management, low termperature increase,largely increase the lifetime

? 3 years warranty;

? Manufacturer directly and massive production volume, guarantee lowest price for same quality.

?Independent LED circuit design prevents complete blackout in case an LED fails

Product specification

Model	DR-SPL30120-40W
Input Voltage	AC100-240V
Dimension	295119512mm
Lighting Source	88pcs 5630
Power Consumption	40W
Color Temperature	WW(2800~3300K)	NW(4000~4500K)	CW(6000~6500K)
Luminosity	3400lm
CRI(Ra)	>80
Beam Angle	180°
Work Temperature	-25°C~+45°C
PF	0.95
Material	Aluminium+ PMMA
Lifespan (LED)	≥50,000hrs (70% Lumen Maintenance)
IP Rating	IP44

Normal size and wattage of led panel light for reference

30030012mm	12w,18w,24w,36w
30060012mm	18w,24w,27w,36w
300120012mm	36w,42w,48w,54w,72w
60060012mm	36w,42w,48w,54w,72w
600120012mm	54w,72w
Φ180*H15mm	10w
Φ240*H15mm	15-18w
Φ300*H15mm	20w
20020012mm	9w,12w

Advantage

1,High reliable constant current driving guarantees long life span of the lamp beads

2,Wide input voltage : AC100-265V,applicable for most countries

3,Energy saving and low power consumption, saving up to 40-50% compared to traditional fluorescent lamp and 80% to traditional incandescent lamp, on the condition of same illumination

4,Environment friendly, no flashing, no UV or infrared radiation, low heat radiation, mercury free, no polluting materials in the process of using

5,Long life span of over 50,000 hours by normal use, ten times to traditional incandescent lamp

6,Easy installation, direct replacement for traditional fluorescent lamp and incandescent lamp

Application

1.Commercial Lighting, Restaurants & Hotels, Shopping malls

2.Office Lighting, Retail & Grocery Stores, Showrooms, Airports

3.Warehouse Lighting, Galleries, Hospitals, Warehouses

4.Super market Lighting, institution buildings.

5 Conference, Meeting rooms Lighting

Our service

1.Your inquiry related to our products or prices will be replied in 24hrs,

2.Well-trained and experienced staffs to answer all your enquires in fluent English,

3.OEM&ODM services are available;

4.Distributorship are offered for your unique design and some our current models;

5. We offer 2-3 years warranty for all products;
