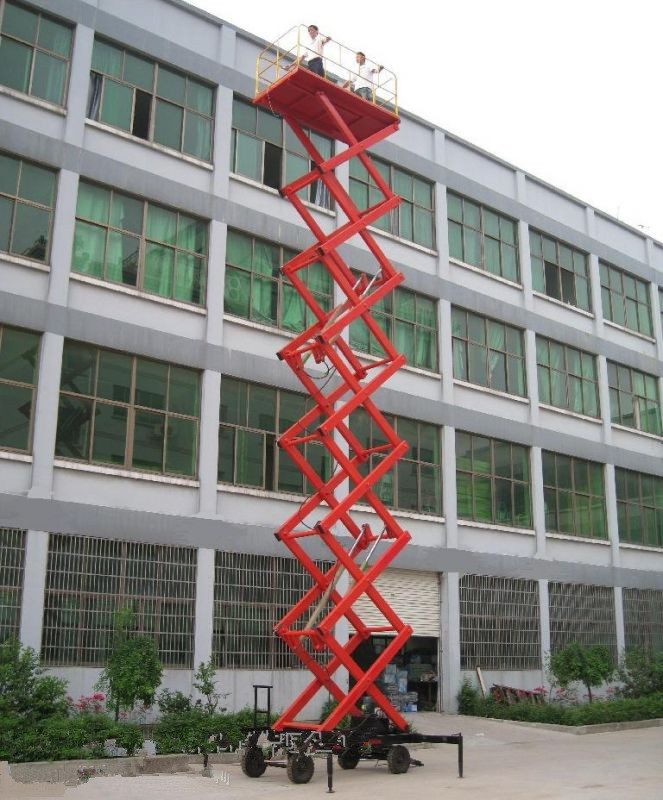

Portable mobile scissor lift platform used for cargo delivery

FOB Price:	900.00 - 3,580.00 USD/Set
Supply Ability:	10 Set/Sets per Week
Shipping:	Delivery within 5 working days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	In the wooden box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One year
Certification: CE SGS ISO9001 BV
Weight: 650kg
Overall Dimensions: Optional
Table Size: OEM
Max. Lifting Height: 20M
Min. Lifting Height: 4M
Rated Loading Capacity: 300kg-1000kg
Power: 2.2kw
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Scissor Lift
Model Number: ZTSJY
Brand Name: ZHONGYTIAN
Keywords: Portable mobile scissor lift platform used for cargo delivery
Grade: First class
OEM: Yes
Voltage: 110v 220v 240v 380v optional
Application: Widely used for cargo delivery
Materials: Stainless steel
Platform: Anti skid
Colour: Optional

Specifications

Portable mobile scissor lift platform used for cargo delivery

Introduction:

--- Mobile scissor lift is the professional high-altitude operation equipment and widely used for the installations and maintenance, at places like construction sites workshops, warehouse ,granary ,bus/railway stations,hotels,airports,gas station and aerial pipeline.

--- Lifting height from 4m to 16m, we can customize according to your requirement.

--- The power diesel engine, battery or AC is optional.

Safety Protection:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture

2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

3. Emergency decline valve: it can go down when you meet an emergency.

Power sources:

Local power available at the working sites(110V,220V,380V,415V)

Working heights: ranging from 4m,6m,8m,10m,12m,14m,16m

Application:

It is widely used for the equipments installations and maintenance at the following places like construction sites,workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.

Model	Lifting height	Loading Capacity	Overall dimension	Weight	Motor& Storage battery
ZTSJY0.5-4	4m	300kg	17009001100mm	400kg	1kw
ZTSJY0.5-6	6m	300kg	17009001290mm	650kg	1kw
ZTSJY0.3-8	8m	300kg	18509001390mm	850kg	1kw
ZTSJY0.5-8	8m	500kg	230015001450mm	1500kg	1kw
ZTSJY1.0-8	8m	1000kg	230015501530mm	1800kg	1kw
ZTSJY0.3-10	10m	300kg	260015001530mm	1500kg	3kw
ZTSJY0.3-11	11m	300kg	265015001530mm	1550kg	3kw
ZTSJY0.5-10	10m	500kg	270015502380mm	1600kg	3kw
ZTSJY1.0-10	10m	1000kg	282017202850mm	2380kg	3kw
ZTSJY0.3-12	12m	300kg	295019501740mm	2580kg	3kw
ZTSJY0.5-12	12m	500kg	315020002850mm	2600kg	3kw
ZTSJY1.0-12	12m	1000kg	320020153090mm	3580kg	3kw
ZTSJY0.3-14	14m	300kg	325019501970mm	3000kg	6kw
ZTSJY0.5-14	14m	500kg	330018501900mm	3500kg	6kw
ZTSJY0.3-16	16m	300kg	360019802030mm	3900kg	6kw
ZTSJY0.5-16	16m	500kg	365019802040mm	4100kg	6kw
ZTSJY0.3-18	18m	300kg	370019802050mm	4300kg	6kw
ZTSJY0.3-20	20m	300kg	380019802080mm	4600kg	6kw
