15t loading capacity mobile hydraulic yard ramp portable folding

FOB Price:	500.00 - 3,000.00 USD/Set
Supply Ability:	10 Set/Sets per Week
Shipping:	30 working days from Qingdao port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	According to the international standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One year
Certification: CE SGS ISO9001
Weight: 2900kg
Table Size: 10.5*2m
Max. Lifting Height: 1.7m
Min. Lifting Height: 0.9m
Rated Loading Capacity: 15t
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: ZTDCQY-15
Brand Name: ZHONGTIAN
Keywords: 15t loading capacity mobile hydraulic yard ramp portable folding
Grade: First class
OEM: Yes
Application: Used for transfer cargo with truck
Platform: Anti skid
Main materials: Stainless steel
Colour: Optional

Specifications

15t loading capacity mobile hydraulic yard ramp portable folding

Product description:

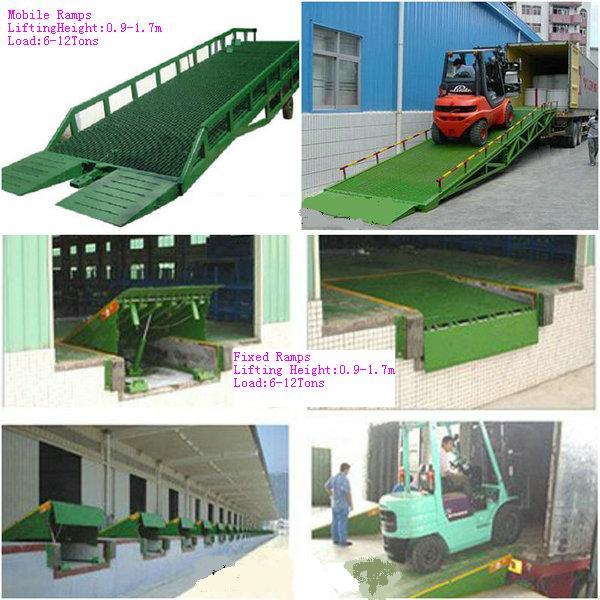

Mobile hydraulic dock leveler is cargo handling and forklift with auxiliary equipment to use, adjustable height according to the level of automobile car, truck directly through the device into the interior of the bulk cargo handling, only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, to obtain greater economic benefits.

Parts of the products:

1. oil pump for aviation special use make it more durable and safety.
2. Checkered steel make it work under the snowy and rainy weather.
3. High strength steel structure and stuffed tires are available.
4. High strength lifting chain make it more durable.
5. Adjustable standing legs prevent the truck from leaning

Application:

Our products are widely used in terminals, stations, warehouses and other places. According to the different needs of users, as the special design in terms of dimensions, load bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush. Ramps may be on the deck, under the tilted outer end goods may be higher or lower than the flat-screen, and make the car high.

Technical parameters:

Model	Lifting distance	Loading Capacity	Table Size	Weight
ZTDCQY6	0.9-1.7m	6000kg	10500*2000mm	2300kg
ZTDCQY8	0.9-1.7m	8000kg	10500*2000mm	2500kg
ZTDCQY10	0.9-1.7m	10000kg	10500*2000mm	2600kg
ZTDCQY12	0.9-1.7m	12000kg	10500*2000mm	2700kg
ZTDCQY15	0.9-1.7m	15000kg	10500*2000mm	2900kg
ZTDCQY20	0.9-1.7m	20000kg	10500*2000mm	3300kg
