Hydraulic stationary dock leveller yard ramp for container with truck

FOB Price:	400.00 - 2,000.00 USD/Set
Supply Ability:	800 Set/Sets per Month
Shipping:	Delivery within 5 working days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	According to the international standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One yaer
Certification: CE ISO9001 BV
Weight: 500kg
Overall Dimensions: 2000*2000*600mm
Table Size: 2000*2000mm
Max. Lifting Height: 450mm
Min. Lifting Height: -300mm
Rated Loading Capacity: 3t-20t
Power: 0.75kw
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: ZTDCQG
Brand Name: ZHONGTIAN
Keywords: Hydraulic stationary dock leveller yard ramp for container with truck
Grade: First class
OEM: Yes
Voltage: 110v 220v 240v 380v optional
Application: Used for loading cargo goods
Main materials: Stainless steel
Platform: Anti skid
Colour and size: Optional

Specifications

Hydraulic stationary dock leveller yard ramp for container with truck

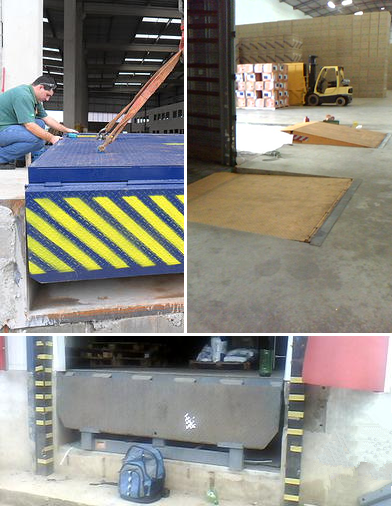

Hydraulic dock leveler is the special auxiliary equipment used for loading and unloading of goods.Its height can be adjusted with the different heights of lorries.Some transport vehicles like forks can directly move into the wagon box with goods in using it, and only need one person operating. The equipment can help enterprise reduce so much labor force,improve work efficiency and speed up the rate of goods flow, so as to achieve greater economic results.

Application:

Suitable for loading and unloading car frequently, different car models of large enterprise, warehouse, station, wharf, warehousing logistics base, postal transportation, logistics distribution etc.

Technical parameters :

Model	max.&min lifting Height	Loading Capacity	power	Table Size	Overall Dimensions	Weight
ZTDCQG6-0.8	300-500mm	6000kg	0.75kw	2500*2000mm	25002000700mm	700kg
ZTDCQG8-0.8	300-500mm	8000kg	0.75kw	2500*2000mm	25002000700mm	850kg
ZTDCQG10-0.8	300-500mm	10000kg	0.75kw	2500*2000mm	25002000700mm	1000kg
ZTDCQG12-0.8	300-500mm	12000kg	0.75kw	2500*2000mm	25002000700mm	1150kg

Packaging & Shipping

Our products, can be installed 6 sets in a 20 foot container , can be installed 15 sets in a 40 foot container. So it's more concessions for you to buy more than two sets one time. The more you need,the bigger discount we will give you.
