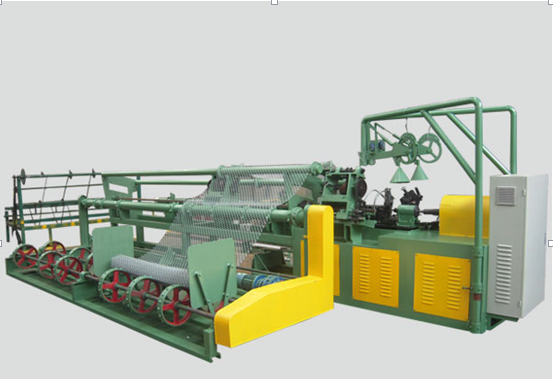

Full Automatic Chain Link Fence Weaving Machine

Specifications

Full Automatic Chain Link Fence Weaving Machine is a kind of auto weaving equipment designed and manufactured by ourselves based on absorbing the advanced electromechanical controlled resistance weaving technology from home and abroad, of which multinomial technologies have won the national patents.

Technical Description

Chain link Weaving machine for manufacturing chain link fencing of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

The chain link is automatically wound to form rolls when the desired length is manufactured.

The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

One side or both sides of the end of net hole is twisted or with burr in edge.

Use compacting machine to make it into rolls.

Product Introduction

1.        Width scope of weaving: 2m; suitable for all kinds of Electro-galvanized, Hot dip galvanized diamond shape mesh

2.        Mesh scope of weaving: 30-100mm (According to the requirements of the customers, can provide 2 different types of knife molds

3.        Wire scope of weaving: 2-4mm

4.        The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M2 min.

5.        The machine is controlled by PLC automatic controller

6.        Power consumption: 9kw

7.        Weight of equipment 4200kg

8.        Outside size: main machine: 6700*1430*1800mm   5100*1700*1250

9.        Electric System:

?  Germany Siemens PLC origin

?  The inverter is selected from high quality products ofJapan"YASKAWA Electrical

?  Low-voltage electrical from Germany Schneider

?   fromTaiwanTeco Electric

?  Clutch from Taiwan YA CO, .LTD.

10.    Suitable wire to the machine: High-quality low-carbon steel wire, Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad Steel Wire

11.    Chain Link Fencing is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc.
