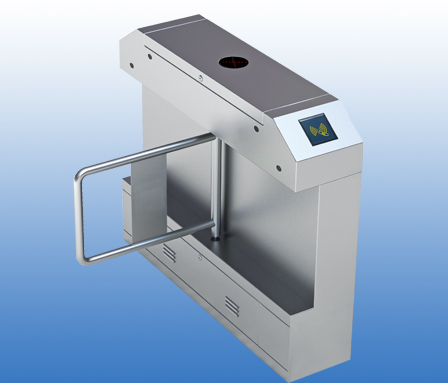

Stainless Steel Electronic Bevel Swing Barrier Gate KT212
| Supply Ability: | 200 Pair per Month |
|---|---|
| Shipping: | 5-12working days, Shenzhen or Hongkong port |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Pay pal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Packed in wooden cases, inner packed in carton, package size: 129*38*114cm |
Quick Details
- Model Number: KT212
- Brand Name: Koten
- Material: SUS304
- Arm length: 500-600mm
Specifications
Stainless Steel Electronic Swing Barrier Pedestrian Control Gate
KT212
Summary:
The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligentized control and management.
Specification:
|
Framework Material |
304# stainless steel(default), Cold rolling iron painted, SUS316 |
|
Thickness of Material |
1.5mm(default), 2.0mm is optional |
|
Surface Finish |
wiredrawing finished(default), polishing finish can be made as required |
|
Net Weight |
single mechanism unit is approx 65kg, double mechanism unit is approx 85Kg/unit |
|
Lane width |
600-1200mm |
|
Entry/exit direction |
One-way or two-way adjustable |
|
Working Voltage |
AC85-230V 50/60Hz,customised |
|
Motor |
DC 24V brush motors |
|
IR sensors |
3(standard)-10pairs can be mounted as required |
|
Input interface |
Dry contact signal or 12V level signal, or 12V pulse signal with pulse width>100ms, driving current>=10mA |
|
Communication interface |
RS485, distance ≤1200M |
|
Speed |
40 people per minute (normal open), 25-30 people per minute (normal close) |
|
Closing/opening time |
1-2s |
|
Time for entering into passing status after power on |
3s |
|
Time for automatic reset after breakdown |
10s |
|
Temperature |
-10---50cels |
|
Relative humility |
≤90%, no-condensation |
|
Normal life-span(MCBF) |
3million times |
|
IP level |
65 |
Features:
1. Failure self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Mechanical anti-pinch structure enables motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
4. Anti-rushing function: The gate lock automatically without open signal
5. Gate synchronization is adjustable.
6. Automatic resetting function: During opening, the system will cancel access this time if nobody pass within given time.
7. It is easy to change normal open or normal close mode for different requirement.
8. It is easy to be integrated with magnetic card, barcode card, ID card, IC card, etc
9. One-way or two-way traffic flow available
10. It is able to remote control by computer.
11. Automatic delay reset process 5s after open.
12. Open automatically when power off and close automatically when power on.
13. Sound & light alarm, including illegal break-in alarm, close automatically for reverse entry, etc
14. Anti-pinch function is available.
15. Infrared reset function (Optional).
Peripherals options:
1. Electronic counter
2. Access control system
3. E-ticketing system
4. Time attendance system
5. Exit button
6. Remote controller
Application:
Office building
Science & education institutes
Commercial service place
Places of leisure
Transport station
Motorised Swing Barrier Pedestrian Control Gate KT212
