Anyang Forging Press Machinery Industry Co., Ltd.
China Manufacturer with main products: CNC Forging Hammer, Hydraulic Forging Hammer, Pneumatic Forging Hammer, Forging Manipuiator, Skew Rolling Machine, Hydraulic Die Forging... |

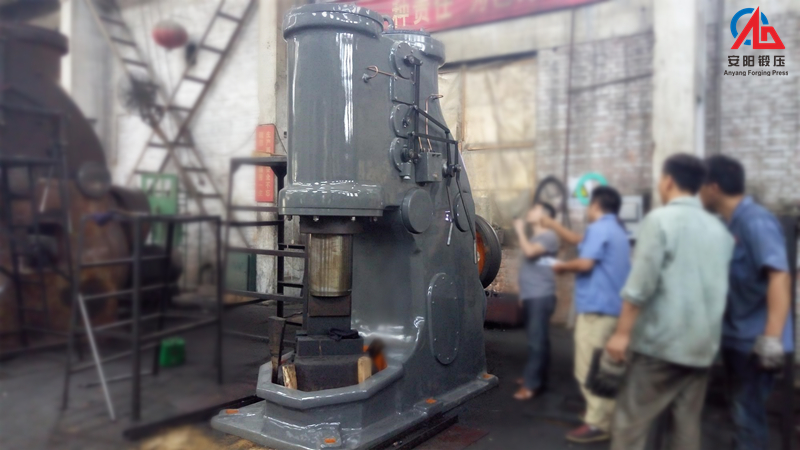

Pneumatic Power Forging Hammer
| Supply Ability: | 1 Set(s) per Month |
|---|---|
| Shipping: | Tianjin port, Shanghai port, Hongkong port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO9001
- Brand Name: Anyang Forging Hammer
- Condition: New
- Weight: 17000
- Power(W): 19 KJ
- Voltage: 220-480 V
- Model Number: C41-750
- Weight of falling parts: 750
- Maximum hit energy: 19
- Hit number: 105
- Height of working area: 670
- Dimension of top die surface: 330*160
- Forges square: 270*270
- Forges round: 300
- Motor type: Y280M-6-B3
- Hammer weight: 17000
- Outside size: 3905*1370*3175
Specifications
Pneumatic Forging Hammer:
Anyang Forging is the only company in China with more than 50 years of continuous production history of air hammer manufacturer; China's only national products of the highest quality Air Hammer Award (Silver) enterprises. Forging the company commissioned by the State is the only industry-standard manufacturers to develop air hammer, and is still the implementation of this standard.
Our pneumatic forging hammer from 9kg to 75kg are widely used by blacksmith for the art forging,from 150kg to 2000kg are widely used in the industrial forging.
Pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Features of Pneumatic forging hammer:
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. the Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
the main Technical Parameter Blacksmith Pneumatic Forging Hammer Model
C41-150
C41-250
C41-400
C41-560
C41-750
C41-1000
C41-2000 Weight of
150
250
400
560
750
1000
2000 Falling Parts(kg) Maximum hit Energy(kj)
2.5
5.6
9.5
13.7
19
27
54 Hit Number(min-1)
180
140
120
115
105
95
80 Heigh of
370
450
530
600
670
800
1000 Working Area(mm) Tup axis to
350
420
520
550
750
770
950 Frame Front(mm) Dimension of top
200x85
220x100
250x120
300x140
330x160
365x180
400x300 Die Surface(L x W) (mm) Dimension of Bottom
200x85
220x100
250x120
300x140
330x160
365x180
400x300 Die Surface(L x W) (mm) Forges
Square(mmxmm)
130x130
145x145
220x220
270x270
270x270
290x290
350x350 Round(mm)
145
175
240
280
300
320
400 Motor
Type
Y180M-4-B3
Y180L-4-B3
Y200L-4-B3
Y280S-6-B3
Y280M-6-B3
Y315S-6-B3
Y315L2-6-B3 Power(kw)
18.5
22
30
45
55
75
132 Weight
Hammer(kg)
3260
5000
8000
9800
17000
20000
48000 Anvil Block(kg)
1500
2500
4800
6720
9000
13000
24000 Outside Size
2390x1085
2639x1155
2785x1400
3464x1500
3905x1370
4125x1500
4200x2300 X2150
X2540
X2884
X3157
X3175
X3770
X4390
