>Products Catalog > Parking Management System Equipment > RFID Induction Type Battery Powered Parking Barrier/Parking Lock/Parking Space Protector
RFID Induction Type Battery Powered Parking Barrier/Parking Lock/Parking Space Protector
| FOB Price: | 50.00 - 70.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Unit(s) per Month |
| Shipping: | Ex work, FOB shenzhen, CIF are accepted, lead time: 3-12days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, pay pal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Each packed in carton, carton size: 51*50*15cm, GW: 10.5kg |
Quick Details
- Warranty: 18Months
- Brand Name: Koten
- Width (mm): 460
- Height (mm): 75
- Type: Carport
- Model Number: BW-8RF
- Material: Cold-rolling iron
- Color: Yellow with black stripe
- Locking height: 430mm
- Type: Remote Control
- Power supply: battery
Specifications
RF Induction Battery Power Supply Remote Control Automatic Car Parking Lock/parking space occupier/parking space protector
Specifications:
D: 460×460×75mm
Locking high: 420mm
N. W: 8KG
GW: 10.5KG
RFID Frequency: 2.5GHz
Induction Distance: > =25m
2mm thick steel rolling
Spraying plastic coating
Collision, waterproof
Working power: DC6V 10AH
Remote distance≤30m
up and down: ＜5s
Features:
1, Pressure resistance
the parking lock can endure a rolling force of 300kg under the falling status without being damaged.
2, Self locking
When the parking lock is at lifted or lowered status, no one else can make permanent changing
the status except the user.
3, Sealing
the IP protection level is 65, which can fully prevent dust from entering and avoid damages
by water washing.
4, Manual control
for induction control parking lock series parking locks, if the battery is short of power or out of service,
Swing the worm with the prepared manual crank to lift/lower the rocking arm, so that
5, Electrical Control on caused
6, Power Cut-off on Resistance
the power shall be automatically switched off on external forces unaffordable in the of the parking lock to protect the electrical motor from being damaged.
7, Power Shortage Indication
When the power is too short to start the parking lock, the indication lamp on the parking
Lock will flicker for three times to remind the user of recharging the battery in time.
8, Alarming and Resetting on External Force
for CWZRF series parking locks, if the rocking arm is forced to be lowered when
the parking lock will alarm to remind the external force applier to remove external force or
Remind the managerial staff to make treatment. When the external force is removed, the
Rockingarm will be reset automatically.
for CWZRF series parking locks, if the rocking arm is forced to be lowered
with the action of the external force, the front/back angle of the rocking arm will be changed,
the parking lock will alarm to remind the external force applier to remove external force or
Remind the managerial staff to make treatment. the rocking arm will reset automatically
after 5~7 seconds.

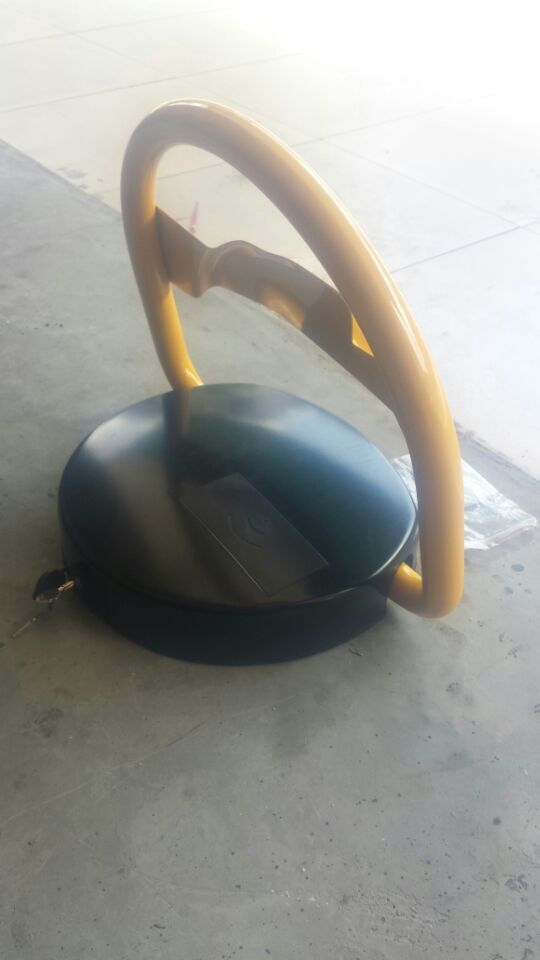

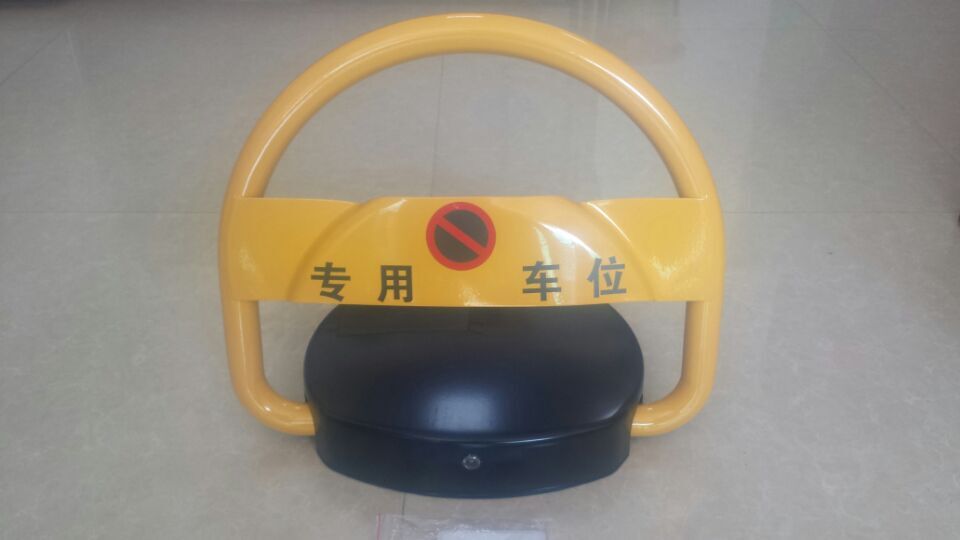

Picture:
