Luoyang Brs Bearing Co., Ltd.
China Manufacturer with main products: Slewing Ring Bearings, Crossed Cylinder Roller Bearing, Harmonic Reducer Bearings, RV Reducer Bearings, Angular Contact Ball Bearings, Split... |
Home
>Products Catalog > Crossed roller bearings > SHF-25-2UH Harmonic Reducer Bearing 66*110*20.7mm Crossed Roller Ring for SHF-25 Gear Units
SHF-25-2UH Harmonic Reducer Bearing 66*110*20.7mm Crossed Roller Ring for SHF-25 Gear Units
| Supply Ability: | 1,000 Set(s) per Month |
|---|---|
| Shipping: | 35 days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | export standard |
Quick Details
- Type: Other Type
- Seals Type: sealed both sides
- Outside Diameter: 50-300 mm
- Bore Size: 30-200 mm
- Brand Name: RIGBRS
- Type: crossed roller bearing
- Precision Rating: P5
- Model Number: SHF-25
- Material: GCr15
- Structure: integrated inner and outer ring
Specifications

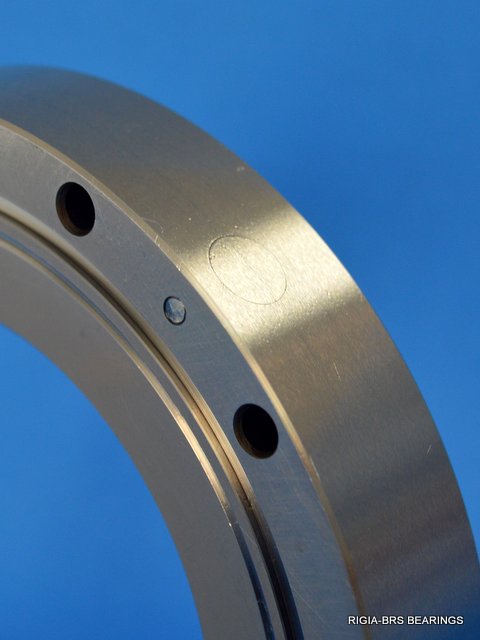

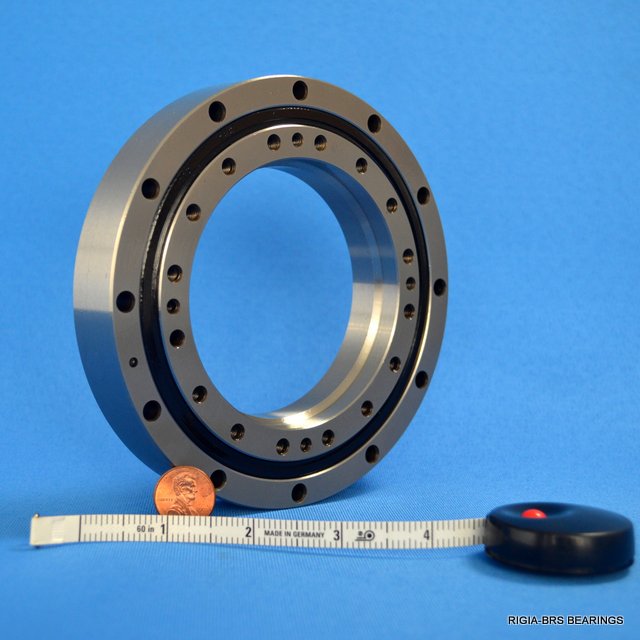

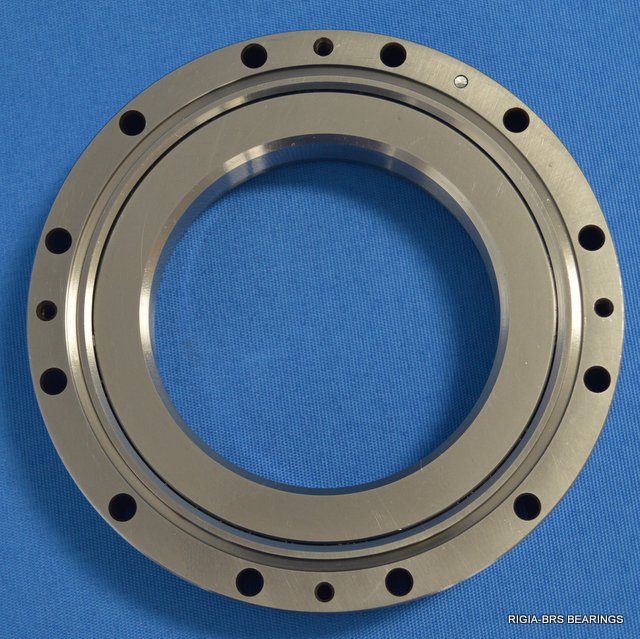

SHF-25-2UH Harmonic reducer bearing
Model: SHF-25/SHFOP25-XRB
Size: 66*110*20.7mm
Weight: 0.75kg
Structure: crossed roller slewing ring, integrated inner and outer ring.
SHF-25-2UH Harmonic reducer output bearingBelongs to SHF reducer gear units bearing, it has the feature of high rigidity, high running accuracy, high precision and high transmission ratio, meanwhile, it's ultra-thin and light weight, specially suited for applications like harmonic reducer output terminal, industiral robots, packaging machines, printing machines, medical equipments, etc.

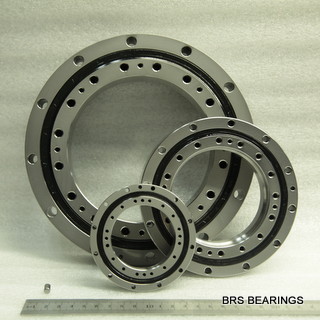

OtherSHF Harmonic Drive Gear Head bearingModels:
SHF14-38/35.6*70*15.1mm
SHF17-44*80*17mm
SHF20-54*90*18.5mm
SHF25-66*110*20.7mm
SHF32-84*142*24.4mm
SHF40-106*170*30mm
SHF50-135*214*38mm

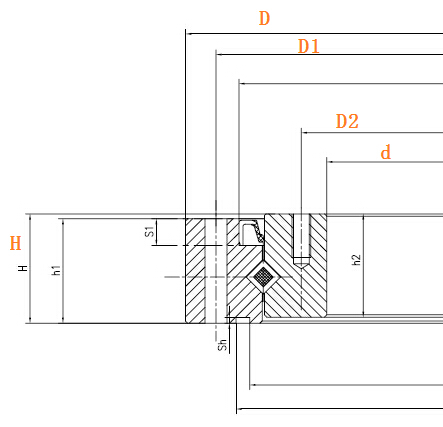

| Part Number | Major Dimensions (mm) | ||
| D | d# | H | |
| SHFOP14-XRB | 70 | 38*5-35.6*9.6 | 15.1 |
| SHFOP17-XRB | 80 | 47*6.5-44.1*9.9 | 17 |
| SHFOP20-XRB | 90 | 54 | 18.5 |
| SHFOP25-XRB | 110 | 68*7.5-66*12.2 | 20.7 |
| SHFOP32-XRB | 142 | 88*8-84*14.5 | 24.4 |
| SHFOP40-XRB | 170 | 108*9-106*19 | 30 |
| SHFOP50-XRB | 214 | 135 | 36 |
Suited for harmonic reducer:
SHF-14-30-2UH
SHF-14-50-2UH
SHF-14-80-2UH
SHF-14-100-2UH
SHF-17-30-2UH
SHF-17-50-2UH
SHF-17-80-2UH
SHF-17-100-2UH
SHF-17-120-2UH
SHF-20-30-2UH
SHF-20-50-2UH
SHF-20-80-2UH
SHF-20-100-2UH
SHF-20-120-2UH
SHF-20-160-2UH
SHF-25-30-2UH
SHF-25-50-2UH
SHF-25-80-2UH
SHF-25-100-2UH
SHF-25-120-2UH
SHF-25-160-2UH
SHF-32-30-2UH
SHF-32-50-2UH
SHF-32-80-2UH
SHF-32-100-2UH
SHF-32-120-2UH
SHF-32-160-2UH
SHF-40-50-2UH
SHF-40-80-2UH
SHF-40-100-2UH
SHF-40-120-2UH
SHF-40-160-2UH
SHF-45-50-2UH
SHF-45-80-2UH
SHF-45-100-2UH
SHF-45-120-2UH
SHF-45-160-2UH
SHF-50-50-2UH
SHF-50-80-2UH
SHF-50-100-2UH
SHF-50-120-2UH
SHF-50-160-2UH
SHF-58-50-2UH
SHF-58-80-2UH
SHF-58-100-2UH
SHF-58-120-2UH
SHF-58-160-2UH
BRS Bearing can also produce customized size and structure, to learn more info. Regarding SHF-25-2UH Harmonic Reducer Bearing 66*110*20.7mm Crossed Roller Ring for SHF-25 Gear Units, please feel free to contact us.
