Jinan Maohong Industry & Trade Co., Ltd.
China Manufacturer with main products: CNC Router, Laser Engraving Machine, Woodworking Machinery, Stone Carving Machine, Plasma Cutting Machine, CNC Engraver, Co2 Laser Engraver |
16th

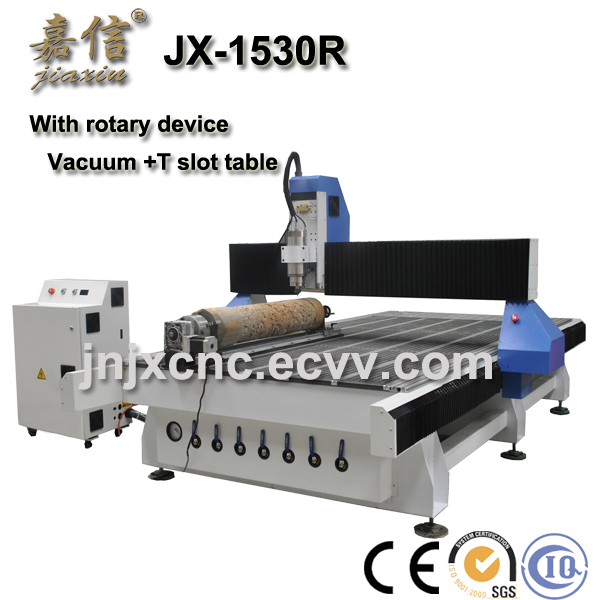

JX-1530R JIAXIN 4 axis cnc router wood carving machine
| FOB Price: | 5,000.00 - 12,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | Within 20 days after received your deposit FOB Qingdao |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Plywood box with steel frame |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: CE,CIQ,QC,SGS
- Weight: 2300KGS
- Dimension(L*W*H): 1500*3000mm
- Power(W): 5.5KW
- Voltage: AC380V/50Hz others optional
- Model Number: JX-1530R
- Brand Name: JIAXIN
- CNC or Not: CNC
- Condition: New
Specifications
JX-1530R JIAXIN 4 axis cnc router wood carving machine
|
Model
|
JX-1530R
|
|
X, Y axis working area
|
1500x3000mm
|
|
Z axis working area
|
350mm
|
|
Z-axis clearance
|
200mm
|
|
Repeatability
|
+/-0.025mm
|
|
Max cutting speed
|
30m/min
|
|
Max. Traverse Speed
|
56m/min
|
|
Rapid Traverse
|
45m/min
|
|
Spindle power
|
5.5KW
|
|
Spindle rotating speed
|
24000rpm
|
|
Command
|
G code*. U00*mmg*. Plt
|
|
Work mode
|
Step motor
|
|
Voltage
|
AC380V/50HZ
|
Suitable Industry
Suitable in the woodwork industry, plastics industry, insulating materials industry and non-ferrous metals industry and so on.
Performance Characteristics
1.It adopts the high power spindle made in China. Linear square guide.
2.X. Y axis with high precision rack opinion transmission, high speed.
Z axis drive: A high-precision ball screw drive with low coefficient of sliding friction force is small, fast run smooth.
3.Table Surface: Vacuum table with 6 vacuum zones.With rotary device ,convinent for wood furniture leg ,and other
3D engraving .
3D engraving .
4.Software: compatible of all CAD/CAM , Type 3 /Artcamsoftware.
Guarantee & aftersale service
Guarantee for one year, 24-hour technical support by email or calling.
User-friendly English manual and Video CD for machine using and maintaining.
Machine details JX-1530
|
HARDWARE
|
SOFTWARE
|
||||
|
No.
|
Parts
|
Quantity
|
No.
|
Parts
|
Quantity
|
|
1
|
Cnc router
(Linear guide way )
|
1 set
|
10
|
DSP control system
|
1 set
|
|
2
|
Water pump
|
1 set
|
11
|
Type 3 original
|
1pc
|
|
3
|
cable
|
1 pc
|
12
|
instruction manual
|
1pc
|
|
4
|
wrench
|
2 pcs
|
13
|
Guarantee card
|
1pc
|
|
5
|
Clamp
|
6 pcs
|
14
|
User Manual
|
1pc
|
|
7
|
Power line
|
1 pc
|
|||
|
8
|
Dust collector
|
1 set
|
|||
|
9
|
Vacuum pump
|
1set
|
|||
Installation
1. Prepare the installation factors according to instructions, then the engineer will install and test the machine.
2. Construct according to requests in order to have installation conditions.
3. Unload the machine and strip the box.
4. Provide hoisting apparatus and multipurpose tools freely.
5. Send for technicians to install the machine with engineer from Jiaxin.
6. Finish installation and debugging within 3 days.
Package
