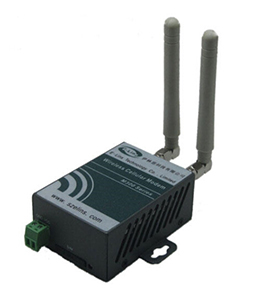

2015 hot sale M300 3G WCDMA wireless industrial cellular modem with USB port

FOB Price:	135.00 - 200.00 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Month
Shipping:	3-5 days
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1283cm

Quick Details

Model Number: M300w modem
Brand Name: E-lins
Certification: CE RoHs
Transmission Rate: 21.6-384Kbps
Interface Type: USB
Type: Wireless
Products Status: Stock

Specifications

>> Wireless

Compatible Mobile Networks UMTS WCDMA (HSUPA/HSDPA/HSPA)
GSM EDGE/GPRS

Cellular Frequency
UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/AWS;

Quad-band EGSM 850/900/1800/1900;

Bandwidth
HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 236,8 kbps, Uplink 118 kbps;
GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;

>> Interface

Antenna: 50Ω SMA female interface *2 (MIMO), external detachable; Default is 1 antenna, option is 2 antenna for MIMO.
Serial port: Nope
Led: Power indicator, Data indicator
UIM/SIM: 1.8V/3V
USB: USB 2.0 female

>> Power

Power supply:
DC7V-27V , typical DC9V1A

Power consumption:
Current:
Idle: 30mA@9VDC
Max: 700mA@9VDC
Average:85mA@9VDC

>> Software

Device Management:
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers,Chome,Opera,Sarafi)

Minimum System Requirements:
Mobile Internet Access Subscription and Internet PC Adapter
Computer with:
Windows 8/7/Vista/XP/2000, or Mac OS, Linux
CD-ROM Drive
Network Interface Card

At command:
Support at command;
Packed with GUI software

>> Physical

Operating Temperature:
Storage Temperature: -40 ~ 85°C
Working Temperature: -30 ~ 75°C

Humidity:95% Maximum (Non-condensing)

Dimensions PCBA: 87mm*50mm*23mm
With case: 102m*70mm*23mm
PCBA size: 84mm*48mm*20mm

Weight:
150g (not including the antenna)

Color: Metal Gray-Black, OEM is available

>> Others

Warranty: 1 Year default, can extend to 5 years

Package Contents:
M300 Series wireless Router
USB Cable
Power Adapter
Antenna
Others depends on option features
