Home >Products Catalog > pressure transmitter > Good Quality Differential Pressure Transmitter/Pressure Transmitter

Good Quality Differential Pressure Transmitter/Pressure Transmitter

Supply Ability:	500 Set(s) per Month
Shipping:	delivery time:5-7days shipment terms: Fedex, DHL. UPS
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Carton or wooden

Quick Details

Brand Name: auto
Output: 4-20ma
Accuracy: 0.1
Power Supply: 24VDC
Range: 0-10MPA
Medium: gas, steam, liquid
Current Output: 4~20mA
Power Supply: 24V DC
Max. Pressure: 40MPa
Working Temperature: -25 to +240 C
Digital Signal: LCD
Electric Interface: 1/2NPT or M20*1.5
Process Connection: 1/4NPT or 1/2NPT
Flange Joint: M20*1.5" External Thread 1/2-14NPT Taper Pipe Th
Intrinsically Safe: exiallct6

Specifications

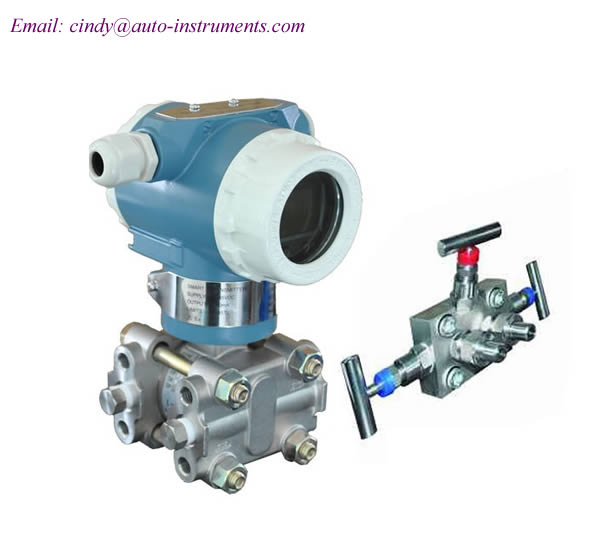

Differential pressure transmitter

Introduction

Differential pressure transmitter is a measure of the difference between the two ends of the
Transmitter,output standard signal (eg 4 ~ 20mA, 1-5V) differential pressure transmitter and
Pressure transmitter with the general difference is that they are there are two pressure ports,
the differential pressure transmitter is generally divided into positive and negative terminal
End, under normal circumstances, Positive pressure side pressure should be greater than
the negative pressure section.

Features:

1. Process Fluid: Liquid, Gas, Vapor

2. Applicat ion: Differential Pressure, Gauge Pressure,Absolute Pressure

3. Working Temperature: -25 to +95C

4. Current Output: 4 - 20 mA 2 wires Har t Protoco

5. Power Supply: 24VDC

6. Ambient Temperature: -25 to +240

7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT

8. Electrical Connections: 1/2" NPT or M20*1.5

9. Enclosure:IP65

10.Intrinsically Safe: ia II C T6

11.Explosion proof: d II B T5

Name	Specification code	Explanation
3051GP		Pressure Transmitter
	3	(0.013-0.075)bar
	4	(0.062-0.374)bar
	5	(0.31-1.868)bar
	6	(1.17-6.9)bar
	7	(3.45-20.68)bar
	8	(11.7-68.90)bar
	9	(34.8-206.8)bar
	0	(68.9-413.7)bar
Output Signal	E	Analog type 4-20mA
	S	4-20mA, HART Protocol Digital Communication
Wetted Parts Material		Flange/Joint	Exhaust/Drain Valve	Diaphragm
	22	Stainless Steel	Stainless Steel	316L Stainless Steel
	23			Hastelloy C-276
	24			Tantalum
Mounting Bracket	B1	Tube-type Curved Bracket (Tube OD50~60)
	B2	Board- type Curved Bracket
	B3	Tube-type Straight Bracket (Tube OD50~60)
Display Header (optional)	M2	Linear Pointer Header (0~100% scale)
	M3	Square Root Instruction Header(0~100% scale)
	M4	LCD Header(0~100% linear display)
Process Flange	D	the liquid discharge / exhaust at the back
	D1	the liquid discharge / exhaust at the side top
	D2	the liquid discharge / exhaust at the side bottom
Flange Joint	J	" D-shaped" Joint with " M20*1.5" External thread
	N	Joint with 1/2-14NPT taper pipe thread wAist type
