Travel switch used in high temperature environment

FOB Price:	25.00 - 58.00 USD/Carton
Supply Ability:	1,000 Carton/Cartons per Week
Shipping:	nternational Express,Ocean Shipping
Payment Terms:	L/C, D/A, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Africa, Eastern Asia
Place of Origin:	Zhejiang in China
Packaging Details:	Carton packaging

Quick Details

Max. Voltage: 380
Max. Current: 5A
Operating Temperature: -10+350
Protection Level: IP65
Model Number: NHY1
Brand Name: Yongou Electric
Shape structure: Metal aluminum alloy
contact form: 1C
Contact resistance: Under 15m Ohm(initial)
Action frequency: Mechanically:120 times/minute Electically:30 times/Minute
Operation speed: 1mm to 2m/S
Insulation resistance: 100mOhm above (at 500VDC)
Bearing voltage: Non-contact end:1,000VAC,50/60Hz for one minute
Vibration: Action:10 to 55Hz,1.5mm pairs swing
Hitting: Machine:1,000m/Sec2(about 100G,S)
Application range: Steel mills, cement plants, power plants, chemical plants, textile and other high temperature equipment

Specifications

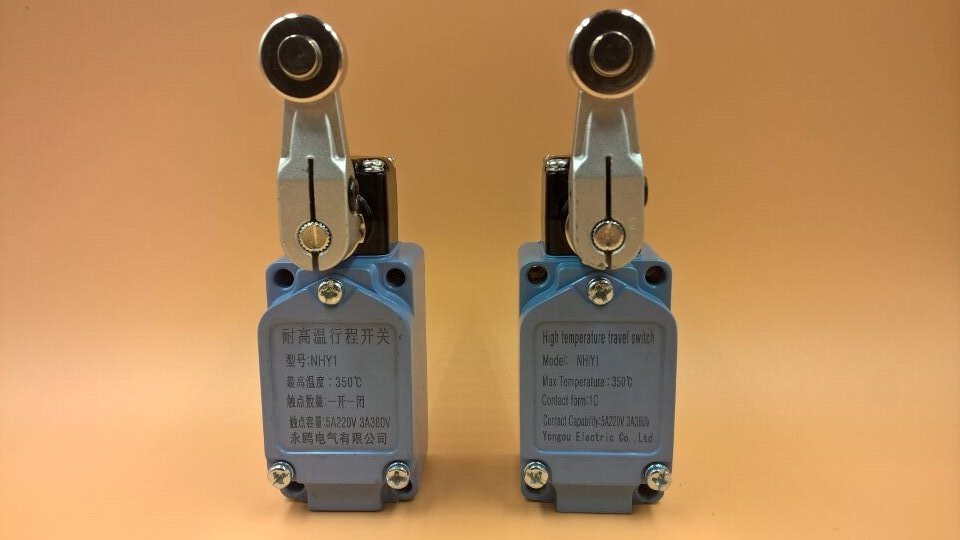

NHY1 high temperature travel switch details:

High temperature travel switch, high temperature position switch (also known as high temperature limit switch), is a commonly used small current main electrical appliances. High temperature travel switch is mainly used for AC 50HZ/60HZ, 380V, DC 220V and the following high temperature environment of the electrical line, for the movement mechanism of the stroke control, motion direction or speed of the transformation, automatic control of machine tools, motion control and control of movement mechanism or program. The contact action is realized by the collision of the moving parts of the production machinery to realize the control circuit and achieve the control purpose.

High temperature limit switch NHY1 handle roller arm type, through the collision trip handle roller arm, roller arm to the left or to the right swing, so as to make the switch contact action and realize the switching circuit. High temperature travel switch for metal aluminum alloy material, the internal use of high temperature resistant material cast into the full closed contact switch,a group of normally open a group of normally closed maximum allowable current 220V 5A/AC (other voltage acceptance), contact after special treatment can be used in high temperature environment for long time, and not oxidation or pollution, in order to improve the product in high temperature environment, especially in high temperature travel switch internal coating, increase its high temperature protection performance. NH series high temperature travel switch highest temperature is divided into 4 grades, 150 degrees, 250 degrees, 350 degrees, 550 degrees (ceramic), which can be divided into roller arm type, adjustable rod type, pressure plunger and roller pressure column type, etc. more than 10 kinds of specifications, can meet the requirements of different occasions. Widely used in electric power, chemical, petroleum, textile, steel and other industries.

Characteristics

Operation speed	1mm to 2m/S (NHY1)
Action frequency	Mechanically:120 times/minute Electically:30 times/Minute
Contact resistance	Under 15mΩ(initial)
Insulation resistance	100mΩ above (at 500VDC)
Bearing voltage	Non-contact end:1,000VAC,50/60Hz for one minute Current parts and noncurrent parts and end and connect position :2,200VAC,50/60Hz for one minute
Vibration	Action:10 to 55Hz,1.5mm pairs swing
Hitting	Machine:1,000m/Sec2(about 100G,S) Action:300m/Sec2(about 30G,S)
Ambient temperature	Use:-10 to +350℃
Humidity	Max 95% RH
Serve life	Mechanically:15,000,000 times above(at rated ot) Electrically:500,000 times above
Weight	About 330g
Protection structure	IEC specification:IP65

Action characteristics

Models	NHY1	NHD2	NHA5	NHY2	NHL1	NHY3	NHD1	NHD2-1	NHD3
OF Max	1360g	2720g	150g	1360g	142g	1200g	2720g	2720g	2720g
RF Min	227g	910g	-	227g	28g	-	910g	910g	910g
PT Max	20°	1.7mm	28mm	20°	20°	55°	1.7mm	1.7mm	1.7mm
OT Min	30°	5.6mm	-	30°	30°	35°	6.4mm	5.6mm	5.6mm
MD Max	12°	1mm	-	12°	12°	-	1mm	1mm	1mm
TF Max	2720g	-	-	2720g	200g	-	-	2720g	2720g
TT Min	50°	6.5±0.8mm	-	50°	50°	OP:90±10°	OP:34±2.8mm	6.5±0.8mm	9±0.8mm

Rated number

Rated voltage	Nonelectrical carry				Electrical carry
	Resistance oarry		Bulb carry		Electrical carry		Motor carry
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 480VAC 600VAC	10 5 3 1		3 2 1.5 1	1.5 1 0.8 0.5	10 5 3 1.5		5 3 1.5 1	2.0 1 0.8 0.5
8VDC 14VDC 30VDC 125VDC 250VDC	10 10 6 0.8 0.4		6 6 4 0.2 0.1	3 3 3 0.2 0.1	10 10 6 0.8 0.4		6 6 4 0.2 0.1

Remarks:1.Electrical carry:power factor=0.4.time constant= 7 msec.
2.The Bulb carry current is 10 times as than in stable condition. Motor
carry current is 6 times as than in stable condition.

Characteristics of high temperature travel switch:
Double circuit limit switch, a wide range of uses
Solid cast aluminum alloy housing
High mechanical strength
Oil resistant, waterproof and anti pressure structure
Because it is equipped with a position indicator plate, it is easy to maintain.
Actuator variety, easy to use
Inside contact seat has double reed, long mechanical life
Open hole size of high temperature travel switch:

 Upper and lower hole distance:58.7 ±0.2      Left and right  hole distance:30.2±0.2

 Problems in the use of high temperature resistant travel switch:  (1) in the installation of high temperature switch, to check whether the object in the travel in place of the collision of the travel switch head, the middle or other parts of the trip switch can not be collision. (2) in the installation or in were examined for resistance to high temperature trip switch, to put it firmly fixed, hand toggle bit resistant to high temperature limit switch head, listen carefully, check whether there is the sound of "bang", if not, please open resistance to high temperature limit switch, adjusting connects the inching switch and the action of an axis of the screw.
