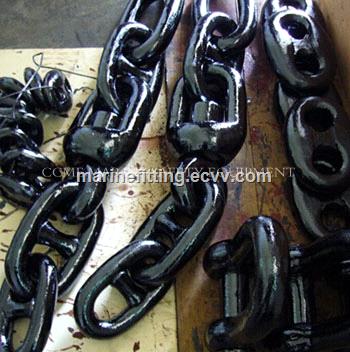

Marine Black stud and studless link R3 R4 offshore mooring anchor chain

FOB Price:	1.00 - 10.00 USD/Piece
Supply Ability:	10,000 Meter per Month
Shipping:	by sea shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Standard type

Quick Details

Part: offshore mooring anchor chain
Model Number: CCME
Brand Name: CCME
Grade: U2 U3 G80,G70,G43,G30 and etc
Size: 12.5mm~140mm
Type: stud link, studless link,Mooring chians

Specifications

Marine Ship Anchor Chain:

1. Standard length is 27.5m per piece,we also can produce and cut anchor chains according to your requirement .

2. Material: alloy steel, generally including CM390, SM490, CM690, or according to your requirement

3. Grade :U2&U3 ship anchor chains

4. Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.

5. The tension breaking load conforms to National Standard.

6. Studless anchor chains. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration

7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating treatment (8) Blind bolts (9) polishing (10) painting or galvanized

Technical parameter of Ship Anchor Chain:

Ship anchor chain Size(6×3.6D) Proof Load Weight
Diameter D(φ)		Size		U1 ship anchor chain		U2 ship anchor chain		U3 ship anchor chain		Weight
Diameter D(φ)		Outside length L	Outside width B	Proof load	Breaking load	Proof load	Breaking load	Proof load	Breaking load	27.5M
Inch	mm	mm	mm	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98.00
9/16	14	84	50.4	58	82	82	116	116	165	119.00
5/8	16	96	57.6	76	107	107	150	150	216	156.00
11/16	17.5	105	63	89	127	127	179	179	256	186.00
3/4	19	114	68.4	105	150	150	211	211	301	230.00
13/16	20.5	123	73.8	123	175	175	244	244	349	260.00
7/8	22	132	79.2	140	200	200	280	280	401	300.00
15/16	24	144	86.4	167	237	237	332	332	476	370.00
1-1/16	26	156	93.6	194	278	278	389	389	556	431.00
1-1/8	28	168	100.8	225	321	321	449	449	642	496.00
1-3/16	30	180	108	257	368	368	514	514	735	564.00
1-1/4	32	192	115.2	291	417	417	583	583	833	635.00
1-5/16	34	204	122.4	328	468	468	655	655	937	712.00
1-7/16	36	216	129.6	366	523	523	732	732	1050	800.00
1-1/2	38	228	136.8	406	581	581	812	812	1160	887.00
1-9/16	40	240	144	448	640	640	896	896	1280	1032.00
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084.00
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197.00
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310.00
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438.00
2	50	300	180	686	981	981	1370	1370	1960	1546.00
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661.00
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791.00
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926.00
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086.00
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249.00
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361.00
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516.00
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676.00
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885.00
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690	3010
