China Century Trade Import & Export Co., Ltd.
China Manufacturer with main products: Floating Docks, Rubber Fenders, Marine Propellers, Marine Pumps, Marine Outfitting Equipment, Valves and Pipes, Thrusters, Life Saving... |

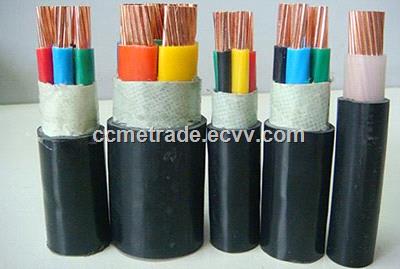

EPR Insulated CPE sheathed Marine Cable
| FOB Price: | 1.00 - 6.00 USD/Meter |
|---|---|
| Supply Ability: | 50,000 Meter/Meters per Month |
| Shipping: | by sea shipping |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Standard type |
Quick Details
- Jacket: Rubber
- Conductor Material: Copper
- Application: Marine
- Type: Low Voltage
- Insulation Material: CPE
- Model Number: CCME
- Brand Name: CCME
- Insulation: PVC XLPE PE EPR PUR NBR
- Conductor: Copper or tinned copper
Specifications
NR/SBR insulated marine power cable spec.
CXF(CF),CXF80(CF32),CXF90(CF31),CXF92,CXV,CXV92,CXFR
Production Standard
JB/T8140.1-1995,IEC
Part of product main technical parameter
|
Core no. x Nominal sectional area (mm2) |
Piece×Nominal diameter of single wire (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Average outer dia. (mm) |
Min insulation resistance at 20°C Ω/km |
|
|
Min. |
Max. |
|||||
|
3*1 |
32/0.20 |
1.0 |
1.1 |
11.0 |
13.0 |
1350 |
|
3*1.5 |
30/0.25 |
1.0 |
1.2 |
11.8 |
14.0 |
1210 |
|
3*2.5 |
49/0.25 |
1.0 |
1.2 |
12.7 |
15.0 |
1031 |
|
3*4 |
56/0.30 |
1.0 |
1.2 |
13.8 |
16.0 |
889 |
|
3*6 |
84/0.30 |
1.0 |
1.3 |
16.6 |
19.5 |
660 |
|
3*10 |
84/0.40 |
1.0 |
1.3 |
19.3 |
22.0 |
523 |
|
3*16 |
126/0.40 |
1.0 |
1.4 |
21.7 |
25.5 |
448 |
|
3*25 |
196/0.40 |
1.2 |
1.6 |
26.6 |
30.0 |
425 |
|
3*35 |
276/0.40 |
1.2 |
1.6 |
30.4 |
33.5 |
356 |
|
3*50 |
396/0.40 |
1.4 |
1.8 |
35.3 |
39.0 |
353 |
|
3*70 |
360/0.50 |
1.6 |
2.0 |
41.3 |
45.5 |
339 |
|
3*95 |
475/0.50 |
1.6 |
2.1 |
45.1 |
48.5 |
305 |
|
3*120 |
608/0.50 |
1.6 |
2.2 |
49.1 |
53.0 |
276 |
|
3*150 |
756/0.50 |
1.8 |
2.4 |
56.7 |
60.5 |
265 |
|
3*185 |
975/0.50 |
2.0 |
2.5 |
60.6 |
64.5 |
276 |
